Datasheet FDA901 (STMicroelectronics) - 7
| Manufacturer | STMicroelectronics |
| Description | 4 x 50 W class-D digital input power amplifier with load current monitoring and low voltage operation |
| Pages / Page | 17 / 7 — FDA901. Electrical specifications. 2.1. Absolute maximum ratings. Table … |
| File Format / Size | PDF / 311 Kb |
| Document Language | English |
FDA901. Electrical specifications. 2.1. Absolute maximum ratings. Table 2. Absolute maximum ratings. Symbol. Parameter. Value. Unit. 2.2
Model Line for this Datasheet
Text Version of Document
link to page 7 link to page 7

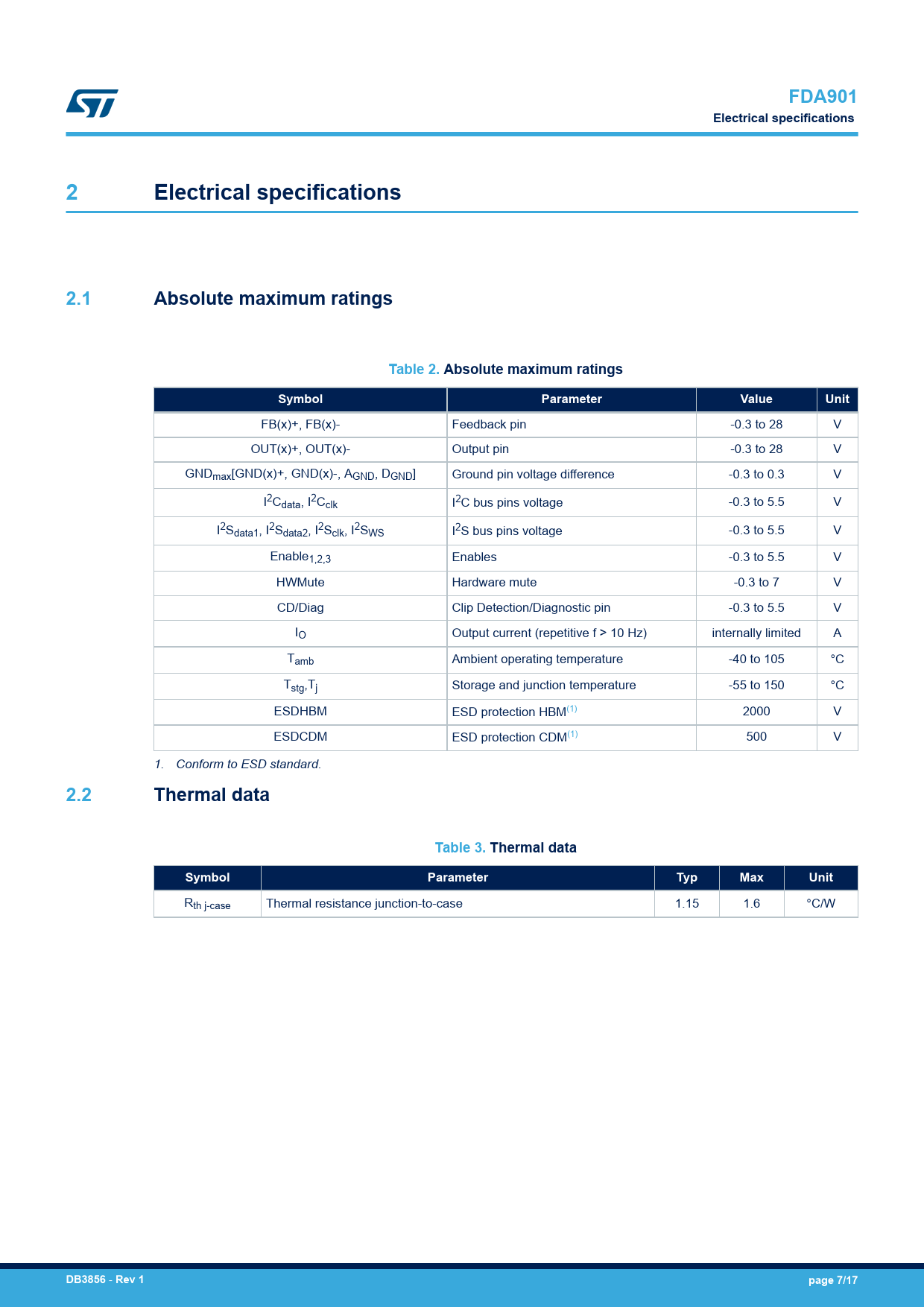

FDA901 Electrical specifications 2 Electrical specifications 2.1 Absolute maximum ratings Table 2. Absolute maximum ratings Symbol Parameter Value Unit
FB(x)+, FB(x)- Feedback pin -0.3 to 28 V OUT(x)+, OUT(x)- Output pin -0.3 to 28 V GNDmax[GND(x)+, GND(x)-, AGND, DGND] Ground pin voltage difference -0.3 to 0.3 V I2Cdata, I2Cclk I2C bus pins voltage -0.3 to 5.5 V I2Sdata1, I2Sdata2, I2Sclk, I2SWS I2S bus pins voltage -0.3 to 5.5 V Enable1,2,3 Enables -0.3 to 5.5 V HWMute Hardware mute -0.3 to 7 V CD/Diag Clip Detection/Diagnostic pin -0.3 to 5.5 V IO Output current (repetitive f > 10 Hz) internally limited A Tamb Ambient operating temperature -40 to 105 °C Tstg,Tj Storage and junction temperature -55 to 150 °C ESDHBM ESD protection HBM(1) 2000 V ESDCDM ESD protection CDM(1) 500 V 1. Conform to ESD standard.
2.2 Thermal data Table 3. Thermal data Symbol Parameter Typ Max Unit
Rth j-case Thermal resistance junction-to-case 1.15 1.6 °C/W
DB3856
-
Rev 1 page 7/17
Document Outline 1 Block diagram and pins description 1.1 Block diagram 1.2 Pins description 2 Electrical specifications 2.1 Absolute maximum ratings 2.2 Thermal data 3 General information 3.1 New feedback topology 3.2 LC filter design 3.3 Load possibilities 4 Package information 4.1 LQFP64 (10x10x1.4 mm exp. pad up) package information 4.2 LQFP64 (10x10x1.4 mm exp. pad up) marking information Revision history
FDA901 Electrical specifications 2 Electrical specifications 2.1 Absolute maximum ratings Table 2. Absolute maximum ratings Symbol Parameter Value Unit
FB(x)+, FB(x)- Feedback pin -0.3 to 28 V OUT(x)+, OUT(x)- Output pin -0.3 to 28 V GNDmax[GND(x)+, GND(x)-, AGND, DGND] Ground pin voltage difference -0.3 to 0.3 V I2Cdata, I2Cclk I2C bus pins voltage -0.3 to 5.5 V I2Sdata1, I2Sdata2, I2Sclk, I2SWS I2S bus pins voltage -0.3 to 5.5 V Enable1,2,3 Enables -0.3 to 5.5 V HWMute Hardware mute -0.3 to 7 V CD/Diag Clip Detection/Diagnostic pin -0.3 to 5.5 V IO Output current (repetitive f > 10 Hz) internally limited A Tamb Ambient operating temperature -40 to 105 °C Tstg,Tj Storage and junction temperature -55 to 150 °C ESDHBM ESD protection HBM(1) 2000 V ESDCDM ESD protection CDM(1) 500 V 1. Conform to ESD standard.
2.2 Thermal data Table 3. Thermal data Symbol Parameter Typ Max Unit
Rth j-case Thermal resistance junction-to-case 1.15 1.6 °C/W
DB3856
-
Rev 1 page 7/17
