Datasheet IR3888 OptiMOS IPOL (Infineon) - 4
| Manufacturer | Infineon |
| Description | 25 A single-voltage synchronous Buck regulator |
| Pages / Page | 49 / 4 — IR 888 OptiMOS™ IPOL. 25 A single-voltage synchronous Buck regulator. … |
| Revision | 01_00 |
| File Format / Size | PDF / 2.7 Mb |
| Document Language | English |
IR 888 OptiMOS™ IPOL. 25 A single-voltage synchronous Buck regulator. Ordering information. Ordering Information
Model Line for this Datasheet
Text Version of Document
IR 888 OptiMOS™ IPOL 25 A single-voltage synchronous Buck regulator Ordering information 1 Ordering information 1. Ordering Information Base Part Number Package Type Standard Pack Form and Qty Orderable Part Number
IR3888M QFN 6 mm x 5 mm Tape and Reel 5000 IR3888MTRPBF IR3888 PBF Lead Free TR Tape and Reel M Package Type NC EN BOOT PVIN PVIN PVIN 22 21 20 19 18 17 FB 1 SS/ Latch 2 VSENM 3 16 SW AGND AGND 4 23 15 SW Ton/ Mode 5 14 SW ILIM 6 PGOOD 7 8 9 10 11 12 13 VSNS VIN VCC/ LDO PGND PGND PGND

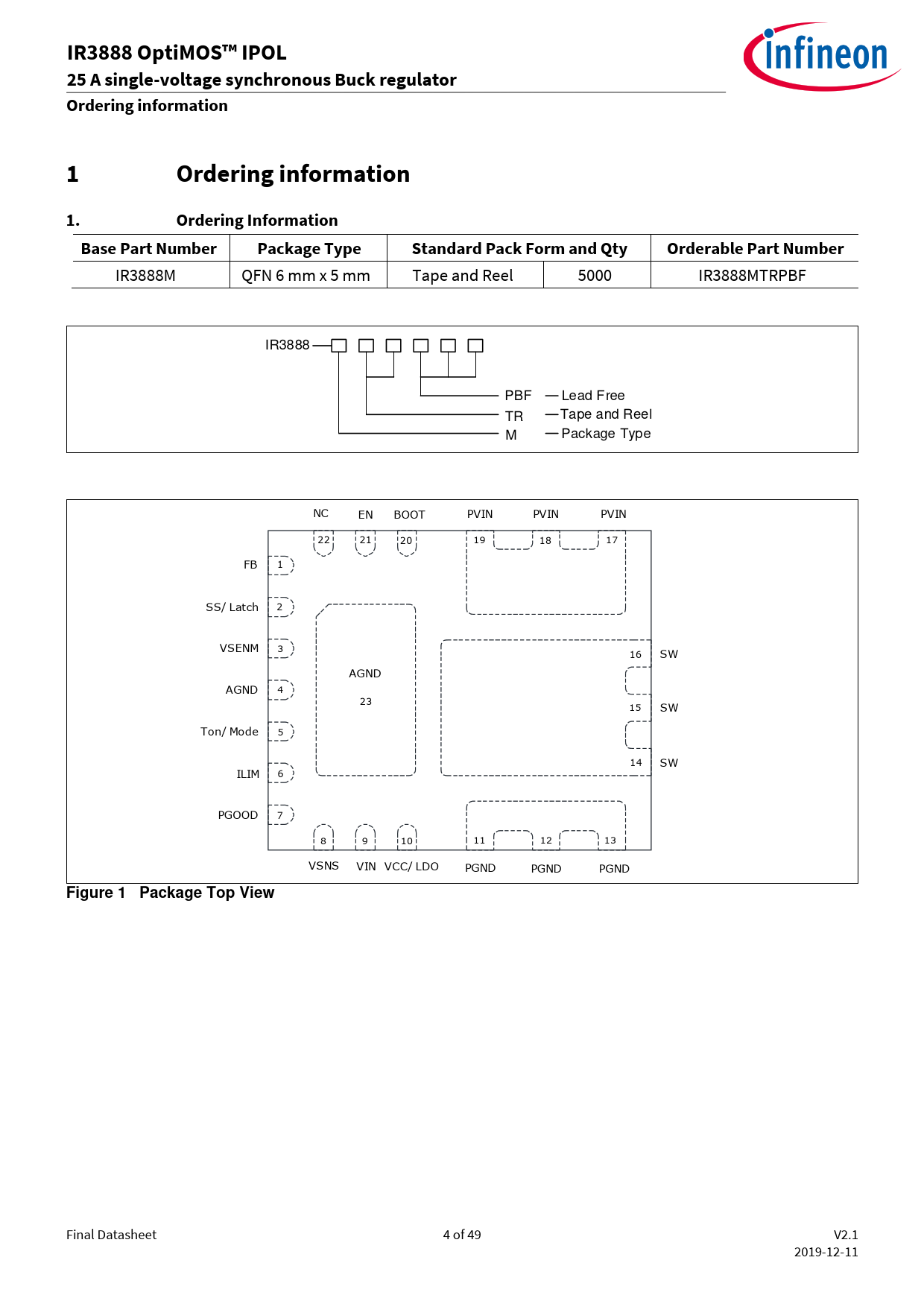

Figure 1 Package Top View
