Datasheet IR3888 OptiMOS IPOL (Infineon) - 10
| Manufacturer | Infineon |
| Description | 25 A single-voltage synchronous Buck regulator |
| Pages / Page | 49 / 10 — IR 888 OptiMOS™ IPOL. 25 A single-voltage synchronous Buck regulator. … |
| Revision | 01_00 |
| File Format / Size | PDF / 2.7 Mb |
| Document Language | English |
IR 888 OptiMOS™ IPOL. 25 A single-voltage synchronous Buck regulator. Thermal Characteristics. 6.1. Description. Symbol. Values
Model Line for this Datasheet
Text Version of Document
link to page 10 link to page 10

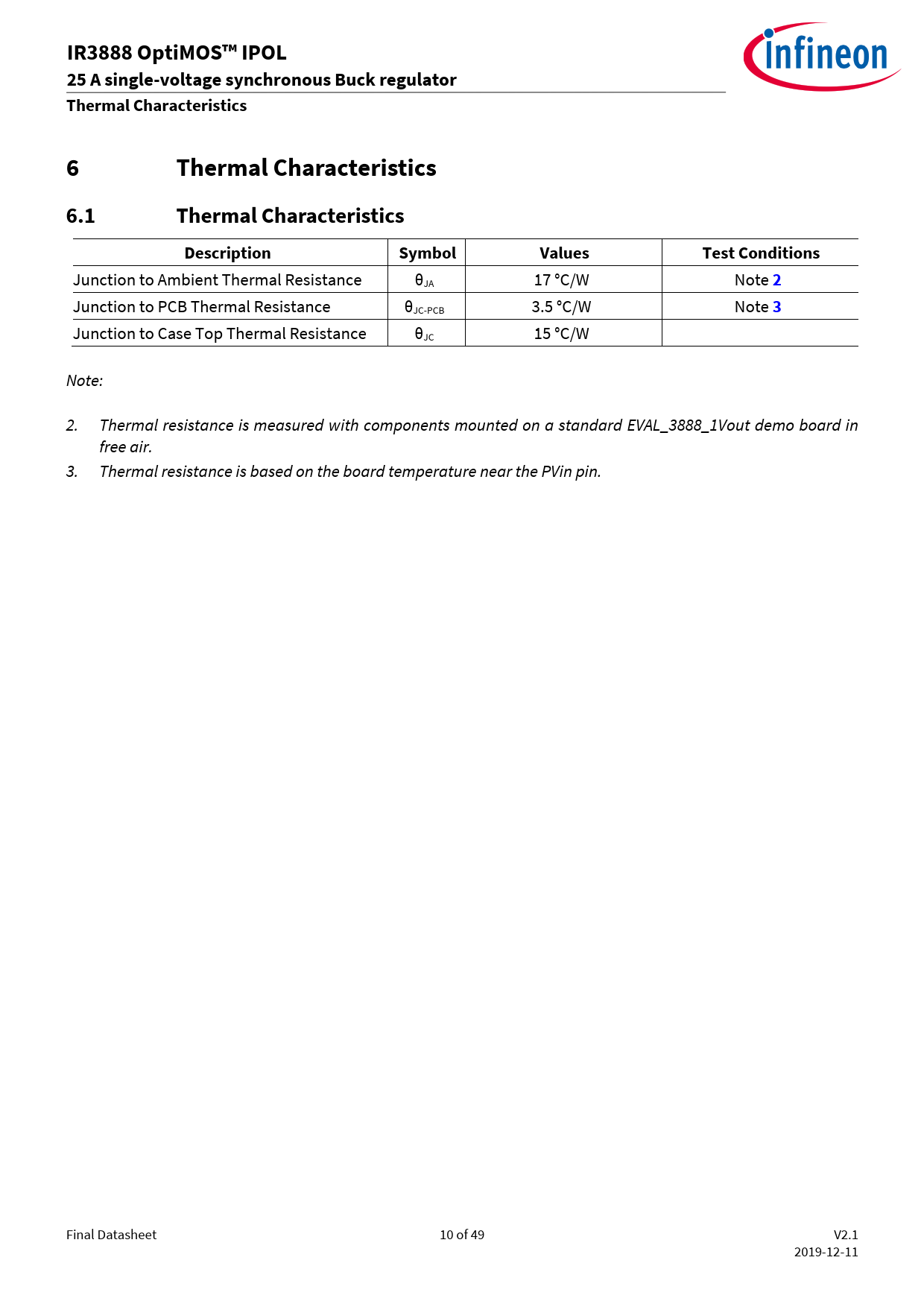

IR 888 OptiMOS™ IPOL 25 A single-voltage synchronous Buck regulator Thermal Characteristics 6 Thermal Characteristics 6.1 Thermal Characteristics Description Symbol Values Test Conditions
Junction to Ambient Thermal Resistance θJA 17 °C/W Note
2
Junction to PCB Thermal Resistance θJC-PCB 3.5 °C/W Note
3
Junction to Case Top Thermal Resistance θJC 15 °C/W Note: 2. Thermal resistance is measured with components mounted on a standard EVAL_3888_1Vout demo board in free air. 3. Thermal resistance is based on the board temperature near the PVin pin. Final Datasheet 10 of 49 V2.1 2019-12-11 Document Outline Revision History Trademarks Disclaimer
