Datasheet IR3888 OptiMOS IPOL (Infineon) - 9
| Manufacturer | Infineon |
| Description | 25 A single-voltage synchronous Buck regulator |
| Pages / Page | 49 / 9 — IR 888 OptiMOS™ IPOL. 25 A single-voltage synchronous Buck regulator. … |
| Revision | 01_00 |
| File Format / Size | PDF / 2.7 Mb |
| Document Language | English |
IR 888 OptiMOS™ IPOL. 25 A single-voltage synchronous Buck regulator. Absolute maximum ratings. Description. Min. Max. Unit
Model Line for this Datasheet
Text Version of Document
link to page 9 link to page 9 link to page 9 link to page 9 link to page 9

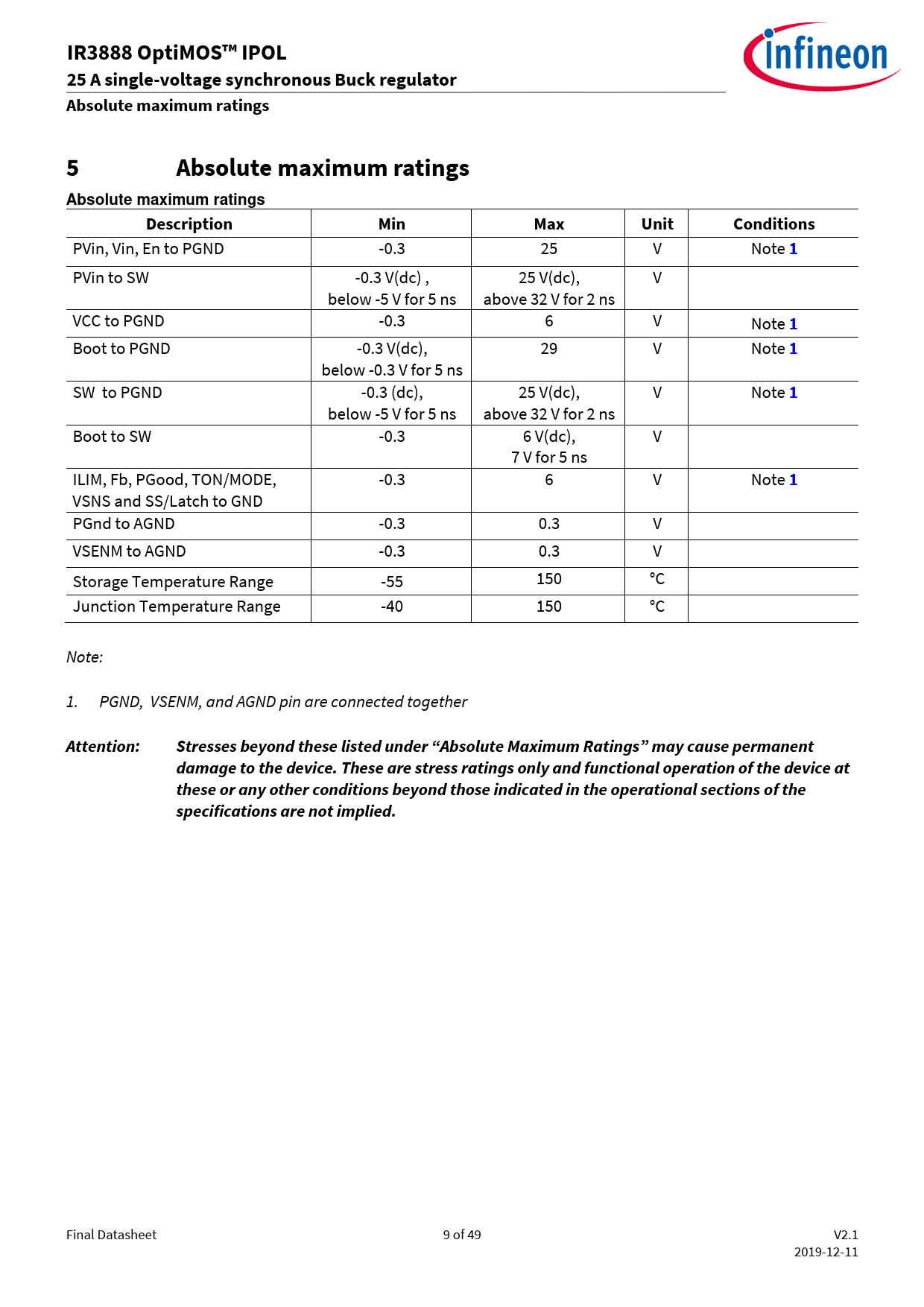

IR 888 OptiMOS™ IPOL 25 A single-voltage synchronous Buck regulator Absolute maximum ratings 5 Absolute maximum ratings Absolute maximum ratings Description Min Max Unit Conditions
PVin, Vin, En to PGND -0.3 25 V Note
1
PVin to SW -0.3 V(dc) , 25 V(dc), V below -5 V for 5 ns above 32 V for 2 ns VCC to PGND -0.3 6 V Note
1
Boot to PGND -0.3 V(dc), 29 V Note
1
below -0.3 V for 5 ns SW to PGND -0.3 (dc), 25 V(dc), V Note
1
below -5 V for 5 ns above 32 V for 2 ns Boot to SW -0.3 6 V(dc), V 7 V for 5 ns ILIM, Fb, PGood, TON/MODE, -0.3 6 V Note
1
VSNS and SS/Latch to GND PGnd to AGND -0.3 0.3 V VSENM to AGND -0.3 0.3 V Storage Temperature Range -55 150 °C Junction Temperature Range -40 150 °C Note: 1. PGND, VSENM, and AGND pin are connected together
Attention: Stresses beyond these listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications are not implied.
Final Datasheet 9 of 49 V2.1 2019-12-11 Document Outline Revision History Trademarks Disclaimer
