Nexperia. PESD2V8R1BSF. Ultra low capacitance bidirectional ESD protection diode. 11. Package outline
Model Line for this Datasheet
Text Version of Document
Nexperia PESD2V8R1BSF Ultra low capacitance bidirectional ESD protection diode 11. Package outline Leadless ultra small package; 2 terminals; body 0.6 x 0.3 x 0.3 mm SOD962-2
L 1 2 b e1 A A1 E D (1) 0 0.5 mm scale Dimensions (mm are the original dimensions) Unit A A1 b D E e1 L max 0.32 0.03 0.25 0.325 0.625 0.15 mm nom 0.4 min 0.28 0.23 0.275 0.575 0.13 Note 1. The marking bar indicates the cathode. sod962-2_po Outline References European version projection Issue date IEC JEDEC JEITA SOD962-2 13-07-12 13-07-17

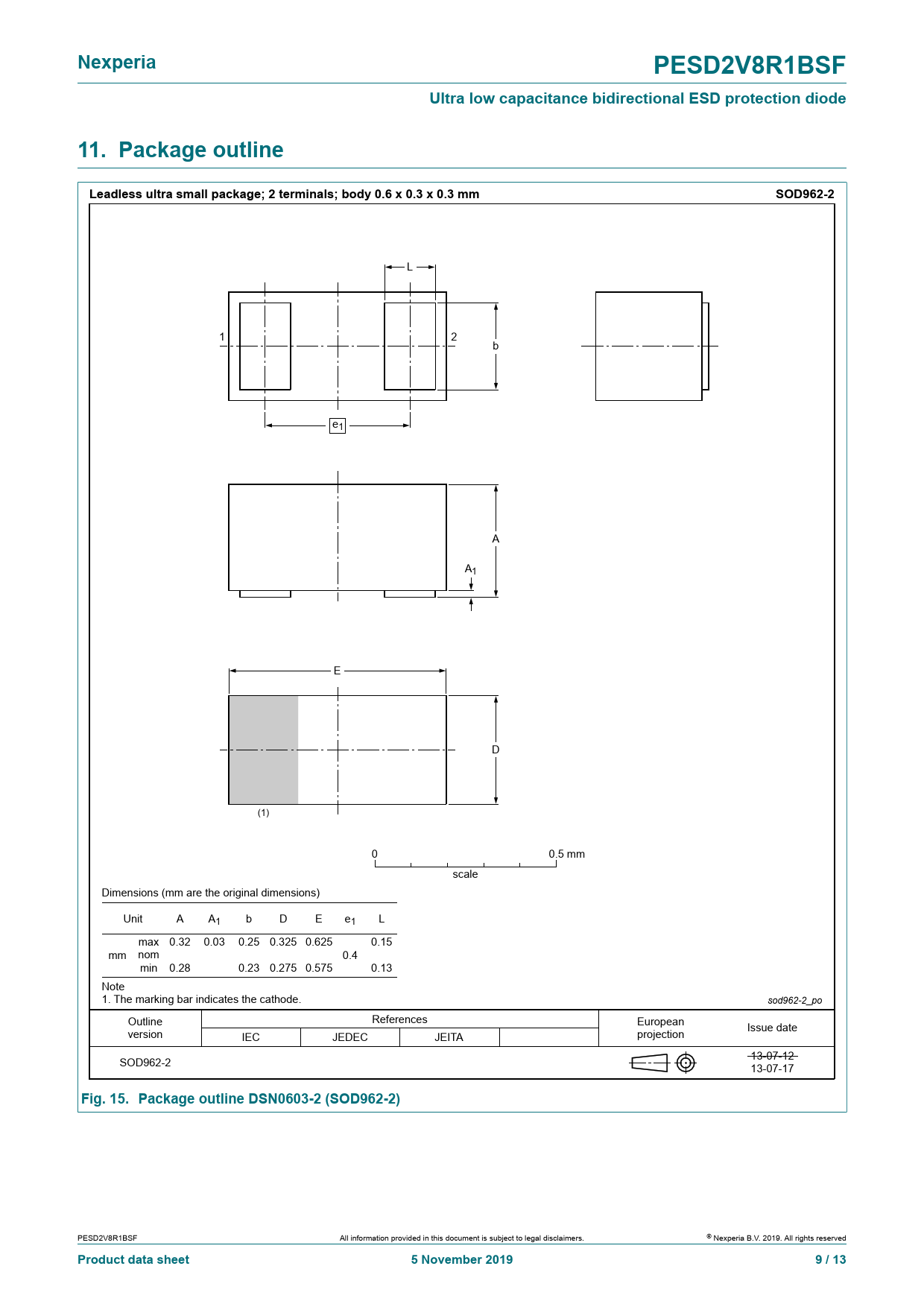

Fig. 15. Package outline DSN0603-2 (SOD962-2)
