TYPICAL PERFORMANCE CHARACTERISTICS. V+ = 3.3V, RSET = 200k and TA = 25°C unless otherwise noted
Model Line for this Datasheet
- LTC6994CDCB-1#TRMPBF LTC6994CDCB-1#TRPBF LTC6994CDCB-2#TRMPBF LTC6994CDCB-2#TRPBF LTC6994CS6-1#TRMPBF LTC6994CS6-1#TRPBF LTC6994CS6-2#TRMPBF LTC6994CS6-2#TRPBF LTC6994HDCB-1#TRMPBF LTC6994HDCB-1#TRPBF LTC6994HDCB-2#TRMPBF LTC6994HDCB-2#TRPBF LTC6994HS6-1#TRMPBF LTC6994HS6-1#TRPBF LTC6994HS6-1#WTRMPBF LTC6994HS6-1#WTRPBF LTC6994HS6-2#TRMPBF LTC6994HS6-2#TRPBF LTC6994HS6-2#WTRMPBF LTC6994HS6-2#WTRPBF LTC6994IDCB-1#TRMPBF LTC6994IDCB-1#TRPBF LTC6994IDCB-2#TRMPBF LTC6994IDCB-2#TRPBF LTC6994IS6-1#TRMPBF LTC6994IS6-1#TRPBF LTC6994IS6-1#WTRMPBF LTC6994IS6-1#WTRPBF LTC6994IS6-2#TRMPBF LTC6994IS6-2#TRPBF LTC6994IS6-2#WTRMPBF LTC6994IS6-2#WTRPBF LTC6994MPS6-1#TRMPBF LTC6994MPS6-1#TRPBF LTC6994MPS6-2#TRMPBF LTC6994MPS6-2#TRPBF
Text Version of Document
LTC6994-1/LTC6994-2

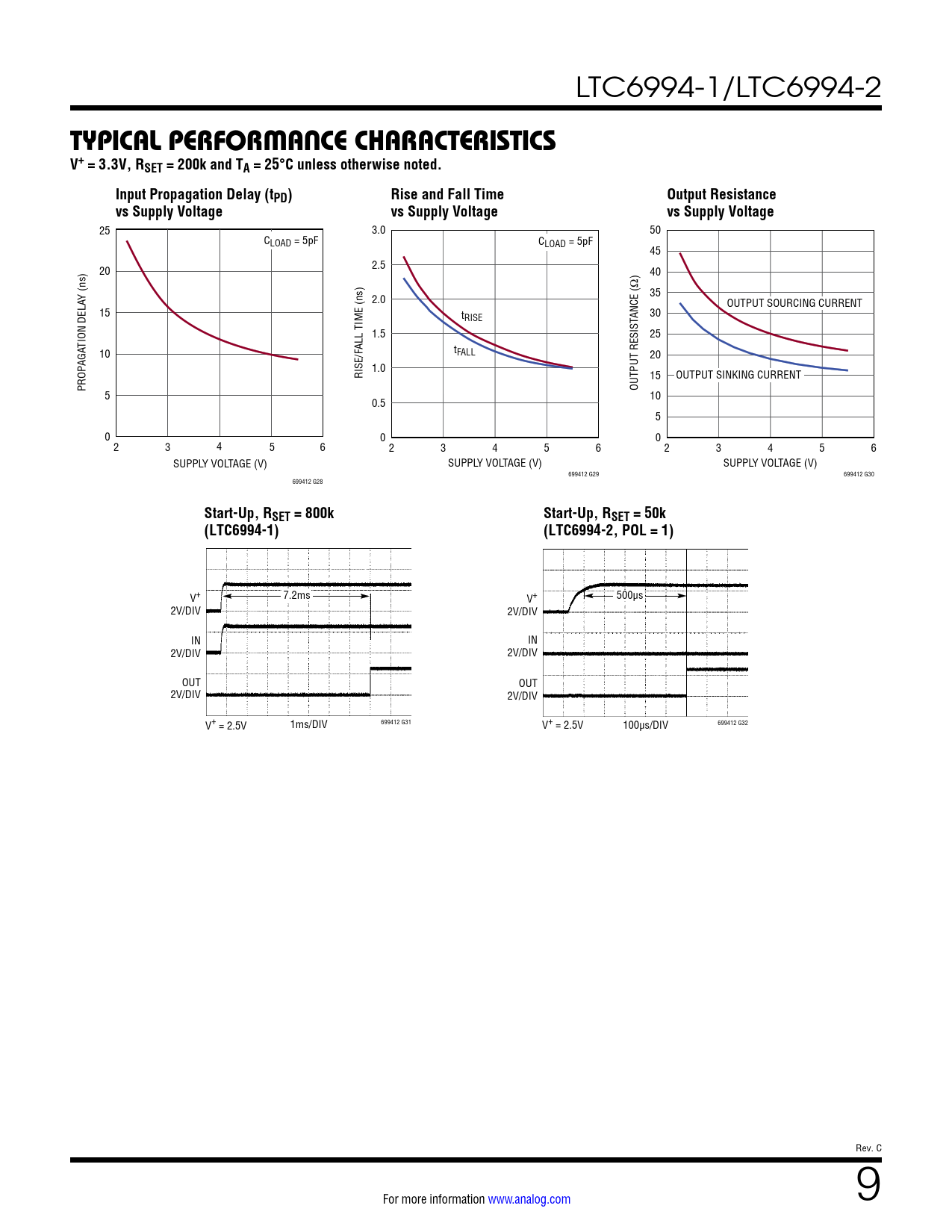

TYPICAL PERFORMANCE CHARACTERISTICS V+ = 3.3V, RSET = 200k and TA = 25°C unless otherwise noted. Input Propagation Delay (tPD) Rise and Fall Time Output Resistance vs Supply Voltage vs Supply Voltage vs Supply Voltage
