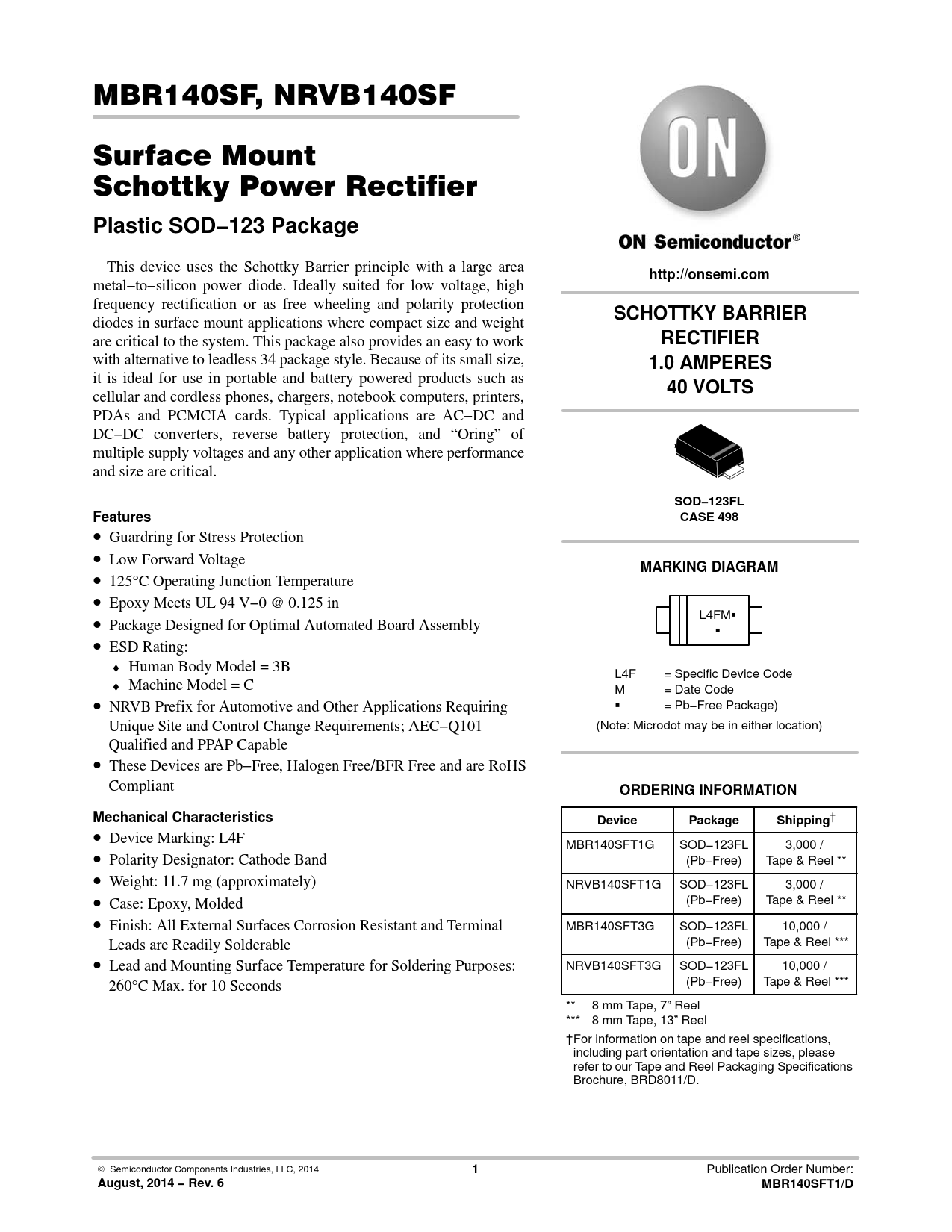

MBR140SF, NRVB140SF Surface Mount Schottky Power Rectifier
Plastic SOD−123 Package
This device uses the Schottky Barrier principle with a large area
http://onsemi.com
metal−to−silicon power diode. Ideally suited for low voltage, high frequency rectification or as free wheeling and polarity protection
SCHOTTKY BARRIER
diodes in surface mount applications where compact size and weight are critical to the system. This package also provides an easy to work
RECTIFIER
with alternative to leadless 34 package style. Because of its small size,
1.0 AMPERES
it is ideal for use in portable and battery powered products such as
40 VOLTS
cellular and cordless phones, chargers, notebook computers, printers, PDAs and PCMCIA cards. Typical applications are AC−DC and DC−DC converters, reverse battery protection, and “Oring” of multiple supply voltages and any other application where performance and size are critical.
SOD−123FL Features CASE 498
• Guardring for Stress Protection • Low Forward Voltage •
MARKING DIAGRAM
125°C Operating Junction Temperature • Epoxy Meets UL 94 V−0 @ 0.125 in • L4FMG Package Designed for Optimal Automated Board Assembly G • ESD Rating: ♦ Human Body Model = 3B L4F = Specific Device Code ♦ Machine Model = C M = Date Code • NRVB Prefix for Automotive and Other Applications Requiring G = Pb−Free Package) Unique Site and Control Change Requirements; AEC−Q101 (Note: Microdot may be in either location) Qualified and PPAP Capable • These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
ORDERING INFORMATION Mechanical Characteristics Device Package Shipping
† • Device Marking: L4F MBR140SFT1G SOD−123FL 3,000 / • Polarity Designator: Cathode Band (Pb−Free) Tape & Reel ** • Weight: 11.7 mg (approximately) NRVB140SFT1G SOD−123FL 3,000 / • Case: Epoxy, Molded (Pb−Free) Tape & Reel ** • Finish: All External Surfaces Corrosion Resistant and Terminal MBR140SFT3G SOD−123FL 10,000 / Leads are Readily Solderable (Pb−Free) Tape & Reel *** • Lead and Mounting Surface Temperature for Soldering Purposes: NRVB140SFT3G SOD−123FL 10,000 / 260°C Max. for 10 Seconds (Pb−Free) Tape & Reel *** ** 8 mm Tape, 7” Reel *** 8 mm Tape, 13” Reel †For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D. © Semiconductor Components Industries, LLC, 2014
1
Publication Order Number:
August, 2014 − Rev. 6 MBR140SFT1/D
