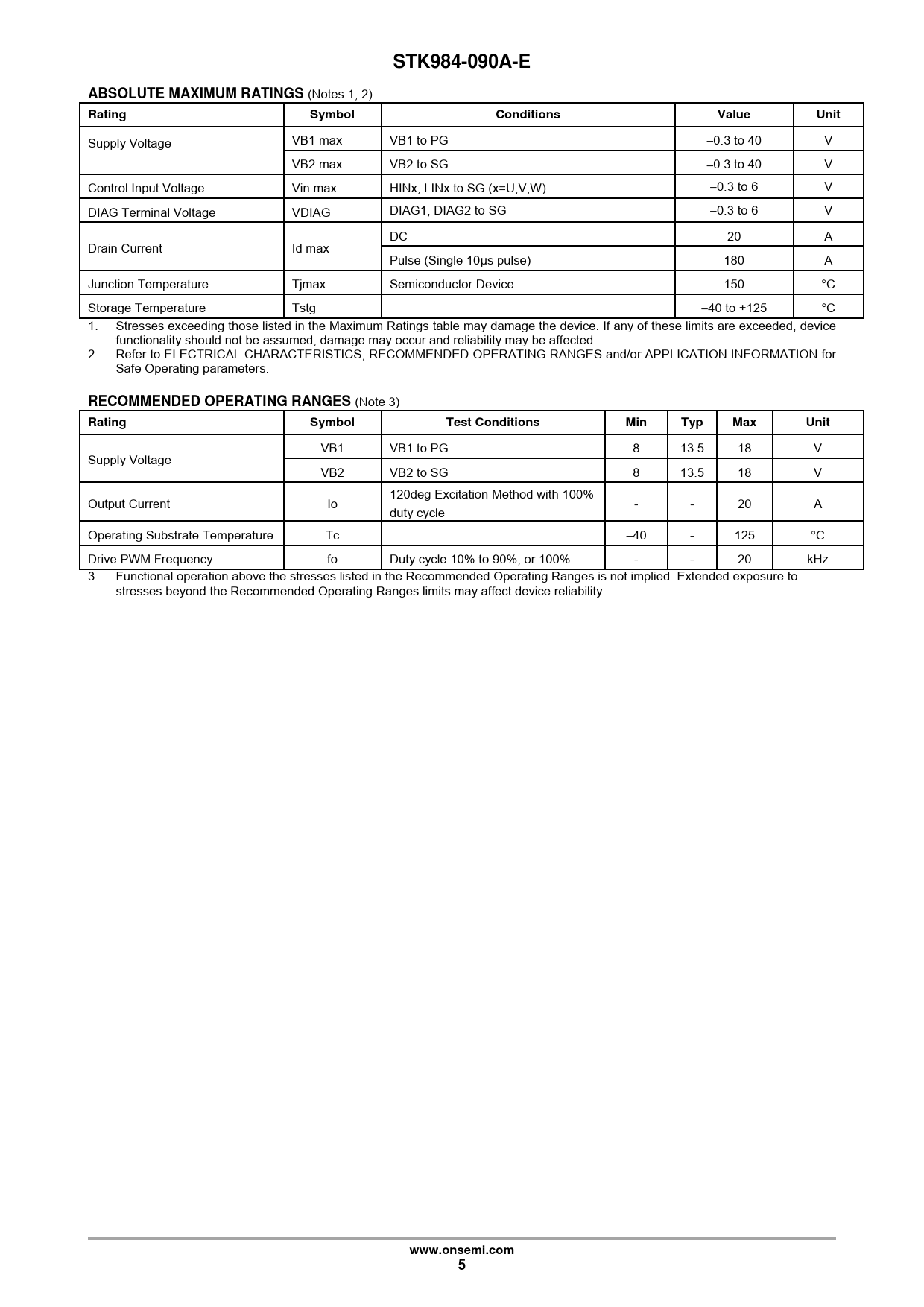

STK984-090A-E. ABSOLUTE MAXIMUM RATINGS (Notes 1, 2). Rating. Supply Voltage Symbol Conditions Value Unit
Model Line for this Datasheet
Text Version of Document
STK984-090A-E
ABSOLUTE MAXIMUM RATINGS (Notes 1, 2)
Rating
Supply Voltage Symbol Conditions Value Unit
V VB1 max VB1 to PG 0.3 to 40 VB2 max VB2 to SG 0.3 to 40 V
V Control Input Voltage Vin max HINx, LINx to SG (x=U,V,W) 0.3 to 6 DIAG Terminal Voltage VDIAG DIAG1, DIAG2 to SG 0.3 to 6 V Drain Current Id max DC 20 A Pulse (Single 10μs pulse) 180 A Junction Temperature Tjmax Semiconductor Device 150 C Storage Temperature
Tstg
40 to +125
C
1. Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device
functionality should not be assumed, damage may occur and reliability may be affected.
2. Refer to ELECTRICAL CHARACTERISTICS, RECOMMENDED OPERATING RANGES and/or APPLICATION INFORMATION for
Safe Operating parameters. RECOMMENDED OPERATING RANGES (Note 3)
Rating
Supply Voltage Symbol Test Conditions Min Typ Max Unit VB1 VB1 to PG 8 13.5 18 V VB2 VB2 to SG 8 13.5 18 V -20 A 40 -125 C Output Current Io Operating Substrate Temperature Tc 120deg Excitation Method with 100%
duty cycle Drive PWM Frequency
fo
Duty cycle 10% to 90%, or 100%
20
kHz
3. Functional operation above the stresses listed in the Recommended Operating Ranges is not implied. Extended exposure to
stresses beyond the Recommended Operating Ranges limits may affect device reliability. www.onsemi.com 5
