2-WIRE SERIAL E2PROM WITH TEMPERATURE SENSOR. S-34TS04L. Table 9. Figure 3 Write Cycle Timing. Temperature Characteristics
Model Line for this Datasheet
Text Version of Document

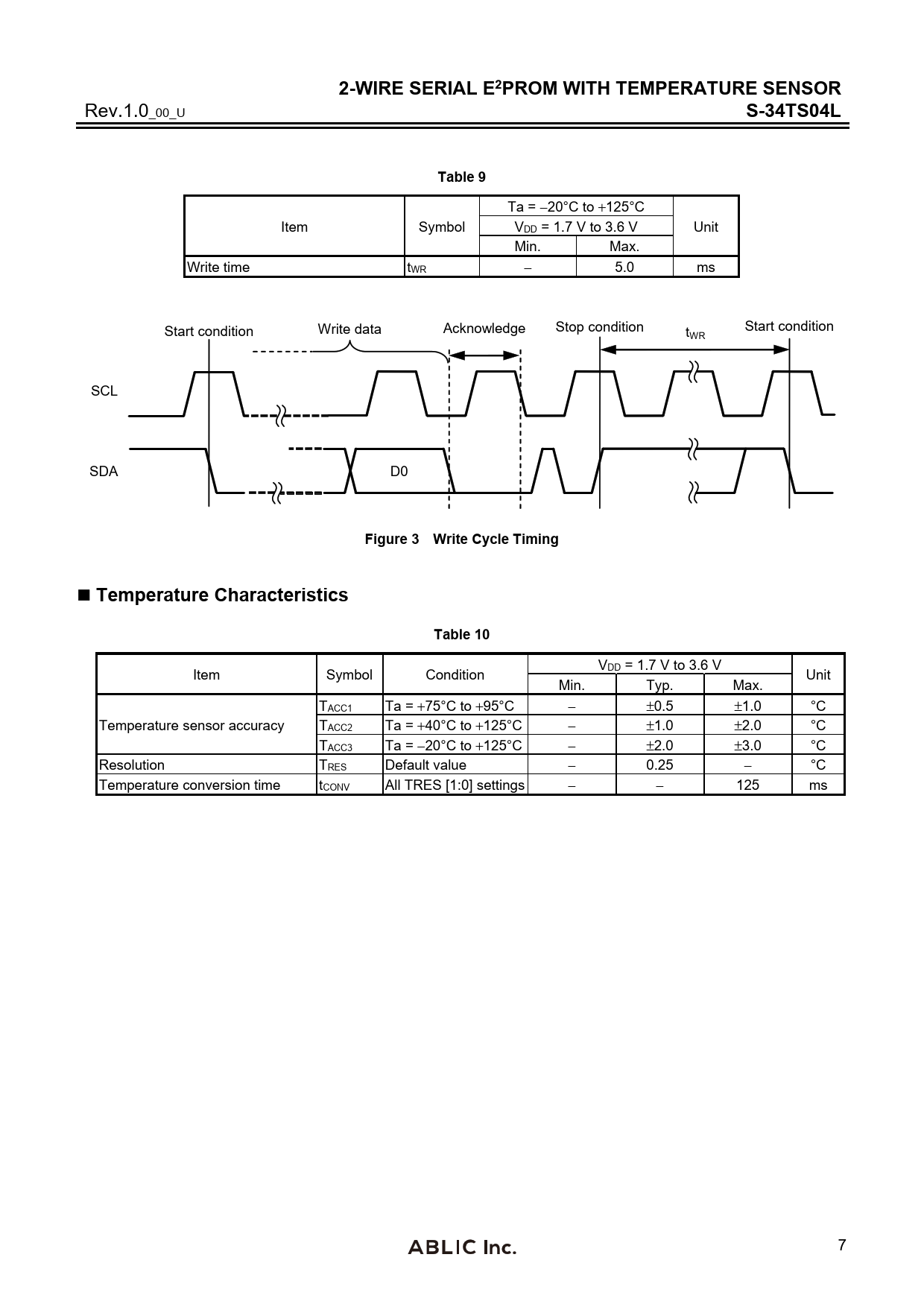

2-WIRE SERIAL E2PROM WITH TEMPERATURE SENSOR
Rev.1.0_00_U
S-34TS04L Table 9
Ta = −20°C to +125°C Item Symbol VDD = 1.7 V to 3.6 V Unit Min. Max. Write time tWR − 5.0 ms Start condition Write data Acknowledge Stop condition Start condition tWR SCL SDA D0
Figure 3 Write Cycle Timing Temperature Characteristics Table 10
V Item Symbol Condition DD = 1.7 V to 3.6 V Unit Min. Typ. Max. TACC1 Ta = +75°C to +95°C − ±0.5 ±1.0 °C Temperature sensor accuracy TACC2 Ta = +40°C to +125°C − ±1.0 ±2.0 °C TACC3 Ta = −20°C to +125°C − ±2.0 ±3.0 °C Resolution TRES Default value − 0.25 − °C Temperature conversion time tCONV All TRES [1:0] settings − − 125 ms 7
Rev.1.0_00_U
S-34TS04L Table 9
Ta = −20°C to +125°C Item Symbol VDD = 1.7 V to 3.6 V Unit Min. Max. Write time tWR − 5.0 ms Start condition Write data Acknowledge Stop condition Start condition tWR SCL SDA D0
Figure 3 Write Cycle Timing Temperature Characteristics Table 10
V Item Symbol Condition DD = 1.7 V to 3.6 V Unit Min. Typ. Max. TACC1 Ta = +75°C to +95°C − ±0.5 ±1.0 °C Temperature sensor accuracy TACC2 Ta = +40°C to +125°C − ±1.0 ±2.0 °C TACC3 Ta = −20°C to +125°C − ±2.0 ±3.0 °C Resolution TRES Default value − 0.25 − °C Temperature conversion time tCONV All TRES [1:0] settings − − 125 ms 7
