Product Brief AVR-DA (Microchip) - 10
| Manufacturer | Microchip |
| Description | AVR-DA family of microcontrollers is using the AVR CPU with hardware multiplier, running at up to 24 MHz, with 32/64/128 KB of Flash, 4/8/16 KB of SRAM, and 512 bytes of EEPROM in 28-, 32-, 48-or 64-pin packages |
| Pages / Page | 15 / 10 — AVR-DA. Pinout. 2.4. 64-Pin VQFN and TQFP. Power. Special functions. … |
| File Format / Size | PDF / 207 Kb |
| Document Language | English |
AVR-DA. Pinout. 2.4. 64-Pin VQFN and TQFP. Power. Special functions. Note:. Product Brief
Model Line for this Datasheet
Text Version of Document

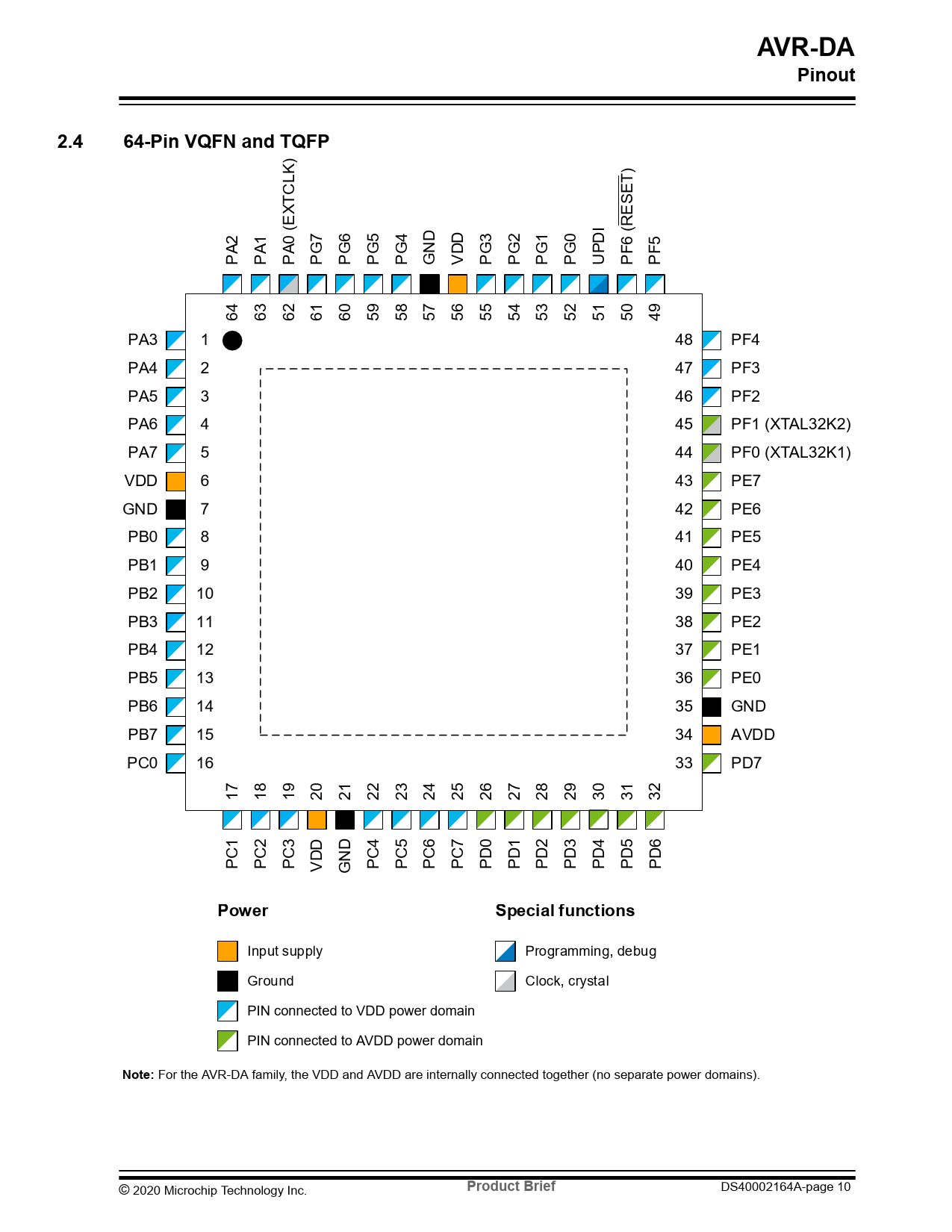

AVR-DA Pinout 2.4 64-Pin VQFN and TQFP
) K L C T X (E I 2 1 0 7 6 5 4 D D 3 2 1 0 D 6 (RESET) 5 A A A G G G G N D G G G G P F F P P P P P P P G V P P P P U P P 4 3 2 1 0 9 8 7 6 5 4 3 2 1 0 9 6 6 6 6 6 5 5 5 5 5 5 5 5 5 5 4 PA3 1 48 PF4 PA4 2 47 PF3 PA5 3 46 PF2 PA6 4 45 PF1 (XTAL32K2) PA7 5 44 PF0 (XTAL32K1) VDD 6 43 PE7 GND 7 42 PE6 PB0 8 41 PE5 PB1 9 40 PE4 PB2 10 39 PE3 PB3 11 38 PE2 PB4 12 37 PE1 PB5 13 36 PE0 PB6 14 35 GND PB7 15 34 AVDD PC0 16 33 PD7 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 1 1 1 2 2 2 2 2 2 2 2 2 2 3 3 3 1 2 3 D D 4 5 6 7 0 1 2 3 4 5 6 C C C D N C C C C D D D D D D D P P P V P P P P P P P P G P P P
Power Special functions
Input supply Programming, debug Ground Clock, crystal PIN connected to VDD power domain PIN connected to AVDD power domain
Note:
For the AVR-DA family, the VDD and AVDD are internally connected together (no separate power domains). © 2020 Microchip Technology Inc.
