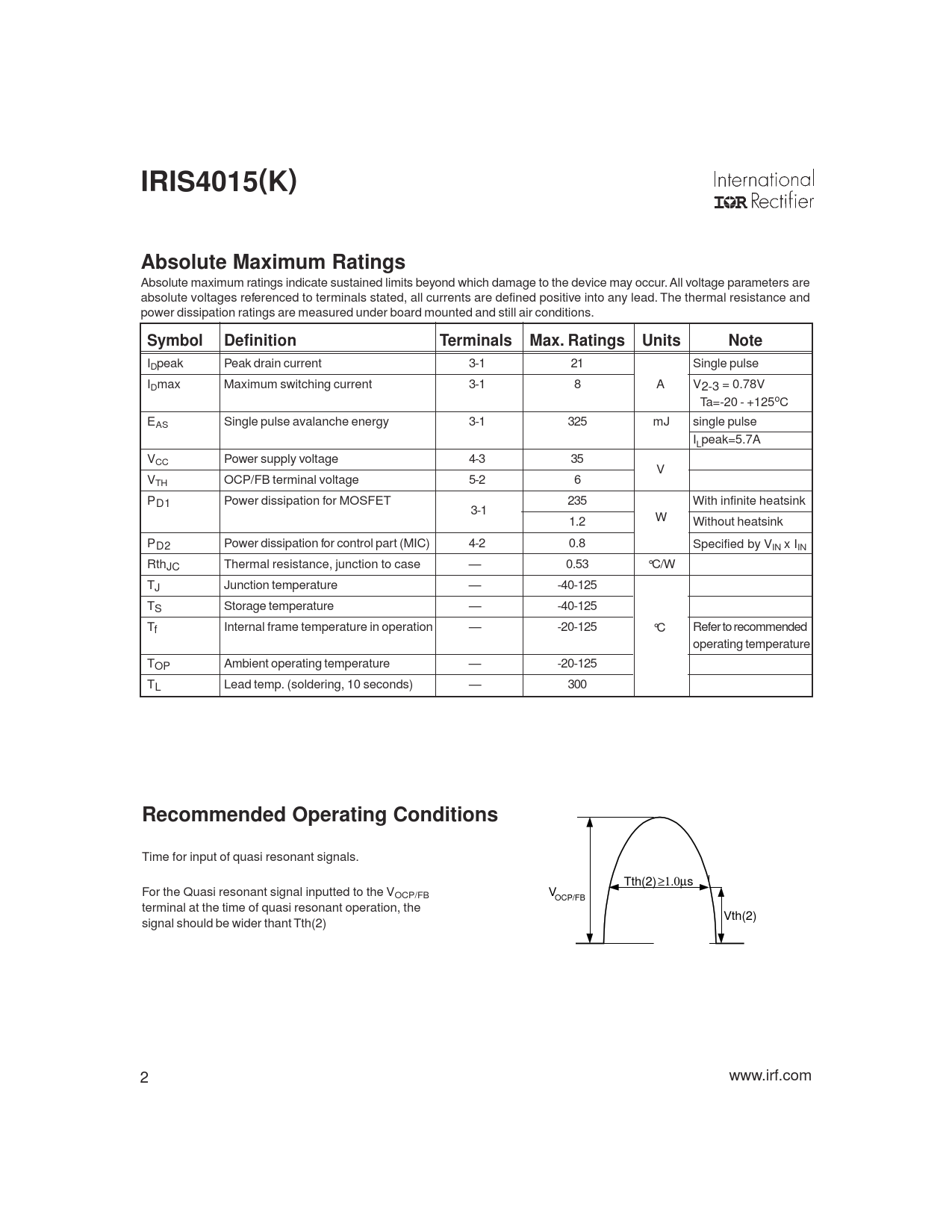

IRIS4015(K) Absolute Maximum Ratings
Absolute maximum ratings indicate sustained limits beyond which damage to the device may occur. All voltage parameters are absolute voltages referenced to terminals stated, all currents are defined positive into any lead. The thermal resistance and power dissipation ratings are measured under board mounted and still air conditions.
Symbol Definition Terminals Max. Ratings Units Note
IDpeak Peak drain current 3-1 21 Single pulse IDmax Maximum switching current 3-1 8 A V2-3 = 0.78V Ta=-20 - +125oC EAS Single pulse avalanche energy 3-1 325 mJ single pulse ILpeak=5.7A VCC Power supply voltage 4-3 35 V VTH OCP/FB terminal voltage 5-2 6 PD1 Power dissipation for MOSFET 235 With infinite heatsink 3-1 1.2 W Without heatsink PD2 Power dissipation for control part (MIC) 4-2 0.8 Specified by VIN x IIN RthJC Thermal resistance, junction to case — 0.53 °C/W TJ Junction temperature — -40-125 TS Storage temperature — -40-125 Tf Internal frame temperature in operation — -20-125 °C Refer to recommended operating temperature TOP Ambient operating temperature — -20-125 TL Lead temp. (soldering, 10 seconds) — 300
Recommended Operating Conditions
Time for input of quasi resonant signals. Tth(2) s ≥1.0µ For the Quasi resonant signal inputted to the VOCP/FB VOCP/FB terminal at the time of quasi resonant operation, the Vth(2) signal should be wider thant Tth(2) 2 www.irf.com
