Datasheet IRIS4015 (International Rectifier) - 6
| Manufacturer | International Rectifier |
| Description | Integrated Switcher |
| Pages / Page | 6 / 6 — IRIS4015(K). Case outline. 5-Lead TO-262. IR WORLD HEADQUARTERS: |
| File Format / Size | PDF / 66 Kb |
| Document Language | English |
IRIS4015(K). Case outline. 5-Lead TO-262. IR WORLD HEADQUARTERS:
Model Line for this Datasheet
Text Version of Document

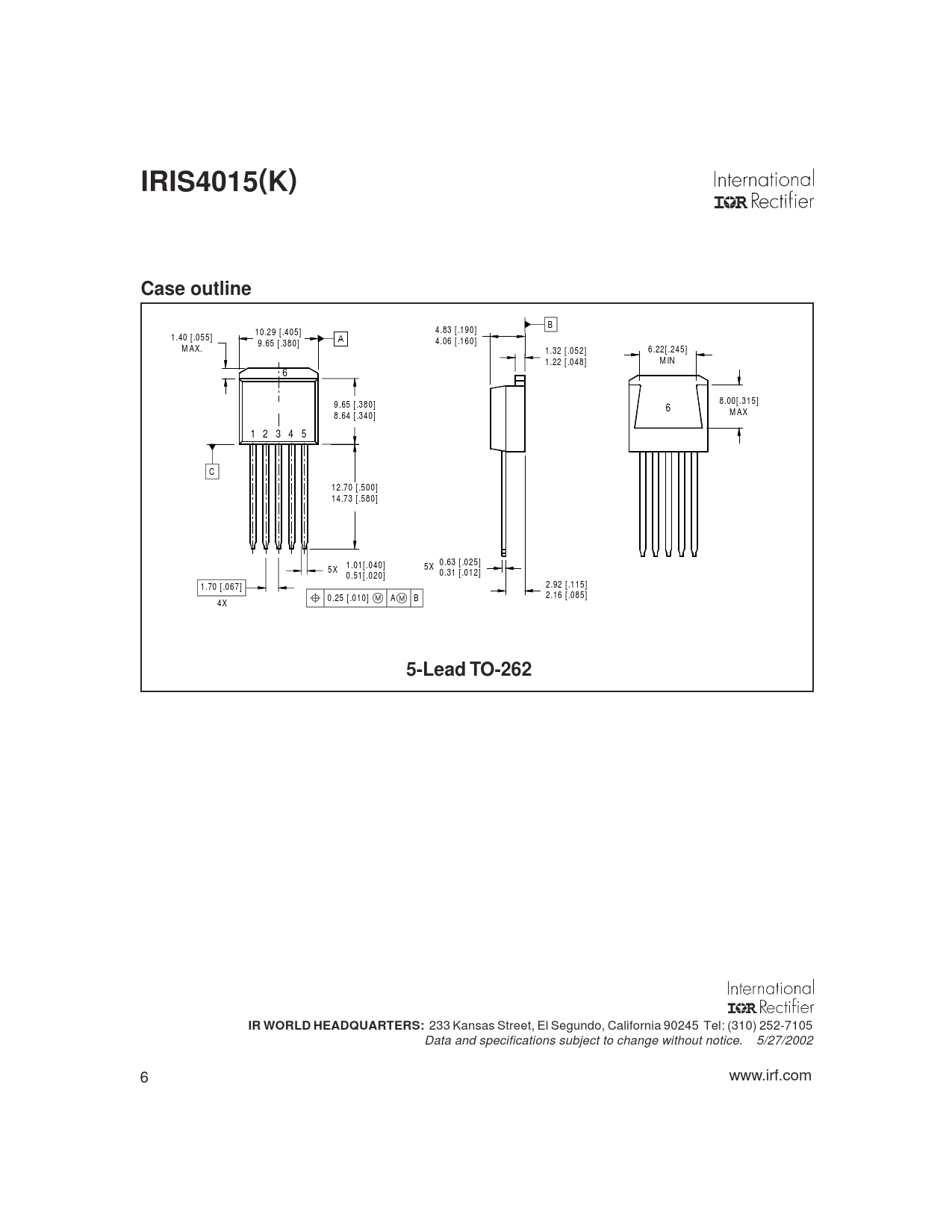

IRIS4015(K) Case outline
B 10.29 [.405] 4.83 [.190] 1.40 [.055] 9.65 [.380] 4.06 [.160] MAX. 1.32 [.052] 6.22[.245] 1.22 [.048] MIN 6 9.65 [.380] 8.00[.315] 6 8.64 [.340] MAX 1 2 3 4 5 C 12. 70 [.500] 14. 73 [.580] 1.01[.040] 0.63 [.025] 5X 5X 0.51[.020] 0.31 [.012] 1.70 [.067] 2.92 [.115] 0.25 [.010] A B 2.16 [.085] 4X
