Datasheet STB11NM60T4, STP11NM60 (STMicroelectronics) - 9
| Manufacturer | STMicroelectronics |
| Description | N-channel 600 V, 0.4 Ω typ., 11 A, MDmesh II Power MOSFETs in D²PAK and TO-220 |
| Pages / Page | 21 / 9 — STB11NM60T4, STP11NM60. D²PAK (TO-263) type A package information. 4.1. … |
| File Format / Size | PDF / 639 Kb |
| Document Language | English |
STB11NM60T4, STP11NM60. D²PAK (TO-263) type A package information. 4.1. Figure 17. D²PAK (TO-263) type A package outline
Model Line for this Datasheet
Text Version of Document

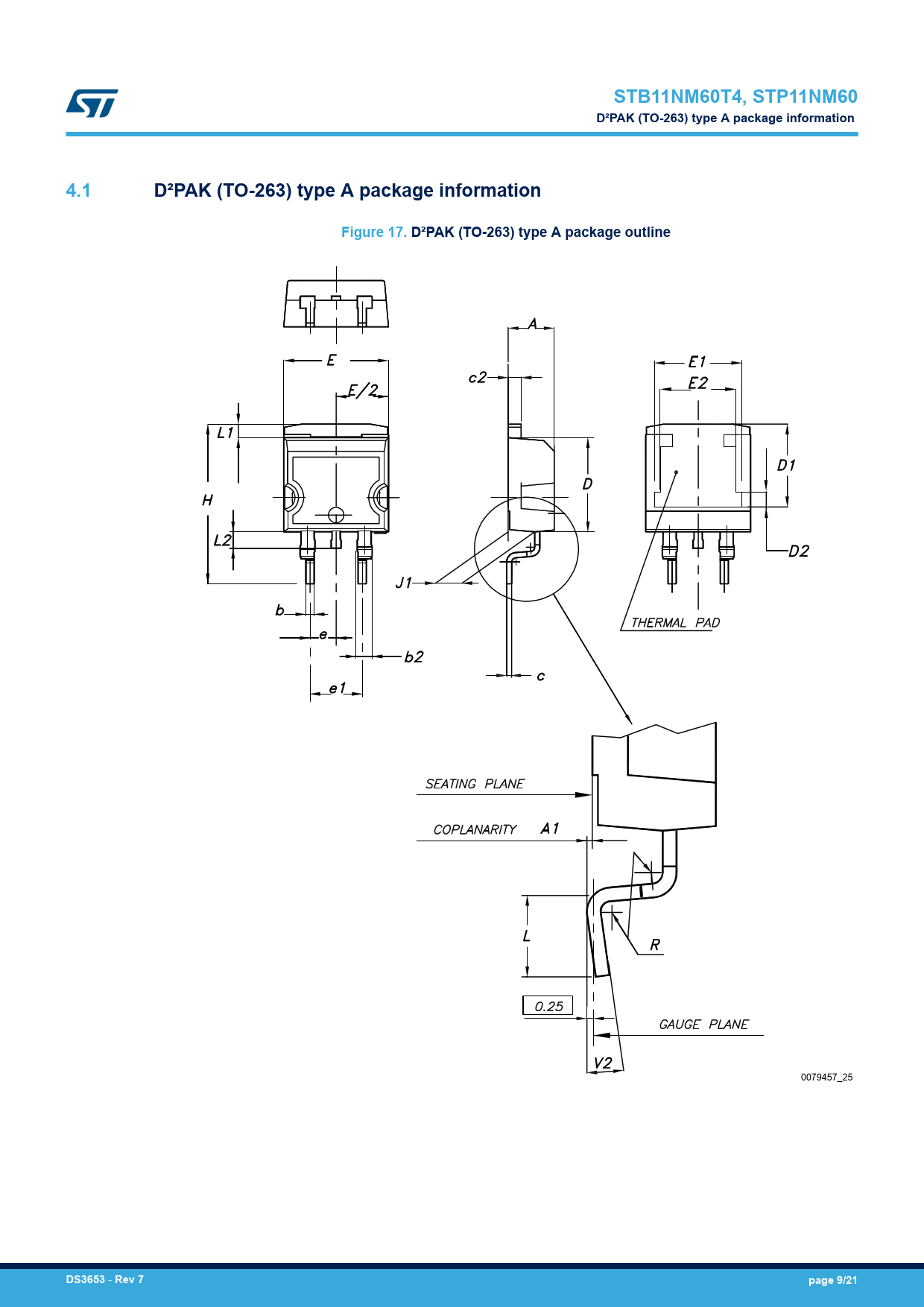

STB11NM60T4, STP11NM60 D²PAK (TO-263) type A package information 4.1 D²PAK (TO-263) type A package information Figure 17. D²PAK (TO-263) type A package outline
0079457_25
DS3653
-
Rev 7 page 9/21
