| Manufacturer | Analog Devices |
| Description | 36 V, Low Noise, Zero Drift Op Amp |
| Pages / Page | 29 / 8 — ADA4523-1. Data Sheet. PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS. TOP … |
| File Format / Size | PDF / 939 Kb |
| Document Language | English |

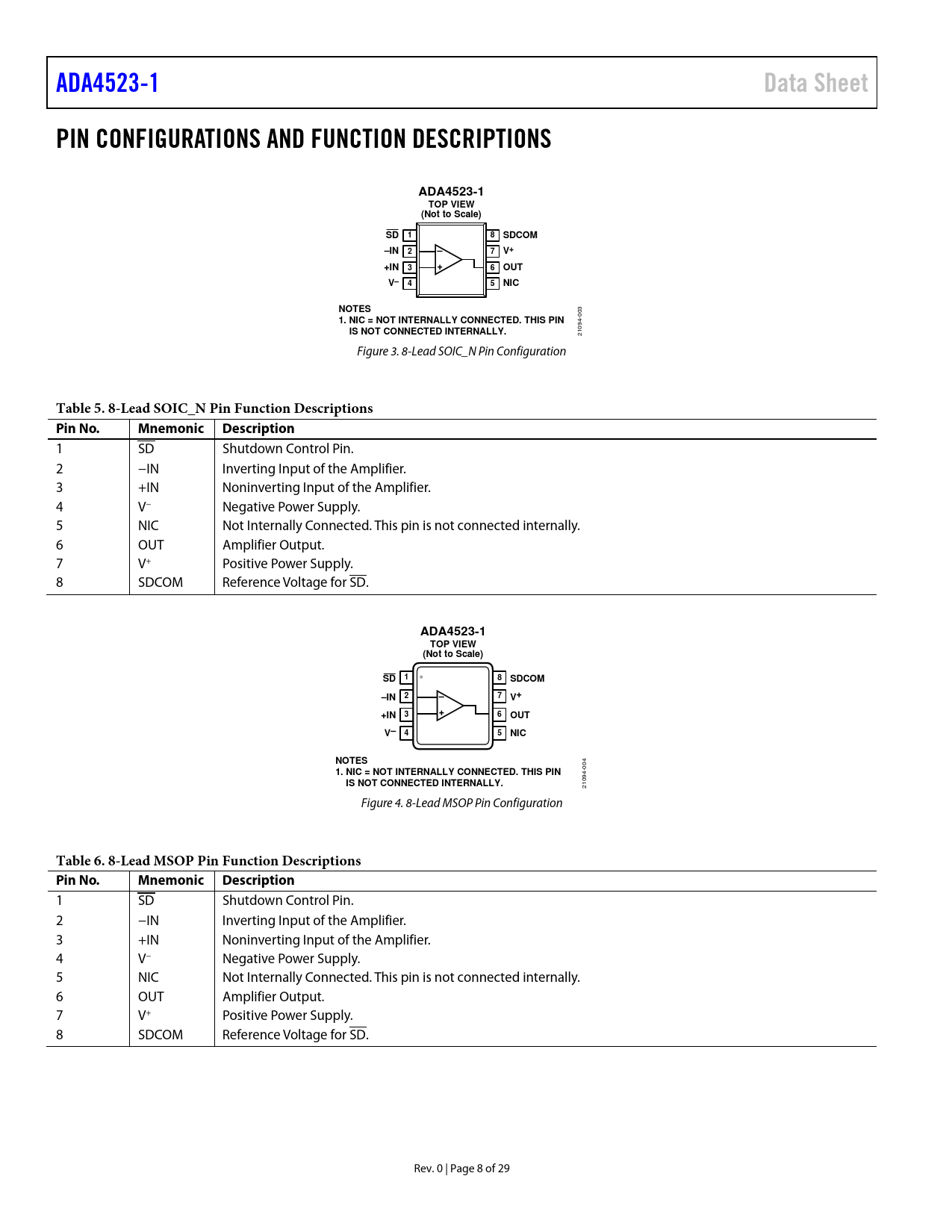

ADA4523-1. Data Sheet. PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS. TOP VIEW. (Not to Scale). SDCOM. –IN. +IN. OUT. NIC. NOTES
Model Line for this Datasheet
Text Version of Document
ADA4523-1 Data Sheet PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS ADA4523-1 TOP VIEW (Not to Scale) SD 1 8 SDCOM –IN 2 – V+ 7 +IN 3 + 6 OUT V– 4 5 NIC NOTES
003
1. NIC = NOT INTERNALLY CONNECTED. THIS PIN IS NOT CONNECTED INTERNALLY.
21094- Figure 3. 8-Lead SOIC_N Pin Configuration
Table 5. 8-Lead SOIC_N Pin Function Descriptions Pin No. Mnemonic Description
1 SD Shutdown Control Pin. 2 −IN Inverting Input of the Amplifier. 3 +IN Noninverting Input of the Amplifier. 4 V− Negative Power Supply. 5 NIC Not Internally Connected. This pin is not connected internally. 6 OUT Amplifier Output. 7 V+ Positive Power Supply. 8 SDCOM Reference Voltage for SD.
ADA4523-1 TOP VIEW (Not to Scale) 1 8 SD SDCOM 2 –IN – 7 V+ 3 + +IN 6 OUT V– 4 5 NIC NOTES
004
1. NIC = NOT INTERNALLY CONNECTED. THIS PIN IS NOT CONNECTED INTERNALLY.
21094- Figure 4. 8-Lead MSOP Pin Configuration
Table 6. 8-Lead MSOP Pin Function Descriptions Pin No. Mnemonic Description
1 SD Shutdown Control Pin. 2 −IN Inverting Input of the Amplifier. 3 +IN Noninverting Input of the Amplifier. 4 V− Negative Power Supply. 5 NIC Not Internally Connected. This pin is not connected internally. 6 OUT Amplifier Output. 7 V+ Positive Power Supply. 8 SDCOM Reference Voltage for SD. Rev. 0 | Page 8 of 29 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION TYPICAL APPLICATION DIAGRAM COMPANION PRODUCTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS 5 V ELECTRICAL CHARACTERISTICS 30 V ELECTRICAL CHARACTERISTICS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION INPUT VOLTAGE NOISE INPUT CURRENT NOISE INPUT BIAS CURRENT THERMOCOUPLE EFFECTS POWER DISSIPATION ELECTRICAL OVERSTRESS AND INPUT PROTECTION SHUTDOWN MODE APPLICATIONS INFORMATION PARALLELING CHOPPERS TO IMPROVE NOISE SOLDER PAD LAYOUTS TYPICAL APPLICATION CIRCUIT AND TRANSFER FUNCTION RELATED PRODUCTS OUTLINE DIMENSIONS ORDERING GUIDE
