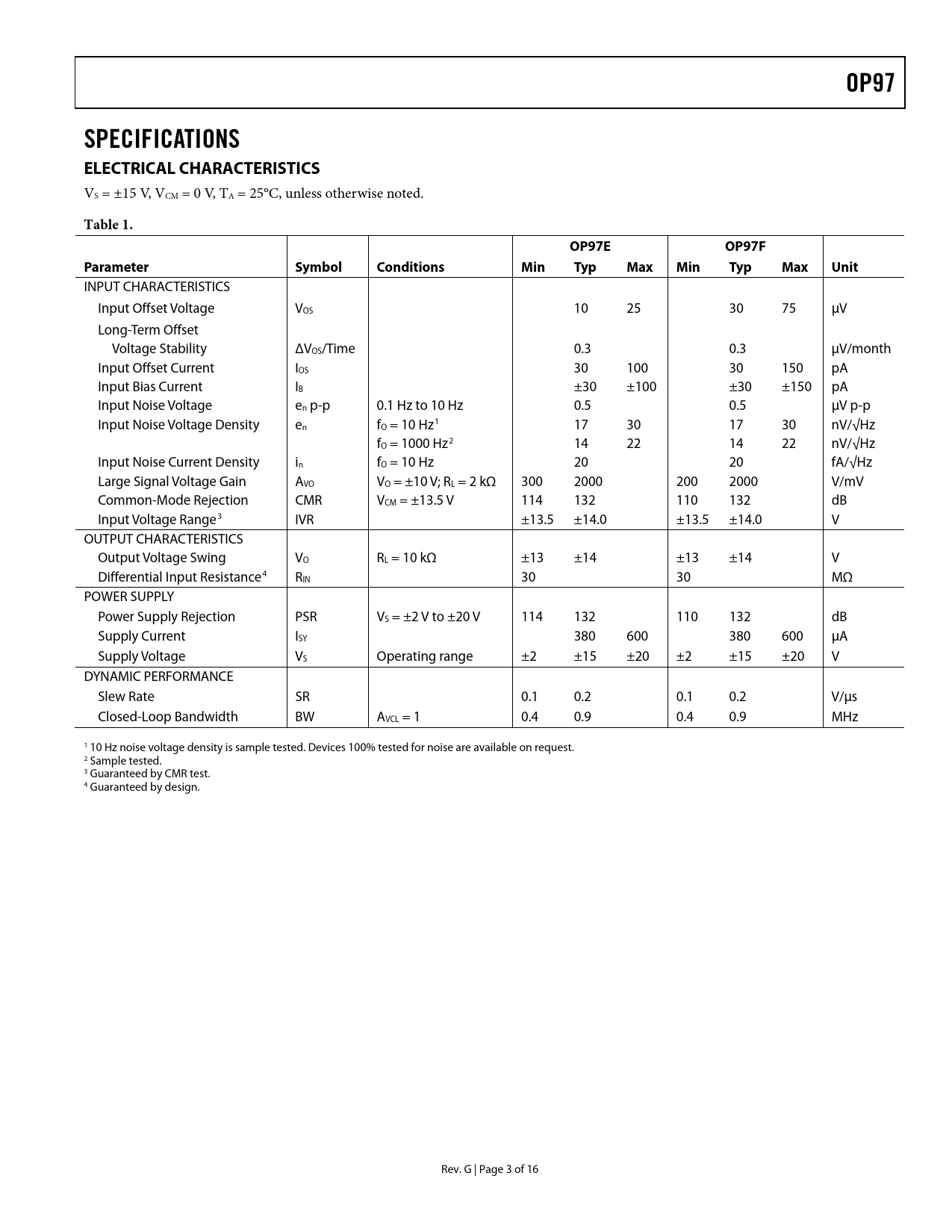

OP97 SPECIFICATIONS ELECTRICAL CHARACTERISTICS
VS = ±15 V, VCM = 0 V, TA = 25°C, unless otherwise noted.
Table 1. OP97E OP97F Parameter Symbol Conditions Min Typ Max Min Typ Max Unit
INPUT CHARACTERISTICS Input Offset Voltage VOS 10 25 30 75 μV Long-Term Offset Voltage Stability ΔVOS/Time 0.3 0.3 μV/month Input Offset Current IOS 30 100 30 150 pA Input Bias Current IB ±30 ±100 ±30 ±150 pA Input Noise Voltage en p-p 0.1 Hz to 10 Hz 0.5 0.5 μV p-p Input Noise Voltage Density en fO = 10 Hz1 17 30 17 30 nV/√Hz fO = 1000 Hz2 14 22 14 22 nV/√Hz Input Noise Current Density in fO = 10 Hz 20 20 fA/√Hz Large Signal Voltage Gain AVO VO = ±10 V; RL = 2 kΩ 300 2000 200 2000 V/mV Common-Mode Rejection CMR VCM = ±13.5 V 114 132 110 132 dB Input Voltage Range3 IVR ±13.5 ±14.0 ±13.5 ±14.0 V OUTPUT CHARACTERISTICS Output Voltage Swing VO RL = 10 kΩ ±13 ±14 ±13 ±14 V Differential Input Resistance4 RIN 30 30 MΩ POWER SUPPLY Power Supply Rejection PSR VS = ±2 V to ±20 V 114 132 110 132 dB Supply Current ISY 380 600 380 600 μA Supply Voltage VS Operating range ±2 ±15 ±20 ±2 ±15 ±20 V DYNAMIC PERFORMANCE Slew Rate SR 0.1 0.2 0.1 0.2 V/μs Closed-Loop Bandwidth BW AVCL = 1 0.4 0.9 0.4 0.9 MHz 1 10 Hz noise voltage density is sample tested. Devices 100% tested for noise are available on request. 2 Sample tested. 3 Guaranteed by CMR test. 4 Guaranteed by design. Rev. G | Page 3 of 16 Document Outline FEATURES PIN CONNECTIONS GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ELECTRICAL CHARACTERISTICS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION TYPICAL PERFORMANCE CHARACTERISTICS APPLICATION INFORMATION AC PERFORMANCE GUARDING AND SHIELDING OUTLINE DIMENSIONS ORDERING GUIDE
