Datasheet OP97 (Analog Devices) - 4
| Manufacturer | Analog Devices |
| Description | Low Power, High Precision Operational Amplifier |
| Pages / Page | 16 / 4 — OP97. Table 2. OP97E. OP97F. Parameter. Symbol. Conditions. Min. Typ. … |
| Revision | G |
| File Format / Size | PDF / 612 Kb |
| Document Language | English |
OP97. Table 2. OP97E. OP97F. Parameter. Symbol. Conditions. Min. Typ. Max. Unit
Model Line for this Datasheet
Text Version of Document
link to page 16 link to page 4
OP97
VS = ±15 V, VCM = 0 V, −40°C ≤ TA ≤ +85°C for the OP97E/OP97F, unless otherwise noted.

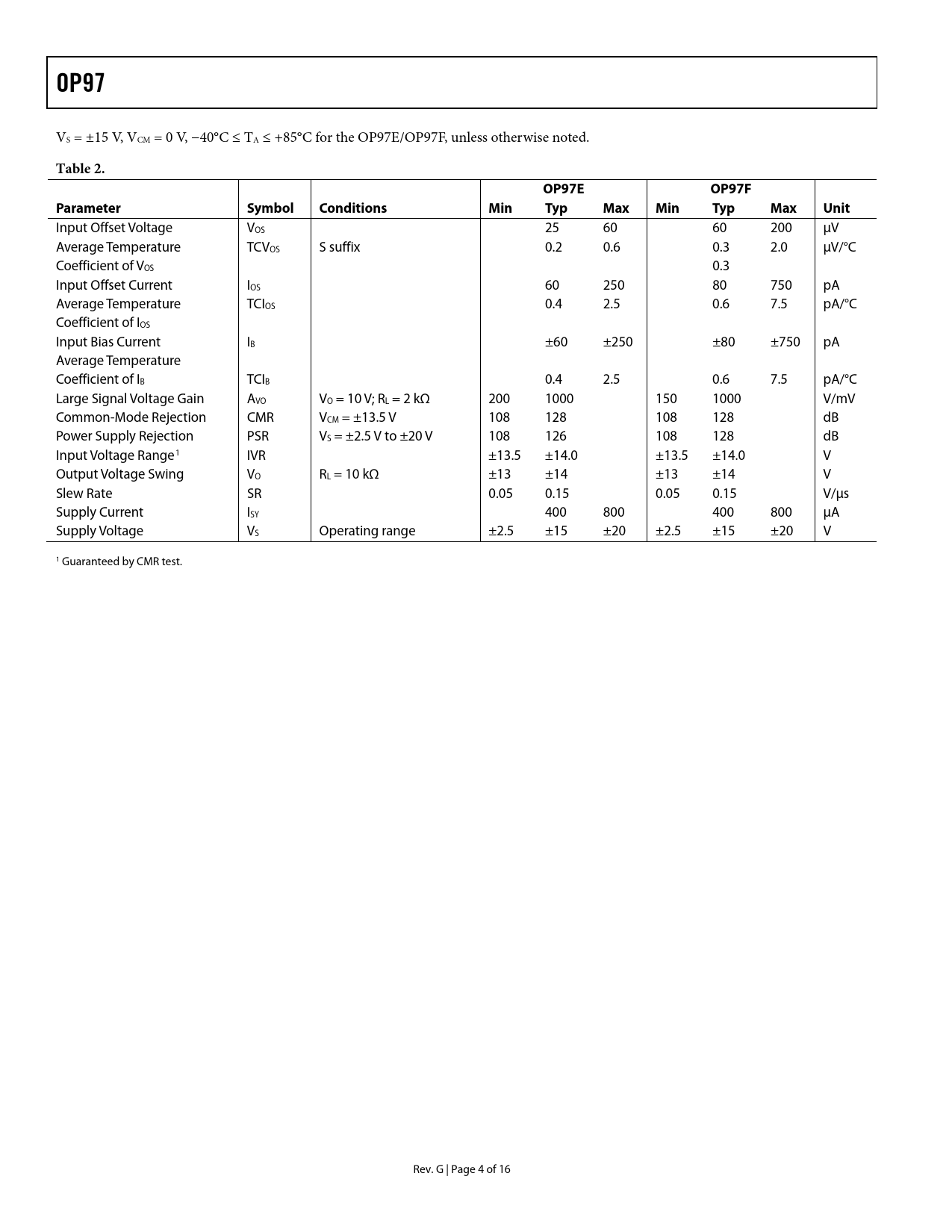

Table 2. OP97E OP97F Parameter Symbol Conditions Min Typ Max Min Typ Max Unit
Input Offset Voltage VOS 25 60 60 200 μV Average Temperature TCVOS S suffix 0.2 0.6 0.3 2.0 μV/°C Coefficient of VOS 0.3 Input Offset Current IOS 60 250 80 750 pA Average Temperature TCIOS 0.4 2.5 0.6 7.5 pA/°C Coefficient of IOS Input Bias Current IB ±60 ±250 ±80 ±750 pA Average Temperature Coefficient of IB TCIB 0.4 2.5 0.6 7.5 pA/°C Large Signal Voltage Gain AVO VO = 10 V; RL = 2 kΩ 200 1000 150 1000 V/mV Common-Mode Rejection CMR VCM = ±13.5 V 108 128 108 128 dB Power Supply Rejection PSR VS = ±2.5 V to ±20 V 108 126 108 128 dB Input Voltage Range1 IVR ±13.5 ±14.0 ±13.5 ±14.0 V Output Voltage Swing VO RL = 10 kΩ ±13 ±14 ±13 ±14 V Slew Rate SR 0.05 0.15 0.05 0.15 V/μs Supply Current ISY 400 800 400 800 μA Supply Voltage VS Operating range ±2.5 ±15 ±20 ±2.5 ±15 ±20 V 1 Guaranteed by CMR test. Rev. G | Page 4 of 16 Document Outline FEATURES PIN CONNECTIONS GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ELECTRICAL CHARACTERISTICS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION TYPICAL PERFORMANCE CHARACTERISTICS APPLICATION INFORMATION AC PERFORMANCE GUARDING AND SHIELDING OUTLINE DIMENSIONS ORDERING GUIDE
