Datasheet PI3WVR626 (Diodes) - 3
| Manufacturer | Diodes |
| Description | 2:1 MIPI 2-Data Lane |
| Pages / Page | 12 / 3 — PI3WVR626. Pin Configuration(Top View). Block Diagram. Truth Table. SEL. … |
| File Format / Size | PDF / 1.0 Mb |
| Document Language | English |

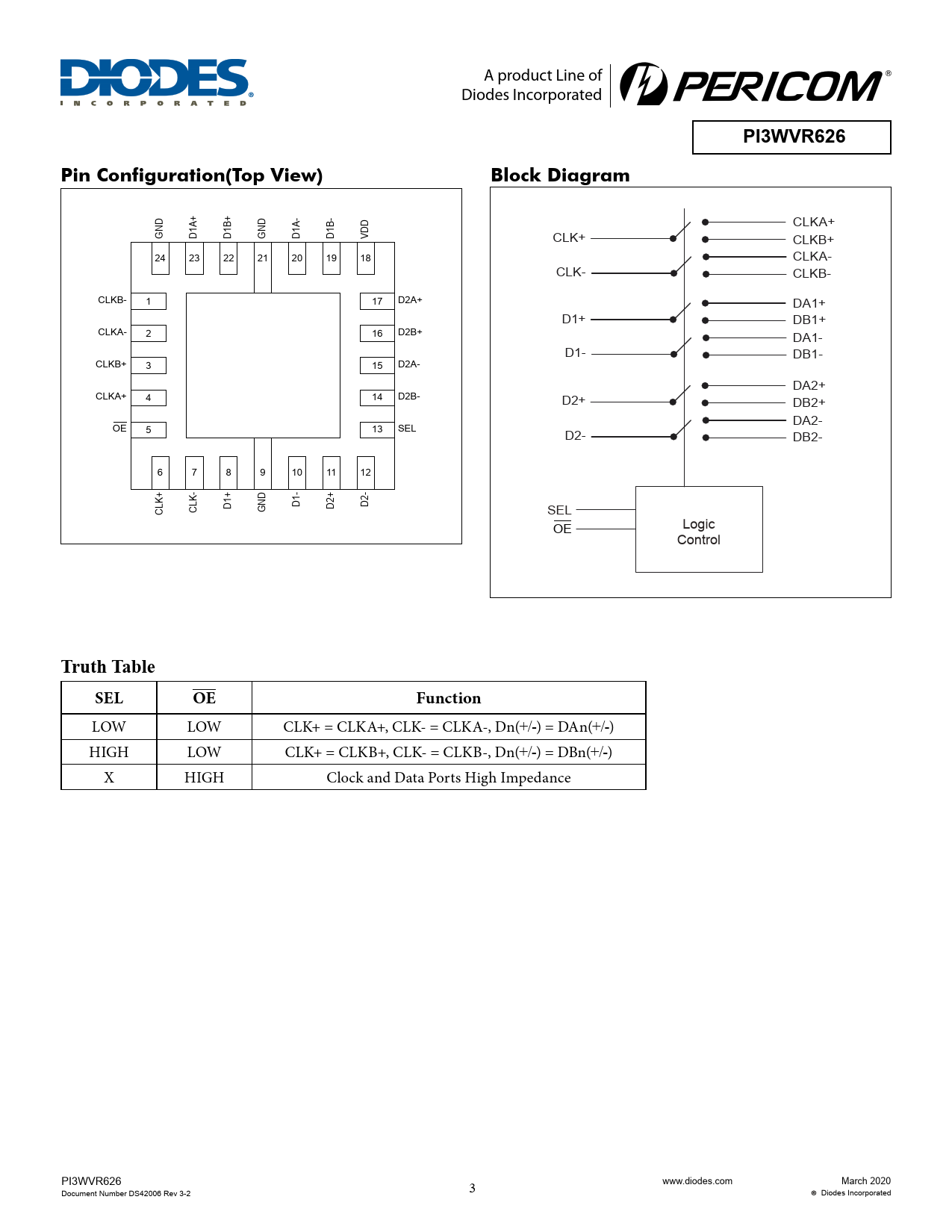

PI3WVR626. Pin Configuration(Top View). Block Diagram. Truth Table. SEL. Function
Model Line for this Datasheet
Text Version of Document
A product Line of Diodes Incorporated
PI3WVR626 Pin Configuration(Top View) Block Diagram
CLKA+ GND D1A+ D1B+ GND D1A- D1B- VDD CLK+ CLKB+ 24 23 22 21 20 19 18 CLKA- CLK- CLKB- CLKB- 1 17 D2A+ DA1+ D1+ DB1+ CLKA- 2 16 D2B+ DA1- D1- DB1- CLKB+ 3 15 D2A- DA2+ CLKA+ 4 14 D2B- D2+ DB2+ DA2- OE 5 13 SEL D2- DB2- 6 7 8 9 10 11 12 CLK+ CLK- D1+ GND D1- D2+ D2- SEL Logic OE Control
Truth Table SEL OE Function
LOW LOW CLK+ = CLKA+, CLK- = CLKA-, Dn(+/-) = DAn(+/-) HIGH LOW CLK+ = CLKB+, CLK- = CLKB-, Dn(+/-) = DBn(+/-) X HIGH Clock and Data Ports High Impedance PI3WVR626 Document Number DS42006 Rev 3-2 3 www.diodes.com March 2020 Diodes Incorporated
