HMC363S8G / 363S8GE
v06.1119
SMT GaAs HBT MMIC DIVIDE-BY-8, DC - 12 GHz Evaluation PCB
t M s s - r o t c e t e s & D r e iD iv y D c n e u q e
List of Materials for Evaluation PCB 104631 [1]

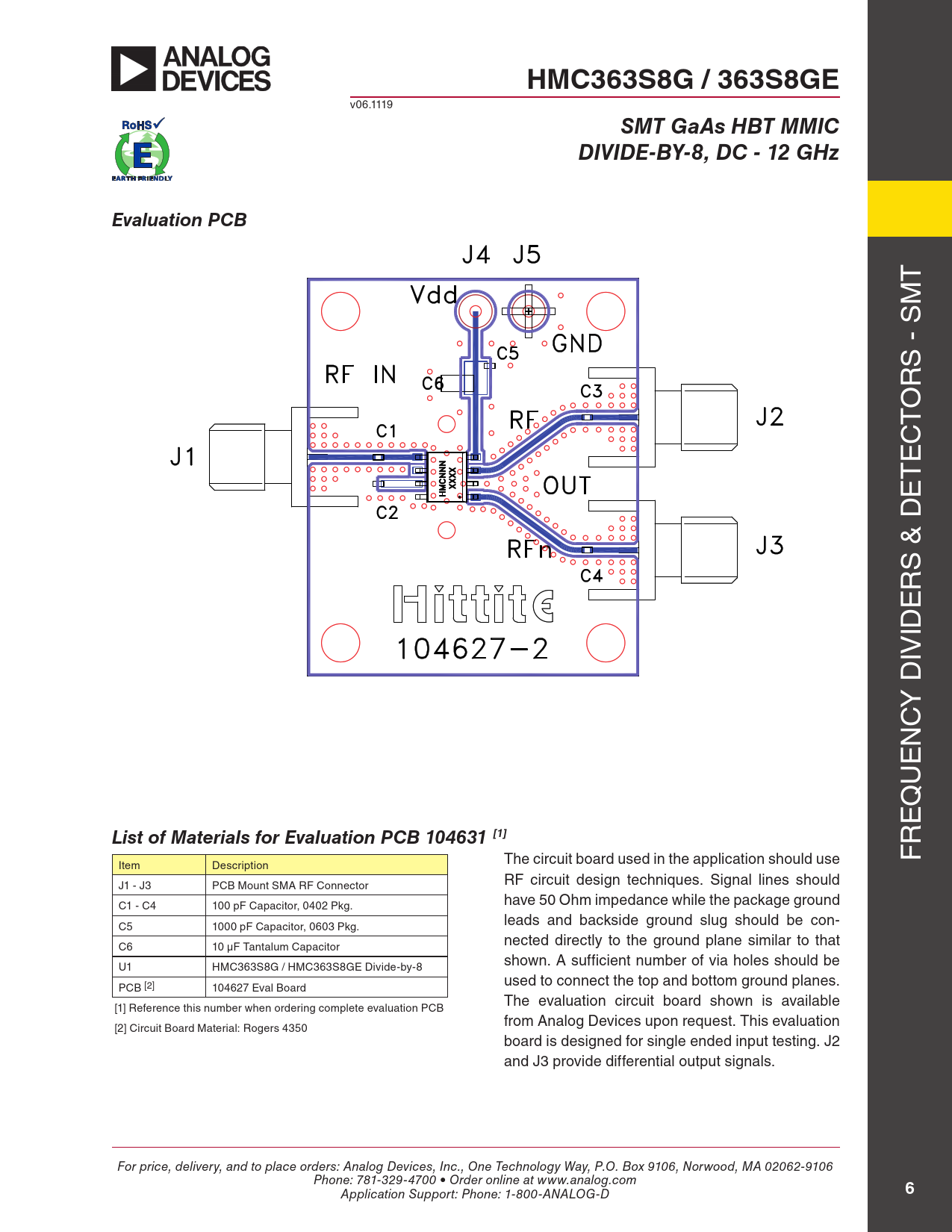

r the circuit board used in the application should use F item Description rF circuit design techniques. signal lines should J1 - J3 PcB Mount sMA rF connector have 50 ohm impedance while the package ground c1 - c4 100 pF capacitor, 0402 Pkg. leads and backside ground slug should be con- c5 1000 pF capacitor, 0603 Pkg. nected directly to the ground plane similar to that c6 10 µF tantalum capacitor shown. A sufficient number of via holes should be u1 HMc363s8G / HMc363s8Ge Divide-by-8 used to connect the top and bottom ground planes. PcB [2] 104627 eval Board the evaluation circuit board shown is available [1] reference this number when ordering complete evaluation PcB from Analog Devices upon request. this evaluation [2] circuit Board Material: rogers 4350 board is designed for single ended input testing. J2 and J3 provide differential output signals. For price, delivery, and to place orders: Analog Devices, Inc., One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 781-329-4700 • Order online at www.analog.com
