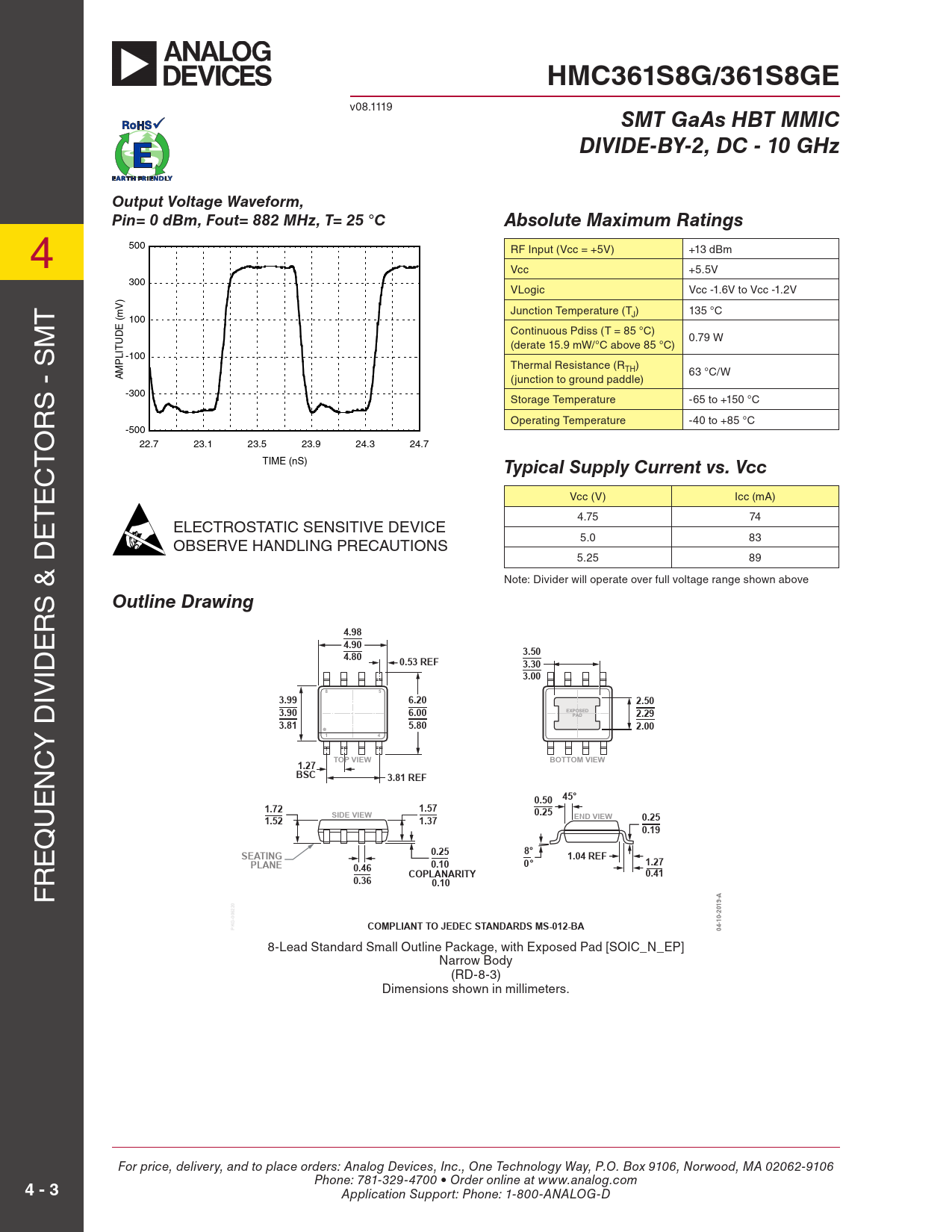

HMC361S8G/361S8GE
v08.1119
SMT GaAs HBT MMIC DIVIDE-BY-2, DC - 10 GHz Output Voltage Waveform, Pin= 0 dBm, Fout= 882 MHz, T= 25 °C Absolute Maximum Ratings
4 500 RF Input (Vcc = +5V) +13 dBm Vcc +5.5V 4 300 VLogic Vcc -1.6V to Vcc -1.2V T Junction Temperature (TJ) 135 °C (mV) 100 T M Continuous Pdiss (T = 85 °C) 0.79 W (derate 15.9 mW/°C above 85 °C) M -100 Thermal Resistance (RTH) 63 °C/W AMPLITUDE (junction to ground paddle) S - S -300 Storage Temperature -65 to +150 °C S - S R Operating Temperature -40 to +85 °C -500 R O 22.7 23.1 23.5 23.9 24.3 24.7 O T TIME (nS)
Typical Supply Current vs. Vcc
T C C E Vcc (V) Icc (mA) E T 4.75 74 T E ELECTROSTATIC SENSITIVE DEVICE 5.0 83 E OBSERVE HANDLING PRECAUTIONS
8-Lead Standard Small Outline Package, with Exposed Pad [SOIC_N_EP] Narrow Body
5.25 89
(RD-8-3)
Note: Divi
Dimensions shown in millimeters.
der will operate over full voltage range shown above S & D
Outline Drawing
S & D R
4.98
R E
4.90 3.50
E ID
4.80 0.53 REF 3.30 3.00
ID IV
8 5 3.99 6.20 2.50
IV
3.90 6.00 EXPOSED PAD 2.29
Y D
3.81 5.80 2.00 1 4
Y D C
1.27 TOP VIEW BOTTOM VIEW
C N
BSC 3.81 REF
N E
0.50 45° 1.72 1.57
E U
SIDE VIEW 0.25 END VIEW 0.25 1.52 1.37 0.19
U Q
0.25 8°
Q E
SEATING 1.04 REF PLANE 0.10 0° 1.27 0.46
E R
COPLANARITY 0.41 0.36 0.10
R F F
PKG-006220 COMPLIANT TO JEDEC STANDARDS MS-012-BA 04-10-2019-A
8-Lead Standard Small Outline Package, with Exposed Pad [SOIC_N_EP] Narrow Body (RD-8-3) Dimensions shown in millimeters. For price, delivery, and to place orders: Analog Devices, Inc., One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
4 - 3
Phone: 781-329-4700 • Order online at www.analog.com Application Support: Phone: 1-800-ANALOG-D
