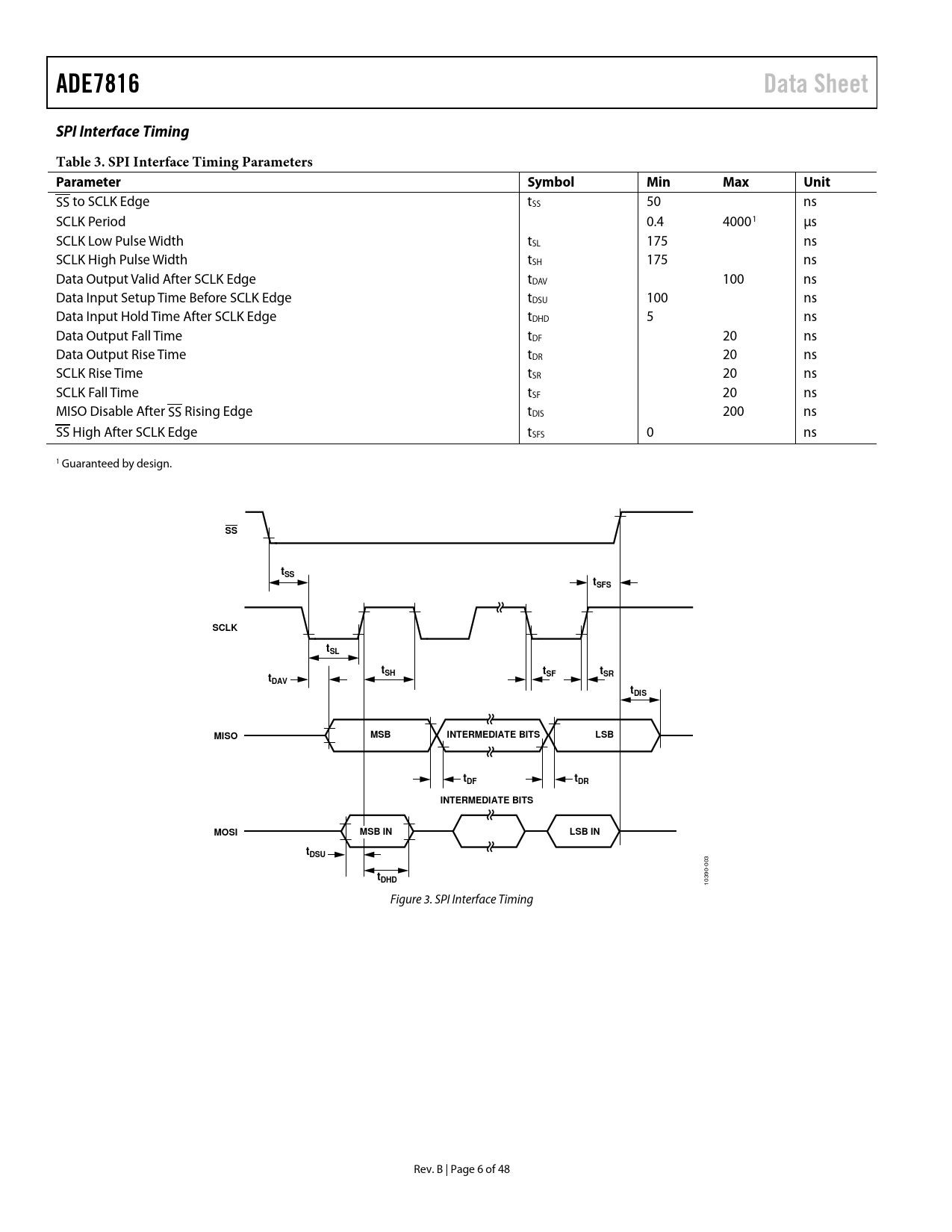

ADE7816 Data Sheet SPI Interface Timing Table 3. SPI Interface Timing Parameters Parameter Symbol Min Max Unit
SS to SCLK Edge tSS 50 ns SCLK Period 0.4 40001 μs SCLK Low Pulse Width tSL 175 ns SCLK High Pulse Width tSH 175 ns Data Output Valid After SCLK Edge tDAV 100 ns Data Input Setup Time Before SCLK Edge tDSU 100 ns Data Input Hold Time After SCLK Edge tDHD 5 ns Data Output Fall Time tDF 20 ns Data Output Rise Time tDR 20 ns SCLK Rise Time tSR 20 ns SCLK Fall Time tSF 20 ns MISO Disable After SS Rising Edge tDIS 200 ns SS High After SCLK Edge tSFS 0 ns 1 Guaranteed by design.
SS tSS tSFS SCLK tSL tSH t t t SF SR DAV tDIS MSB INTERMEDIATE BITS LSB MISO tDF tDR INTERMEDIATE BITS MOSI MSB IN LSB IN tDSU
003
tDHD
10390- Figure 3. SPI Interface Timing Rev. B | Page 6 of 48 Document Outline Features General Description Functional Block Diagram Revision History Specifications Timing Characteristics I2C-Compatible Interface Timing SPI Interface Timing HSDC Interface Timing Load Circuit for All Timing Specifications Absolute Maximum Ratings Thermal Resistance ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Test Circuit Terminology Quick Start Inputs Power and Ground VDD and AGND, DGND Reference Circuit REFIN/OUT Reset Hardware Reset Software Reset Functionality CLKIN and CLKOUT Analog Inputs Input Pins PGA Gain Digital Integrator Antialiasing Filters Energy Measurements Starting and Stopping the DSP Active Energy Measurement Definition of Active Power and Active Energy Active Energy Registers Active Energy Threshold Energy Accumulation and Register Roll-Over Reactive Energy Measurement Definition of Reactive Power and Reactive Energy Reactive Energy Registers Reactive Energy Threshold Reactive Energy Accumulation and Register Roll-Over Line Cycle Accumulation Mode Root Mean Square Measurement No Load Detection Setting the No Load Thresholds No Load Interrupt Energy Calibration Channel Matching Energy Gain Calibration Energy Offset Calibration Energy Phase Calibration RMS Offset Calibration Power Quality Features Selecting a Current Channel Group Instantaneous Waveforms Zero-Crossing Detection Zero-Crossing Detection Zero-Crossing Timeout Peak Detection Setting the PEAKCYC Register Overcurrent and Overvoltage Detection Setting the OVLVL and OILVL Registers Overvoltage and Overcurrent Interrupts Indication of Power Direction Angle Measurements Period Measurement Voltage Sag Detection Setting the SAGCYC Register Setting the SAGLVL Register Voltage Sag Interrupt Checksum Layout Guidelines Crystal Circuit Outputs Interrupts Communication Serial Interface Selection I2C-Compatible Interface I2C Write Operation I2C Read Operation SPI-Compatible Interface SPI Read Operation SPI Write Operation HSDC Interface Registers Register Protection Register Format Register Maps Register Descriptions Interrupt Enable and Interrupt Status Registers Outline Dimensions Ordering Guide
