ADuM6020/. ADuM6028. Data Sheet. ABSOLUTE MAXIMUM RATINGS. Table 16. Maximum Continuous Working Voltage. Table 15
Model Line for this Datasheet
Text Version of Document
link to page 17

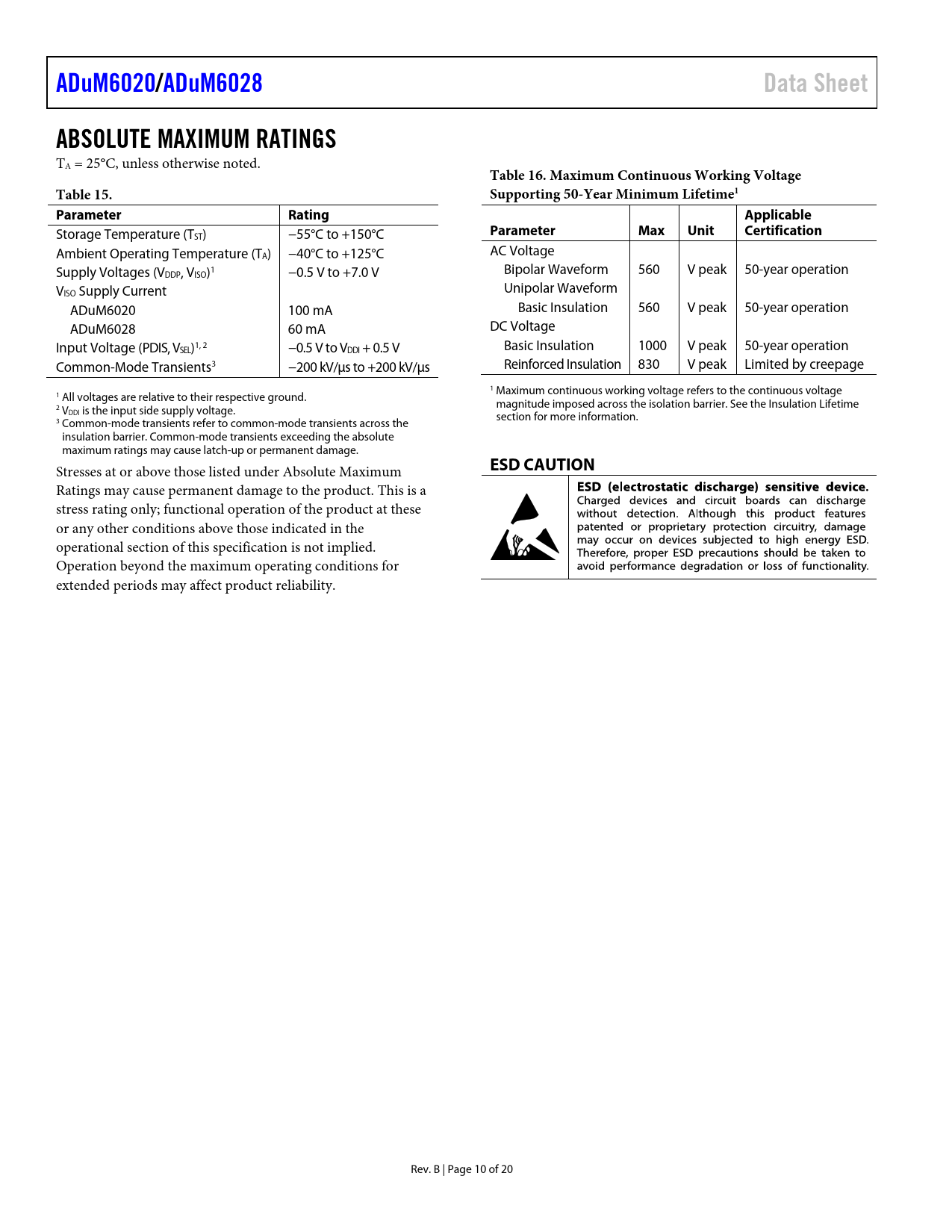

ADuM6020/ ADuM6028 Data Sheet ABSOLUTE MAXIMUM RATINGS
TA = 25°C, unless otherwise noted.
Table 16. Maximum Continuous Working Voltage Table 15. Supporting 50-Year Minimum Lifetime1 Parameter Rating Applicable
Storage Temperature (T
Parameter Max Unit Certification
ST) −55°C to +150°C Ambient Operating Temperature (T AC Voltage A) −40°C to +125°C Supply Voltages (V Bipolar Waveform 560 V peak 50-year operation DDP, VISO)1 −0.5 V to +7.0 V V Unipolar Waveform ISO Supply Current ADuM6020 100 mA Basic Insulation 560 V peak 50-year operation ADuM6028 60 mA DC Voltage Input Voltage (PDIS, V Basic Insulation 1000 V peak 50-year operation SEL)1, 2 −0.5 V to VDDI + 0.5 V Common-Mode Transients3 −200 kV/μs to +200 kV/μs Reinforced Insulation 830 V peak Limited by creepage 1 Maximum continuous working voltage refers to the continuous voltage 1 All voltages are relative to their respective ground. magnitude imposed across the isolation barrier. See the Insulation Lifetime 2 VDDI is the input side supply voltage. section for more information. 3 Common-mode transients refer to common-mode transients across the insulation barrier. Common-mode transients exceeding the absolute maximum ratings may cause latch-up or permanent damage.
ESD CAUTION
Stresses at or above those listed under Absolute Maximum Ratings may cause permanent damage to the product. This is a stress rating only; functional operation of the product at these or any other conditions above those indicated in the operational section of this specification is not implied. Operation beyond the maximum operating conditions for extended periods may affect product reliability. Rev. B | Page 10 of 20 Document Outline Features Applications Functional Block Diagrams General Description Revision History Specifications Electrical Characteristics—5 V Primary Input Supply/5 V Secondary Isolated Supply Electrical Characteristics—5 V Primary Input Supply/3.3 V Secondary Isolated Supply Electrical Characteristics—3.3 V Primary Input Supply/3.3 V Secondary Isolated Supply Regulatory Approvals Insulation and Safety Related Specifications Package Characteristics DIN V VDE V 0884-10 (VDE V 0884-10) Insulation Characteristics Recommended Operating Conditions Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Truth Table Typical Performance Characteristics Theory of Operation Applications Information PCB Layout Thermal Analysis EMI Considerations Insulation Lifetime Surface Tracking Insulation Wear Out Calculation and Use of Parameters Example Outline Dimensions Ordering Guide
