BLOCK DIAGRAM
Model Line for this Datasheet
- LT4356CDE-1#PBF LT4356CDE-1#TRPBF LT4356CDE-2#PBF LT4356CDE-2#TRPBF LT4356CMS-1#PBF LT4356CMS-1#TRPBF LT4356CS-1#PBF LT4356CS-1#TRPBF LT4356CS-2#PBF LT4356CS-2#TRPBF LT4356HDE-1#PBF LT4356HDE-1#TRPBF LT4356HDE-2#PBF LT4356HDE-2#TRPBF LT4356HMS-1#PBF LT4356HMS-1#TRPBF LT4356HS-1#PBF LT4356HS-1#TRPBF LT4356HS-2#PBF LT4356HS-2#TRPBF LT4356IDE-1#PBF LT4356IDE-1#TRPBF LT4356IDE-2#PBF LT4356IDE-2#TRPBF LT4356IMS-1#PBF LT4356IMS-1#TRPBF LT4356IS-1#PBF LT4356IS-1#TRPBF LT4356IS-2#PBF LT4356IS-2#TRPBF
Text Version of Document
LT4356-1/LT4356-2

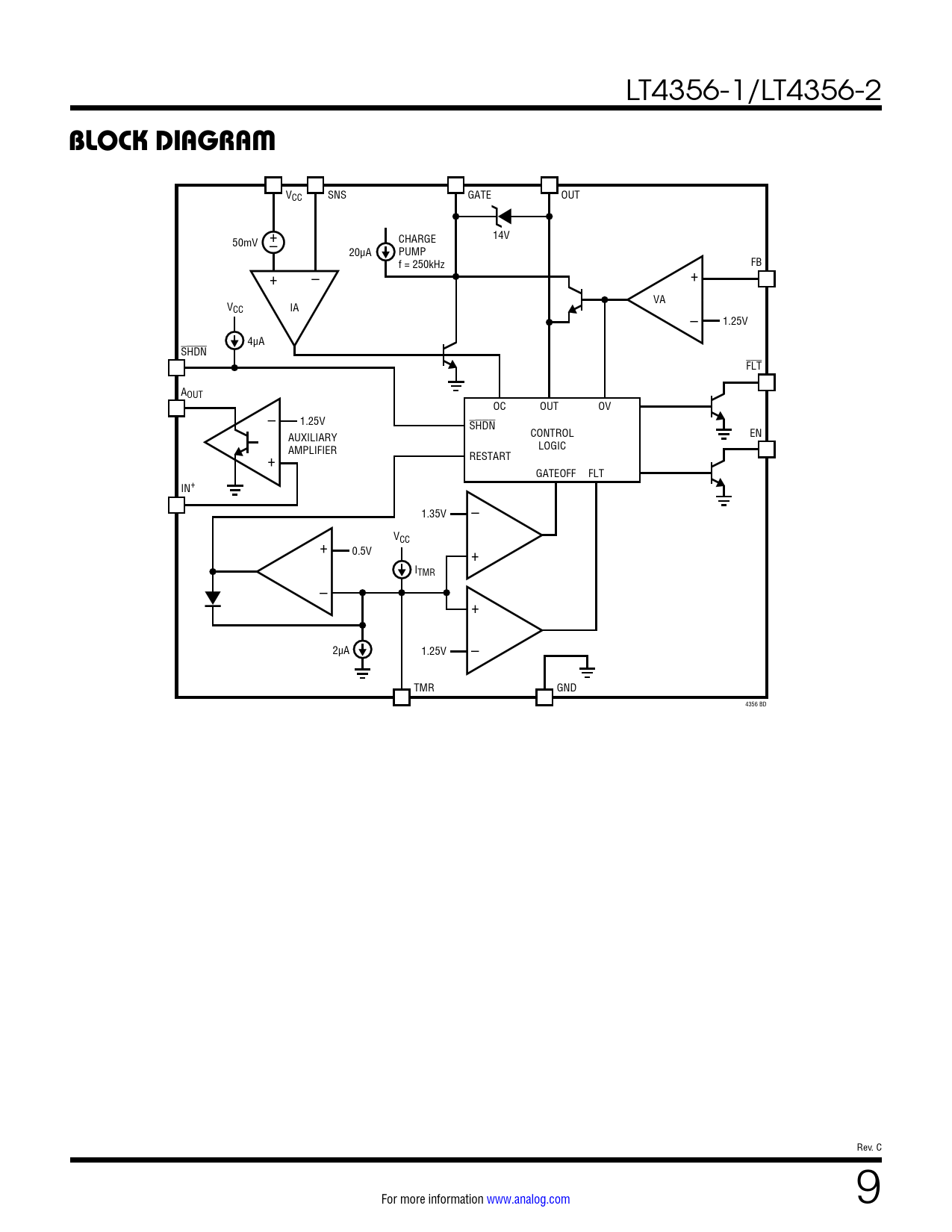

BLOCK DIAGRAM
VCC SNS GATE OUT + 14V 50mV – CHARGE 20μA PUMP f = 250kHz FB + + – VA VCC IA – 1.25V 4μA SHDN FLT AOUT – OC OUT OV 1.25V SHDN AUXILIARY CONTROL EN + AMPLIFIER LOGIC RESTART GATEOFF FLT IN+ 1.35V – VCC + 0.5V + ITMR – + 2µA 1.25V – TMR GND 4356 BD Rev. C For more information www.analog.com 9 Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Operation Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
