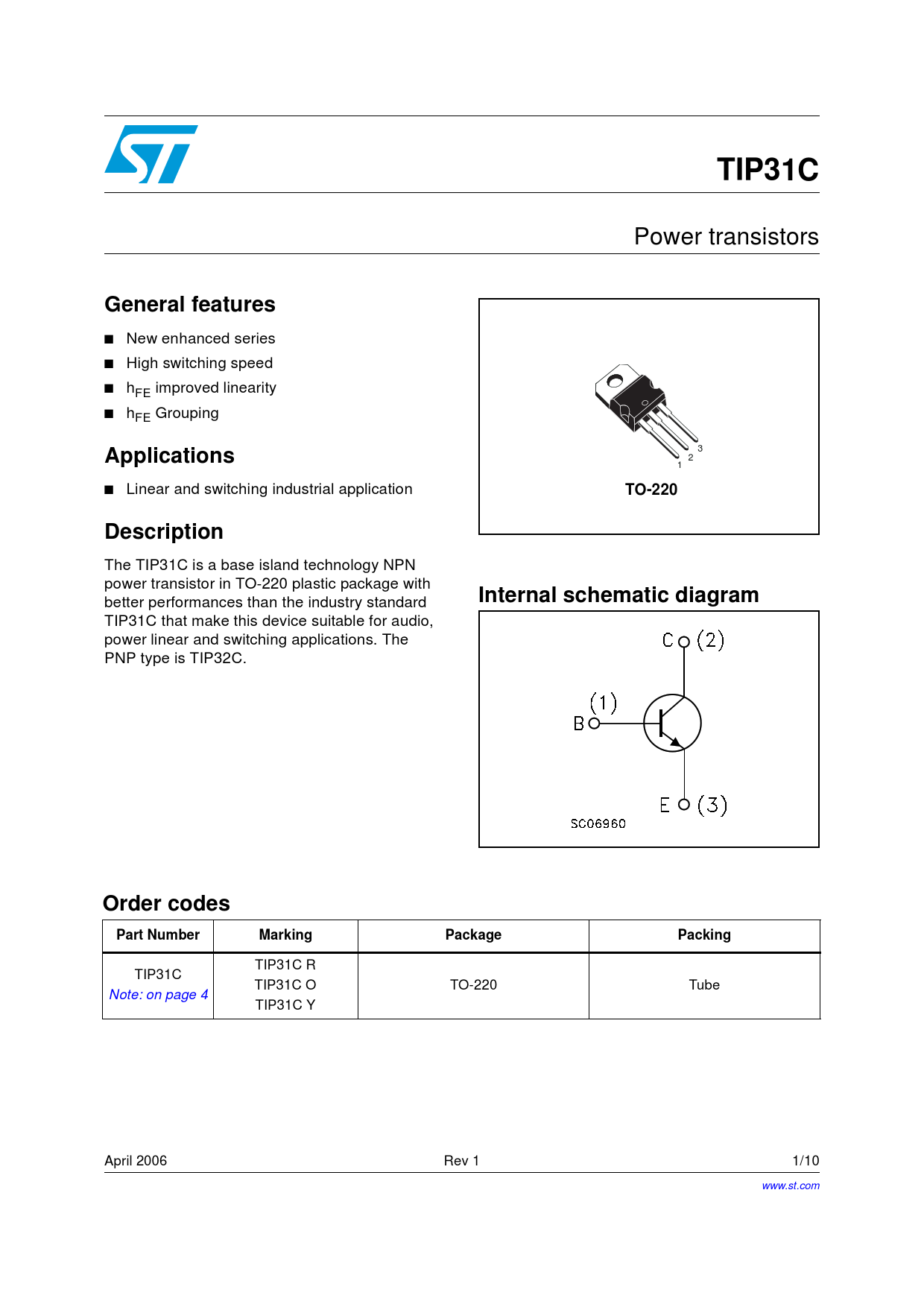

TIP31C
Power transistors
General features
■ New enhanced series ■ High switching speed ■ hFE improved linearity ■ hFE Grouping
Applications
3 2 1 ■ Linear and switching industrial application
TO-220 Description
The TIP31C is a base island technology NPN power transistor in TO-220 plastic package with better performances than the industry standard
Internal schematic diagram
TIP31C that make this device suitable for audio, power linear and switching applications. The PNP type is TIP32C.
Order codes Part Number Marking Package Packing
TIP31C R TIP31C TIP31C O TO-220 Tube Note: on page 4 TIP31C Y April 2006 Rev 1 1/10 www.st.com 10
