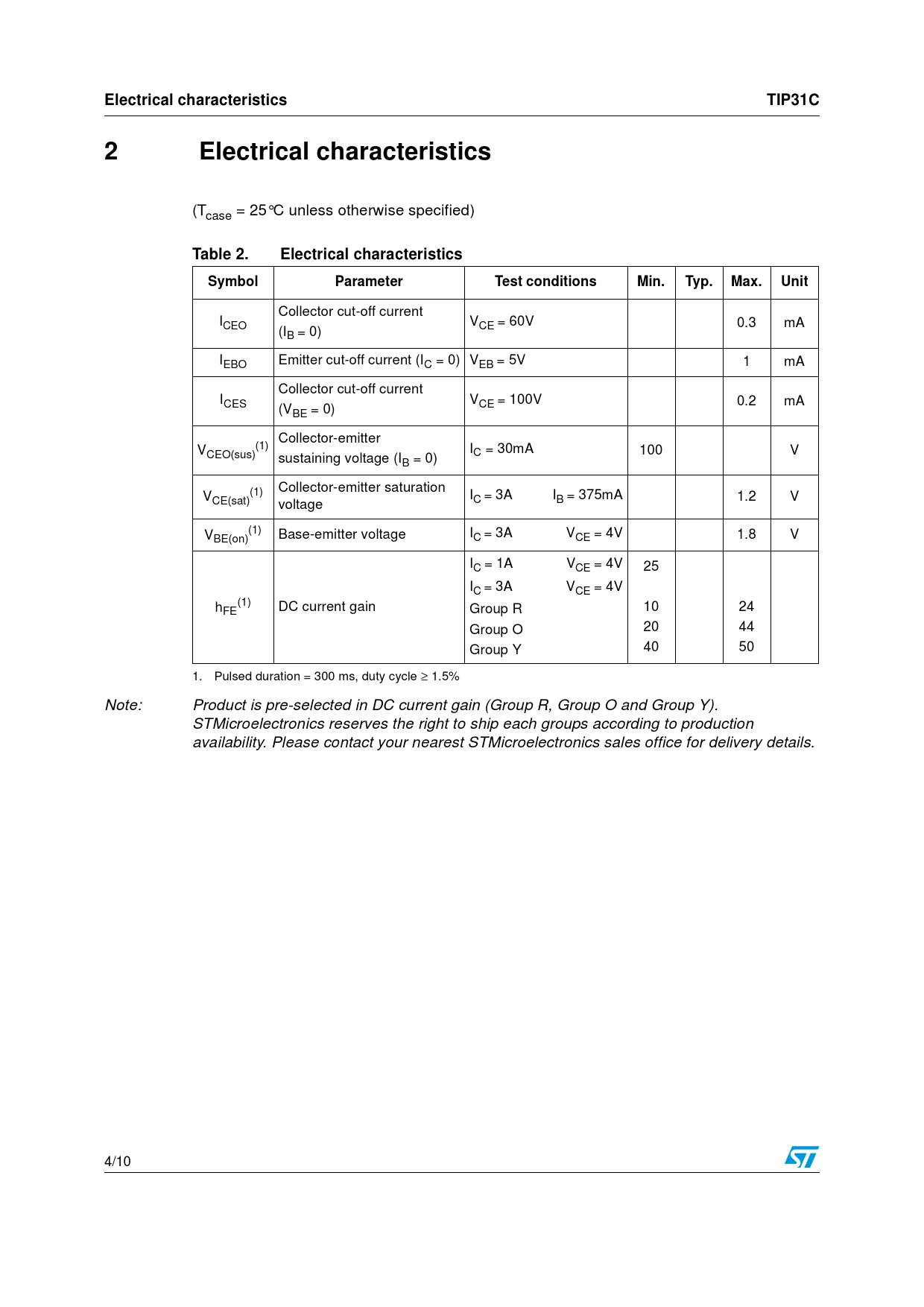

Datasheet TIP31C (STMicroelectronics) - 4

Electrical characteristics TIP31C 2 Electrical characteristics
(Tcase = 25°C unless otherwise specified)
Table 2. Electrical characteristics Symbol Parameter Test conditions Min. Typ. Max. Unit
Collector cut-off current ICEO V (I CE = 60V 0.3 mA B = 0) IEBO Emitter cut-off current (IC = 0) VEB = 5V 1 mA Collector cut-off current ICES V (V CE = 100V 0.2 mA BE = 0) Collector-emitter V (1) I CEO(sus) sustaining voltage (I C = 30mA 100 V B = 0) V (1) Collector-emitter saturation I CE(sat) voltage C = 3A_ IB = 375mA 1.2 V V (1) BE(on) Base-emitter voltage IC = 3A_____ VCE = 4V 1.8 V IC = 1A_ ___ VCE = 4V 25 IC = 3A _____ VCE = 4V h (1) FE DC current gain Group R 10 24 Group O 20 44 Group Y 40 50 1. Pulsed duration = 300 ms, duty cycle ≥ 1.5% Note: Product is pre-selected in DC current gain (Group R, Group O and Group Y). STMicroelectronics reserves the right to ship each groups according to production availability. Please contact your nearest STMicroelectronics sales office for delivery details. 4/10
