Nexperia PMEG120G20ELP 120 V, 2 A Silicon Germanium (SiGe) rectifier

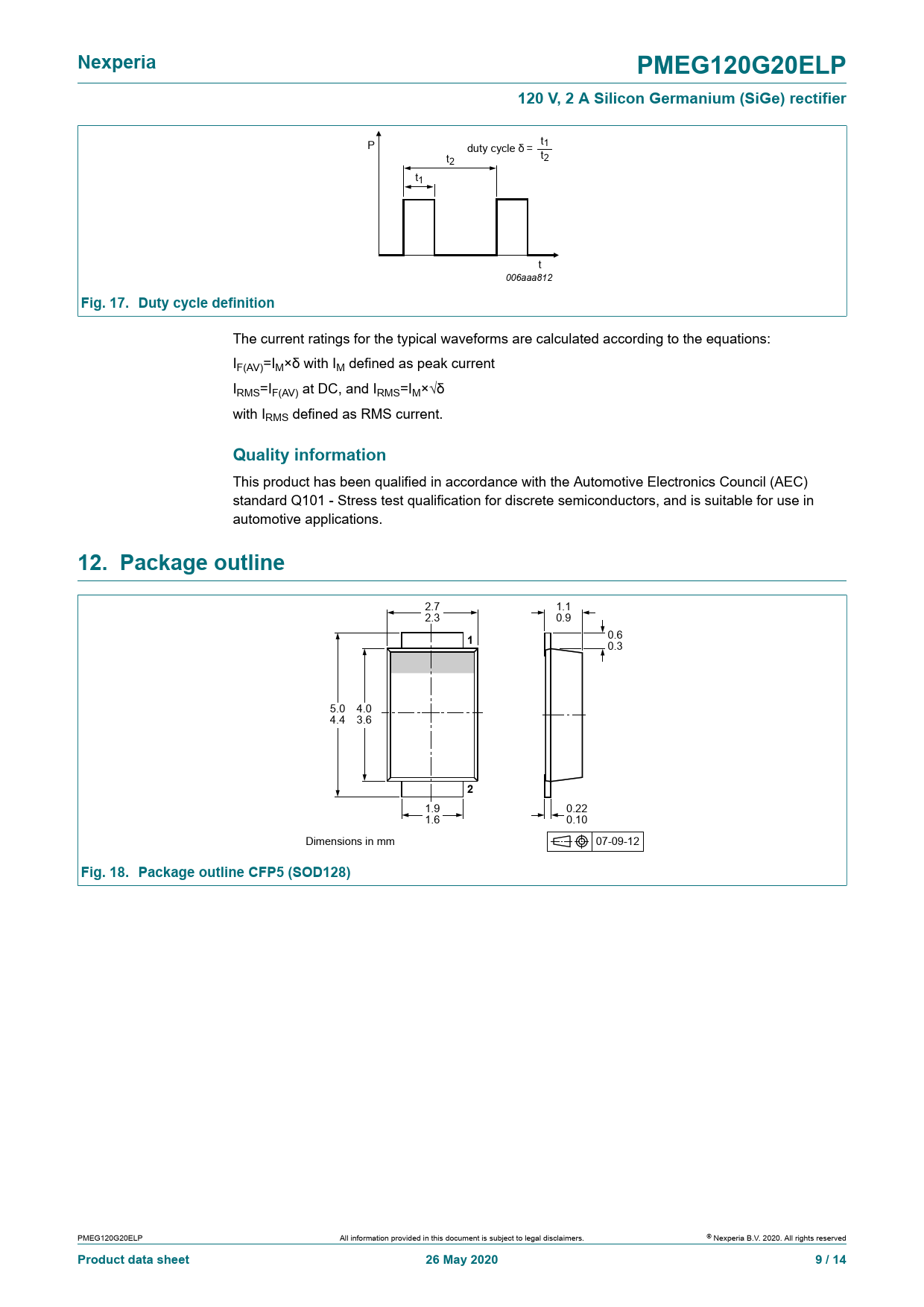

t1 P duty cycle δ = t t 2 2 t1 t 006aaa812
Fig. 17. Duty cycle definition
The current ratings for the typical waveforms are calculated according to the equations: IF(AV)=IM×δ with IM defined as peak current IRMS=IF(AV) at DC, and IRMS=IM×√δ with IRMS defined as RMS current.
Quality information
This product has been qualified in accordance with the Automotive Electronics Council (AEC) standard Q101 - Stress test qualification for discrete semiconductors, and is suitable for use in automotive applications.
12. Package outline
2.7 1.1 2.3 0.9 0.6
1
0.3 5.0 4.0 4.4 3.6
2
1.9 0.22 1.6 0.10 Dimensions in mm 07-09-12
Fig. 18. Package outline CFP5 (SOD128)
