Datasheet PMEG120G20ELP (Nexperia) - 10
| Manufacturer | Nexperia |
| Description | 120 V, 2 A Silicon Germanium (SiGe) rectifier |
| Pages / Page | 14 / 10 — Nexperia. PMEG120G20ELP. 120 V, 2 A Silicon Germanium (SiGe) rectifier. … |
| Revision | 26052020 |
| File Format / Size | PDF / 251 Kb |
| Document Language | English |
Nexperia. PMEG120G20ELP. 120 V, 2 A Silicon Germanium (SiGe) rectifier. 13. Soldering
Model Line for this Datasheet
Text Version of Document
Nexperia PMEG120G20ELP 120 V, 2 A Silicon Germanium (SiGe) rectifier 13. Soldering
6.2 4.4 4.2 solder lands solder resist 3.4 2.5 1.9 2.1 (2×) (2×) solder paste occupied area Dimensions in mm 1.2 (2×) 1.4 (2×) sod128_fr

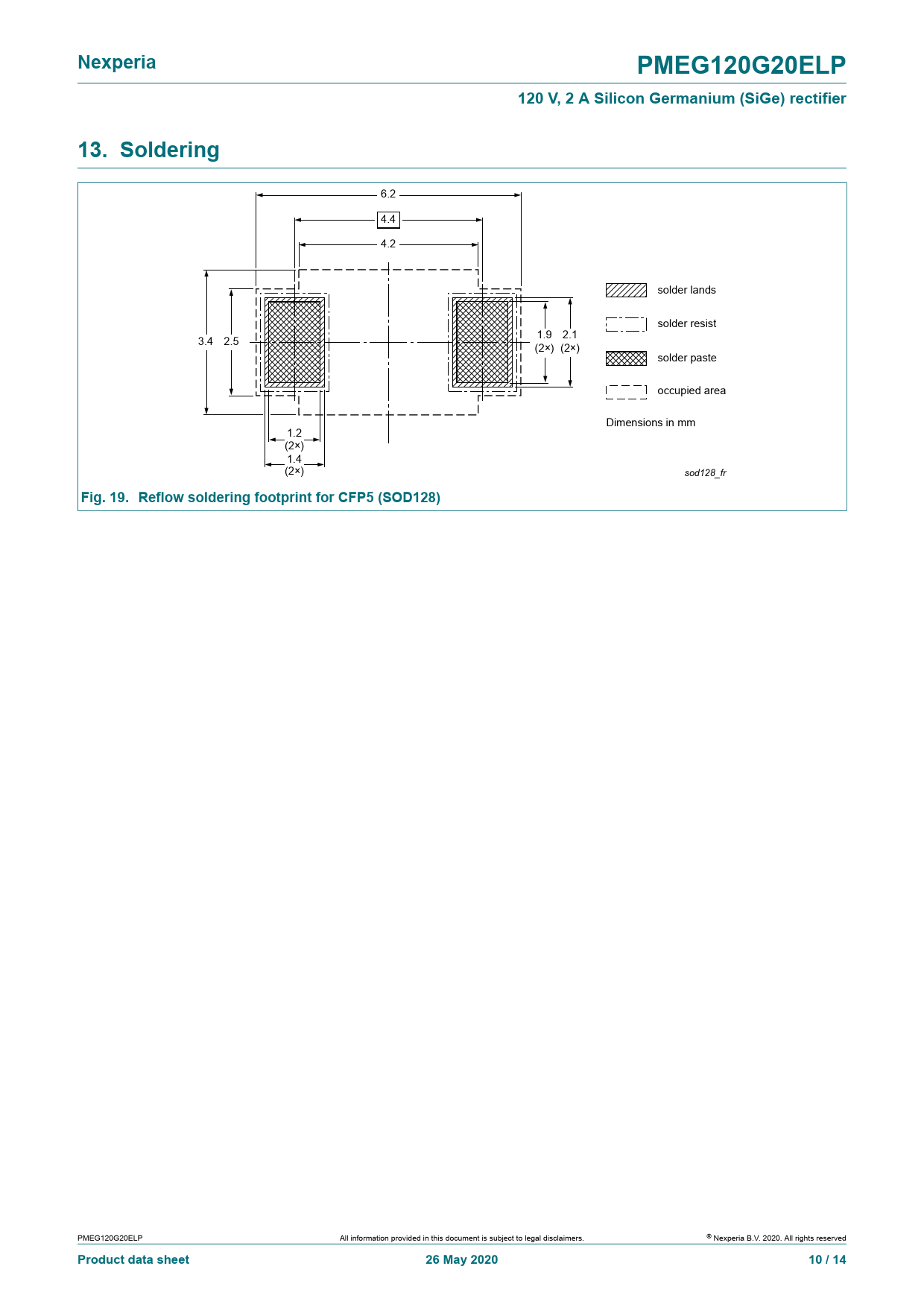

Fig. 19. Reflow soldering footprint for CFP5 (SOD128)
