BLF974P HF / VHF power LDMOS transistor
amp01214 0.2 Zth(j-c) t Z h(j-c) th(j-c) (K/W) (K/W) (K/W) 0.16 (7) (7) (7) (6) (6) (6) (5) (5) (5) (4) (4) (4) 0.12 (3) (3) (3) (2) (2) (2) (1) (1) (1) 0.08 0.04 0 10-7 10-6 10-5 10-4 10-3 10-2 10-1 1 10 tp (s) (1) = 1 % (2) = 2 % (3) = 5 % (4) = 10 % (5) = 20 % (6) = 50 % (7) = 100 % (DC)

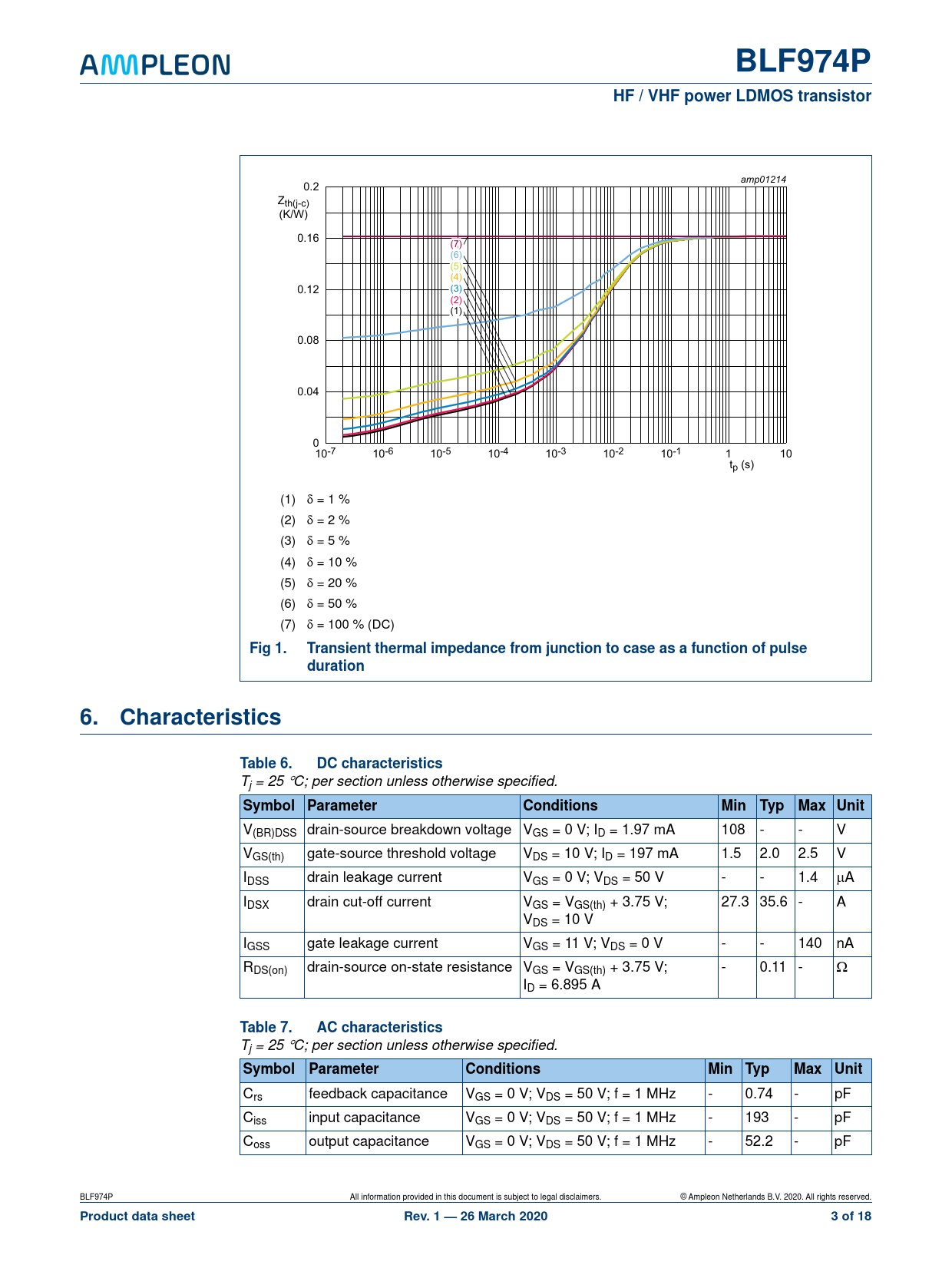

Fig 1. Transient thermal impedance from junction to case as a function of pulse duration 6. Characteristics Table 6. DC characteristics
Tj = 25 C; per section unless otherwise specified.
Symbol Parameter Conditions Min Typ Max Unit
V(BR)DSS drain-source breakdown voltage VGS = 0 V; ID = 1.97 mA 108 - - V VGS(th) gate-source threshold voltage VDS = 10 V; ID = 197 mA 1.5 2.0 2.5 V IDSS drain leakage current VGS = 0 V; VDS = 50 V - - 1.4 A IDSX drain cut-off current VGS = VGS(th) + 3.75 V; 27.3 35.6 - A VDS = 10 V IGSS gate leakage current VGS = 11 V; VDS = 0 V - - 140 nA RDS(on) drain-source on-state resistance VGS = VGS(th) + 3.75 V; - 0.11 - ID = 6.895 A
Table 7. AC characteristics
Tj = 25 C; per section unless otherwise specified.
Symbol Parameter Conditions Min Typ Max Unit
Crs feedback capacitance VGS = 0 V; VDS = 50 V; f = 1 MHz - 0.74 - pF Ciss input capacitance VGS = 0 V; VDS = 50 V; f = 1 MHz - 193 - pF Coss output capacitance VGS = 0 V; VDS = 50 V; f = 1 MHz - 52.2 - pF BLF974P All information provided in this document is subject to legal disclaimers. © Ampleon Netherlands B.V. 2020. All rights reserved.
Product data sheet Rev. 1 — 26 March 2020 3 of 18
