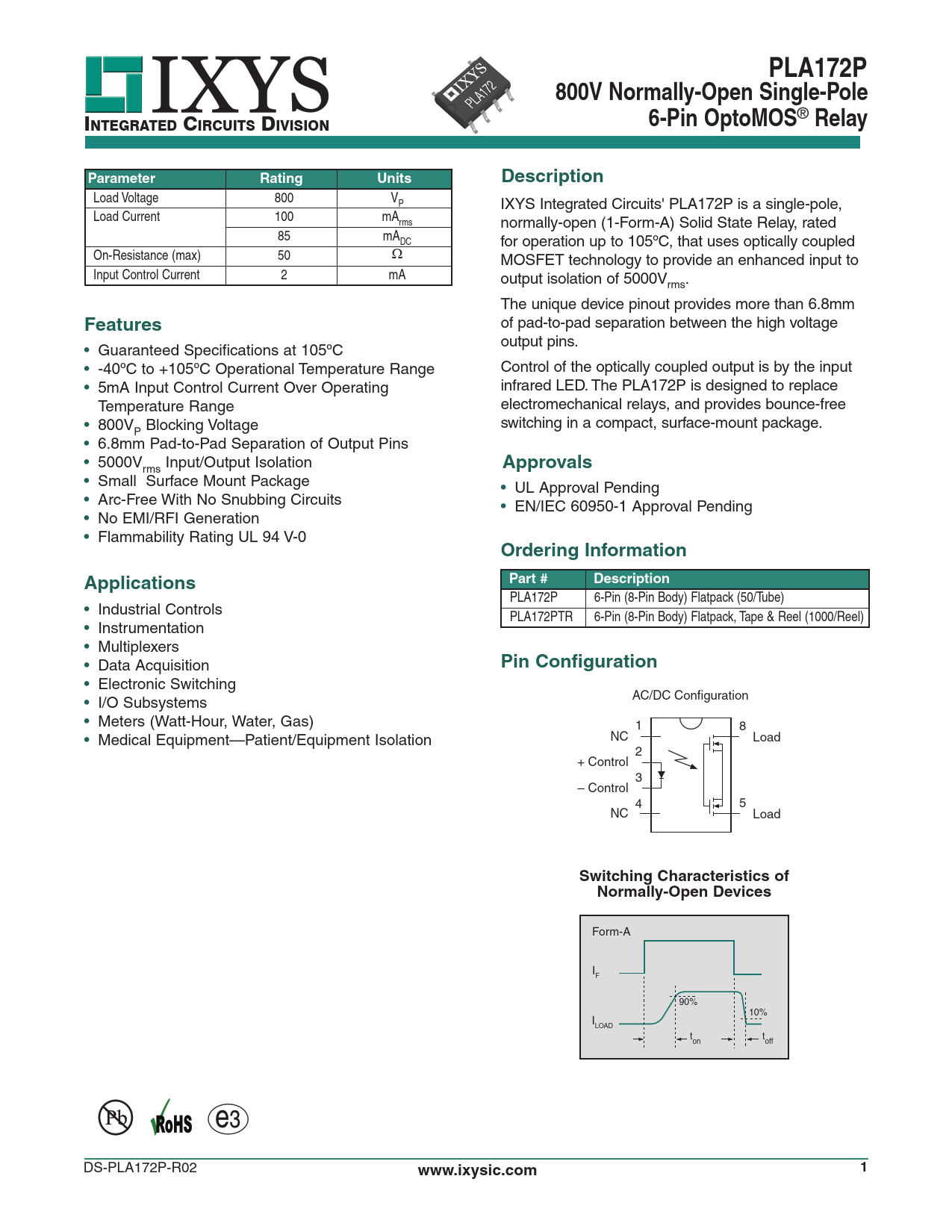

PLA172P 800V Normally-Open Single-Pole
INTEGRATED CIRCUITS DIVISION
6-Pin OptoMOS
®
Relay Parameter Rating Units Description
Load Voltage 800 VP IXYS Integrated Circuits' PLA172P is a single-pole, Load Current 100 mArms normally-open (1-Form-A) Solid State Relay, rated 85 mADC for operation up to 105ºC, that uses optically coupled On-Resistance (max) 50 MOSFET technology to provide an en hanced input to Input Control Current 2 mA output isolation of 5000V . rms The unique device pinout provides more than 6.8mm
Features
of pad-to-pad separation between the high voltage output pins. • Guaranteed Specifications at 105ºC • -40ºC to +105ºC Operational Temperature Range Control of the optically coupled output is by the input • 5mA Input Control Current Over Operating infrared LED. The PLA172P is designed to replace Temperature Range electromechanical relays, and provides bounce-free • 800V Blocking Voltage switching in a compact, surface-mount package. P • 6.8mm Pad-to-Pad Separation of Output Pins • 5000V Input/Output Isolation
Approvals
rms • Small Surface Mount Package • UL Approval Pending • Arc-Free With No Snubbing Circuits • EN/IEC 60950-1 Approval Pending • No EMI/RFI Generation • Flammability Rating UL 94 V-0
Ordering Information Part # Description Applications
PLA172P 6-Pin (8-Pin Body) Flatpack (50/Tube) • Industrial Controls PLA172PTR 6-Pin (8-Pin Body) Flatpack, Tape & Reel (1000/Reel) • Instrumentation • Multiplexers • Data Acquisition
Pin Configuration
• Electronic Switching AC/DC Configuration • I/O Subsystems • Meters (Watt-Hour, Water, Gas) 1 8 • Medical Equipment—Patient/Equipment Isolation NC Load 2 + Control 3 – Control 4 5 NC Load
Switching Characteristics of Normally-Open Devices
Form-A IF 90% 10% ILOAD t t on off DS-PLA172P-R02
www.ixysic.com 1
