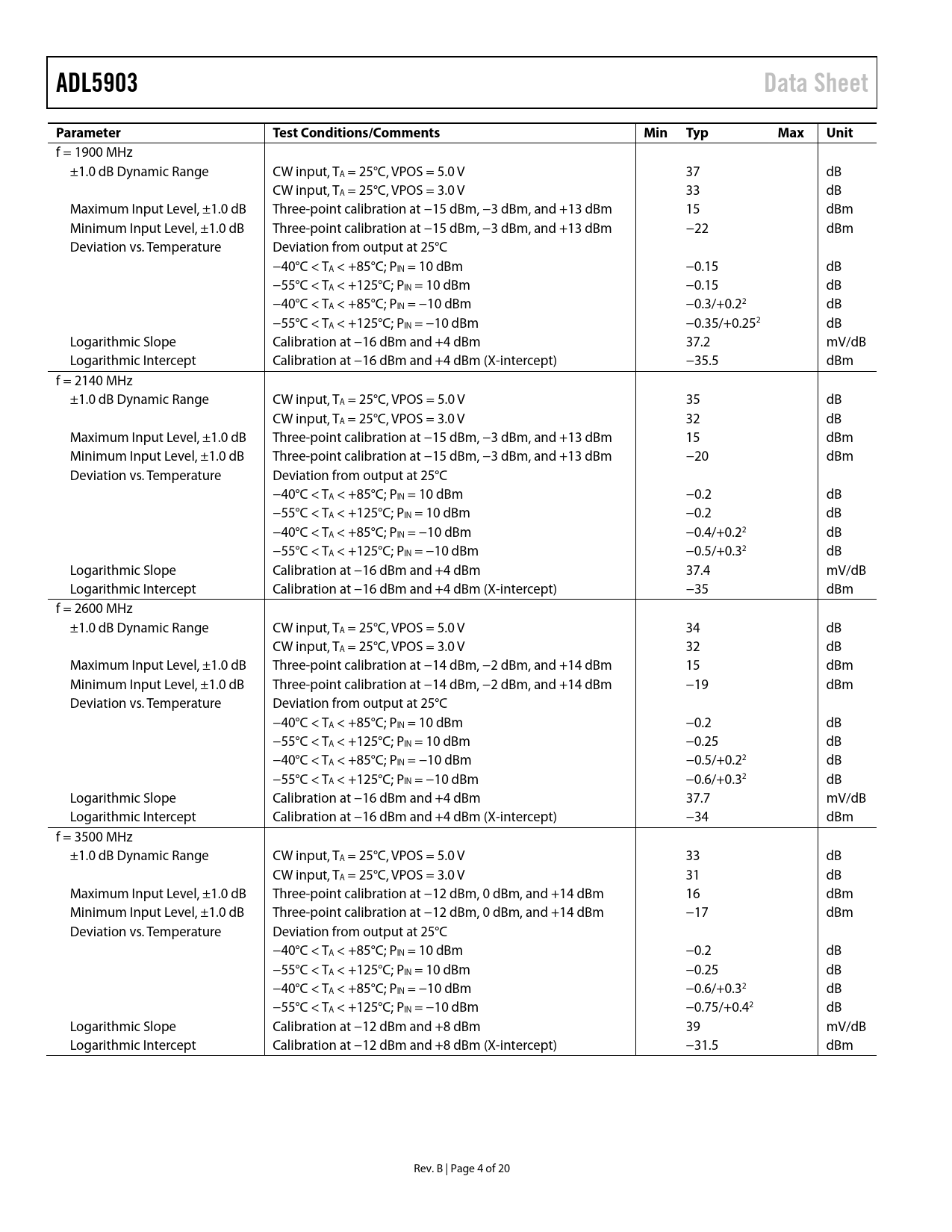

ADL5903 Data Sheet Parameter Test Conditions/Comments Min Typ Max Unit
f = 1900 MHz ±1.0 dB Dynamic Range CW input, TA = 25°C, VPOS = 5.0 V 37 dB CW input, TA = 25°C, VPOS = 3.0 V 33 dB Maximum Input Level, ±1.0 dB Three-point calibration at −15 dBm, −3 dBm, and +13 dBm 15 dBm Minimum Input Level, ±1.0 dB Three-point calibration at −15 dBm, −3 dBm, and +13 dBm −22 dBm Deviation vs. Temperature Deviation from output at 25°C −40°C < TA < +85°C; PIN = 10 dBm −0.15 dB −55°C < TA < +125°C; PIN = 10 dBm −0.15 dB −40°C < TA < +85°C; PIN = −10 dBm −0.3/+0.22 dB −55°C < TA < +125°C; PIN = −10 dBm −0.35/+0.252 dB Logarithmic Slope Calibration at −16 dBm and +4 dBm 37.2 mV/dB Logarithmic Intercept Calibration at −16 dBm and +4 dBm (X-intercept) −35.5 dBm f = 2140 MHz ±1.0 dB Dynamic Range CW input, TA = 25°C, VPOS = 5.0 V 35 dB CW input, TA = 25°C, VPOS = 3.0 V 32 dB Maximum Input Level, ±1.0 dB Three-point calibration at −15 dBm, −3 dBm, and +13 dBm 15 dBm Minimum Input Level, ±1.0 dB Three-point calibration at −15 dBm, −3 dBm, and +13 dBm −20 dBm Deviation vs. Temperature Deviation from output at 25°C −40°C < TA < +85°C; PIN = 10 dBm −0.2 dB −55°C < TA < +125°C; PIN = 10 dBm −0.2 dB −40°C < TA < +85°C; PIN = −10 dBm −0.4/+0.22 dB −55°C < TA < +125°C; PIN = −10 dBm −0.5/+0.32 dB Logarithmic Slope Calibration at −16 dBm and +4 dBm 37.4 mV/dB Logarithmic Intercept Calibration at −16 dBm and +4 dBm (X-intercept) −35 dBm f = 2600 MHz ±1.0 dB Dynamic Range CW input, TA = 25°C, VPOS = 5.0 V 34 dB CW input, TA = 25°C, VPOS = 3.0 V 32 dB Maximum Input Level, ±1.0 dB Three-point calibration at −14 dBm, −2 dBm, and +14 dBm 15 dBm Minimum Input Level, ±1.0 dB Three-point calibration at −14 dBm, −2 dBm, and +14 dBm −19 dBm Deviation vs. Temperature Deviation from output at 25°C −40°C < TA < +85°C; PIN = 10 dBm −0.2 dB −55°C < TA < +125°C; PIN = 10 dBm −0.25 dB −40°C < TA < +85°C; PIN = −10 dBm −0.5/+0.22 dB −55°C < TA < +125°C; PIN = −10 dBm −0.6/+0.32 dB Logarithmic Slope Calibration at −16 dBm and +4 dBm 37.7 mV/dB Logarithmic Intercept Calibration at −16 dBm and +4 dBm (X-intercept) −34 dBm f = 3500 MHz ±1.0 dB Dynamic Range CW input, TA = 25°C, VPOS = 5.0 V 33 dB CW input, TA = 25°C, VPOS = 3.0 V 31 dB Maximum Input Level, ±1.0 dB Three-point calibration at −12 dBm, 0 dBm, and +14 dBm 16 dBm Minimum Input Level, ±1.0 dB Three-point calibration at −12 dBm, 0 dBm, and +14 dBm −17 dBm Deviation vs. Temperature Deviation from output at 25°C −40°C < TA < +85°C; PIN = 10 dBm −0.2 dB −55°C < TA < +125°C; PIN = 10 dBm −0.25 dB −40°C < TA < +85°C; PIN = −10 dBm −0.6/+0.32 dB −55°C < TA < +125°C; PIN = −10 dBm −0.75/+0.42 dB Logarithmic Slope Calibration at −12 dBm and +8 dBm 39 mV/dB Logarithmic Intercept Calibration at −12 dBm and +8 dBm (X-intercept) −31.5 dBm Rev. B | Page 4 of 20 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS MEASUREMENT SETUPS THEORY OF OPERATION RF INPUT INTERFACE BASIC CONNECTIONS CHOOSING A VALUE FOR CRMS DEVICE CALIBRATION AND ERROR CALCULATION EVALUATION BOARD SCHEMATIC AND CONFIGURATION OPTIONS OUTLINE DIMENSIONS ORDERING GUIDE
