Datasheet ADL5903 (Analog Devices) - 6
| Manufacturer | Analog Devices |
| Description | 200 MHz to 6 GHz 35 dB TruPwr Detector |
| Pages / Page | 20 / 6 — ADL5903. Data Sheet. ABSOLUTE MAXIMUM RATINGS. Table 2. Parameter Rating. … |
| Revision | B |
| File Format / Size | PDF / 1.4 Mb |
| Document Language | English |

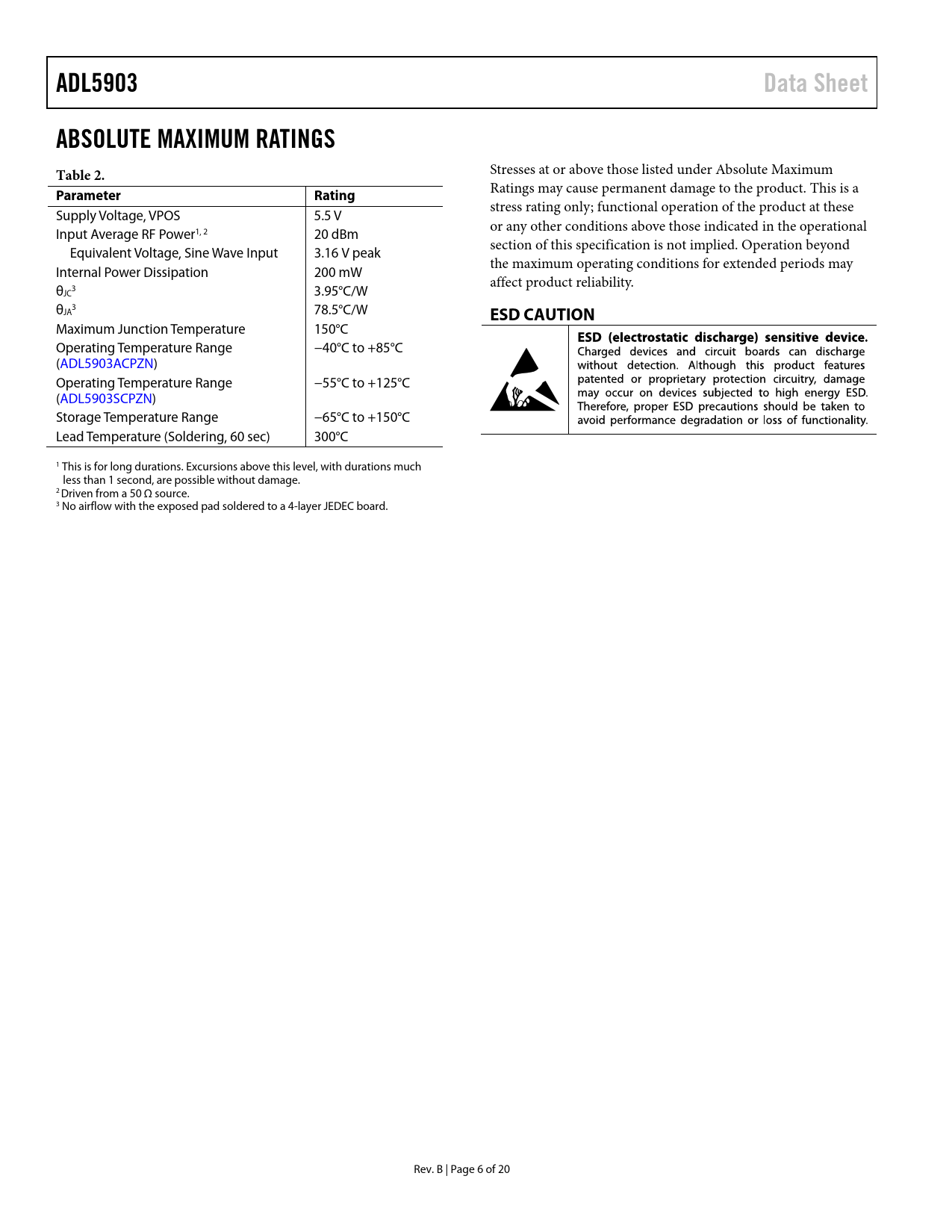

ADL5903. Data Sheet. ABSOLUTE MAXIMUM RATINGS. Table 2. Parameter Rating. ESD CAUTION
Model Line for this Datasheet
Text Version of Document
ADL5903 Data Sheet ABSOLUTE MAXIMUM RATINGS Table 2.
Stresses at or above those listed under Absolute Maximum Ratings may cause permanent damage to the product. This is a
Parameter Rating
stress rating only; functional operation of the product at these Supply Voltage, VPOS 5.5 V or any other conditions above those indicated in the operational Input Average RF Power1, 2 20 dBm section of this specification is not implied. Operation beyond Equivalent Voltage, Sine Wave Input 3.16 V peak the maximum operating conditions for extended periods may Internal Power Dissipation 200 mW affect product reliability. θ 3 JC 3.95°C/W θ 3 JA 78.5°C/W
