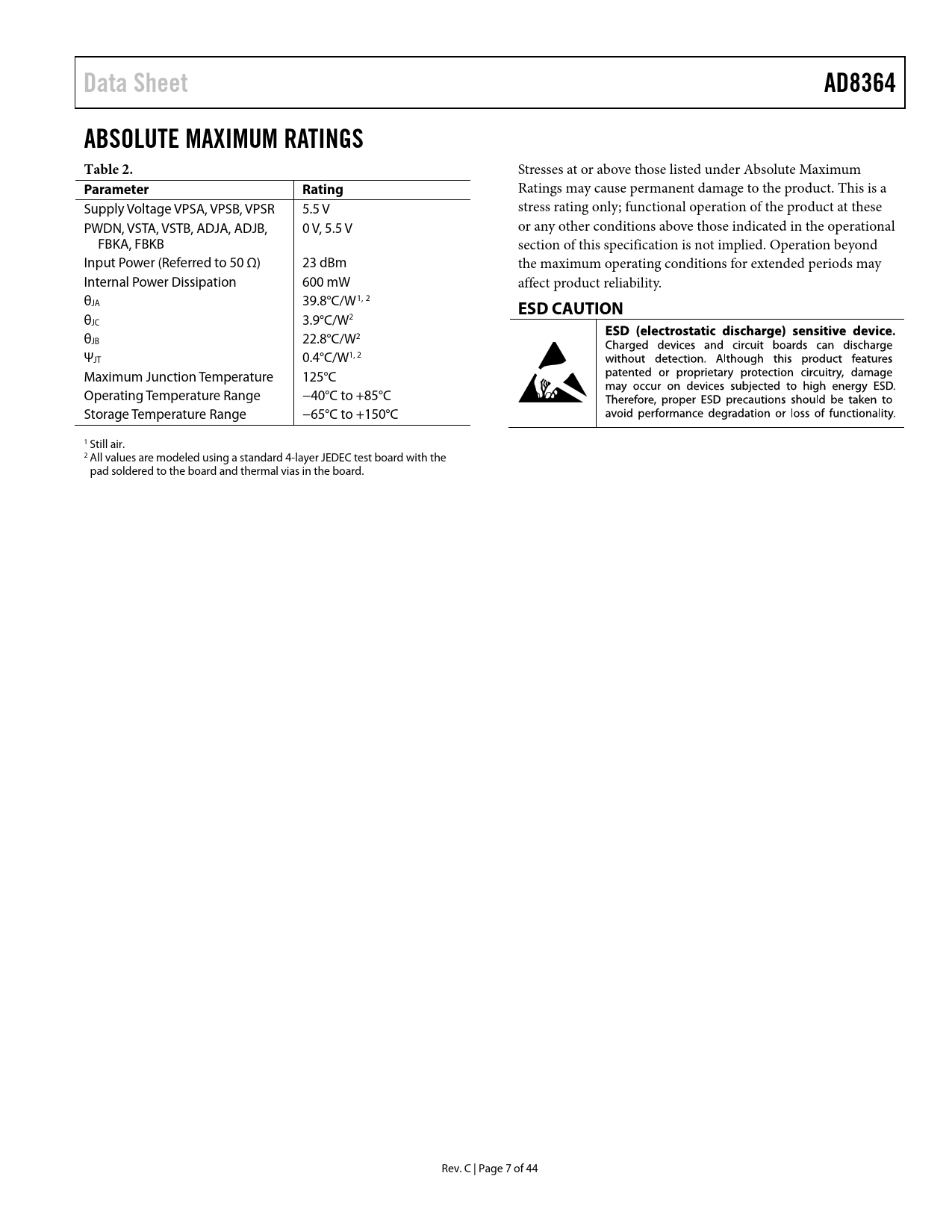

Data Sheet. AD8364. ABSOLUTE MAXIMUM RATINGS Table 2. Parameter. Rating. ESD CAUTION
Model Line for this Datasheet
Text Version of Document
Data Sheet AD8364 ABSOLUTE MAXIMUM RATINGS Table 2.
Stresses at or above those listed under Absolute Maximum
Parameter Rating
Ratings may cause permanent damage to the product. This is a Supply Voltage VPSA, VPSB, VPSR 5.5 V stress rating only; functional operation of the product at these PWDN, VSTA, VSTB, ADJA, ADJB, 0 V, 5.5 V or any other conditions above those indicated in the operational FBKA, FBKB section of this specification is not implied. Operation beyond Input Power (Referred to 50 Ω) 23 dBm the maximum operating conditions for extended periods may Internal Power Dissipation 600 mW affect product reliability. θJA 39.8°C/W1, 2
ESD CAUTION
θJC 3.9°C/W2 θJB 22.8°C/W2 ΨJT 0.4°C/W1, 2 Maximum Junction Temperature 125°C Operating Temperature Range −40°C to +85°C Storage Temperature Range −65°C to +150°C 1 Still air. 2 All values are modeled using a standard 4-layer JEDEC test board with the pad soldered to the board and thermal vias in the board. Rev. C | Page 7 of 44 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION SQUARE LAW DETECTOR AND AMPLITUDE TARGET RF INPUT INTERFACE OFFSET COMPENSATION TEMPERATURE SENSOR INTERFACE VREF INTERFACE POWER-DOWN INTERFACE VST[A, B] INTERFACE OUT[A, B, P, N] OUTPUTS MEASUREMENT CHANNEL DIFFERENCE OUTPUT USING OUT[P, N] CONTROLLER MODE RF MEASUREMENT MODE BASIC CONNECTIONS CONTROLLER MODE BASIC CONNECTIONS Automatic Power Control Automatic Gain Control CONSTANT OUTPUT POWER OPERATION GAIN-STABLE TRANSMITTER/RECEIVER TEMPERATURE COMPENSATION ADJUSTMENT DEVICE CALIBRATION AND ERROR CALCULATION SELECTING CALIBRATION POINTS TO IMPROVE ACCURACY OVER A REDUCED RANGE CHANNEL ISOLATION ALTERING THE SLOPE CHOOSING THE RIGHT VALUE FOR CHP[A, B] AND CLP[A, B] RF BURST RESPONSE TIME SINGLE-ENDED INPUT OPERATION PRINTED CIRCUIT BOARD CONSIDERATIONS PACKAGE CONSIDERATIONS DESCRIPTION OF CHARACTERIZATION BASIS FOR ERROR CALCULATIONS EVALUATION BOARD OUTLINE DIMENSIONS ORDERING GUIDE
