TLE7272-2. Electrical Characteristics. 5.1. Electrical Characteristics Voltage Regulator. Electrical Characteristics V
Model Line for this Datasheet
Text Version of Document
link to page 8

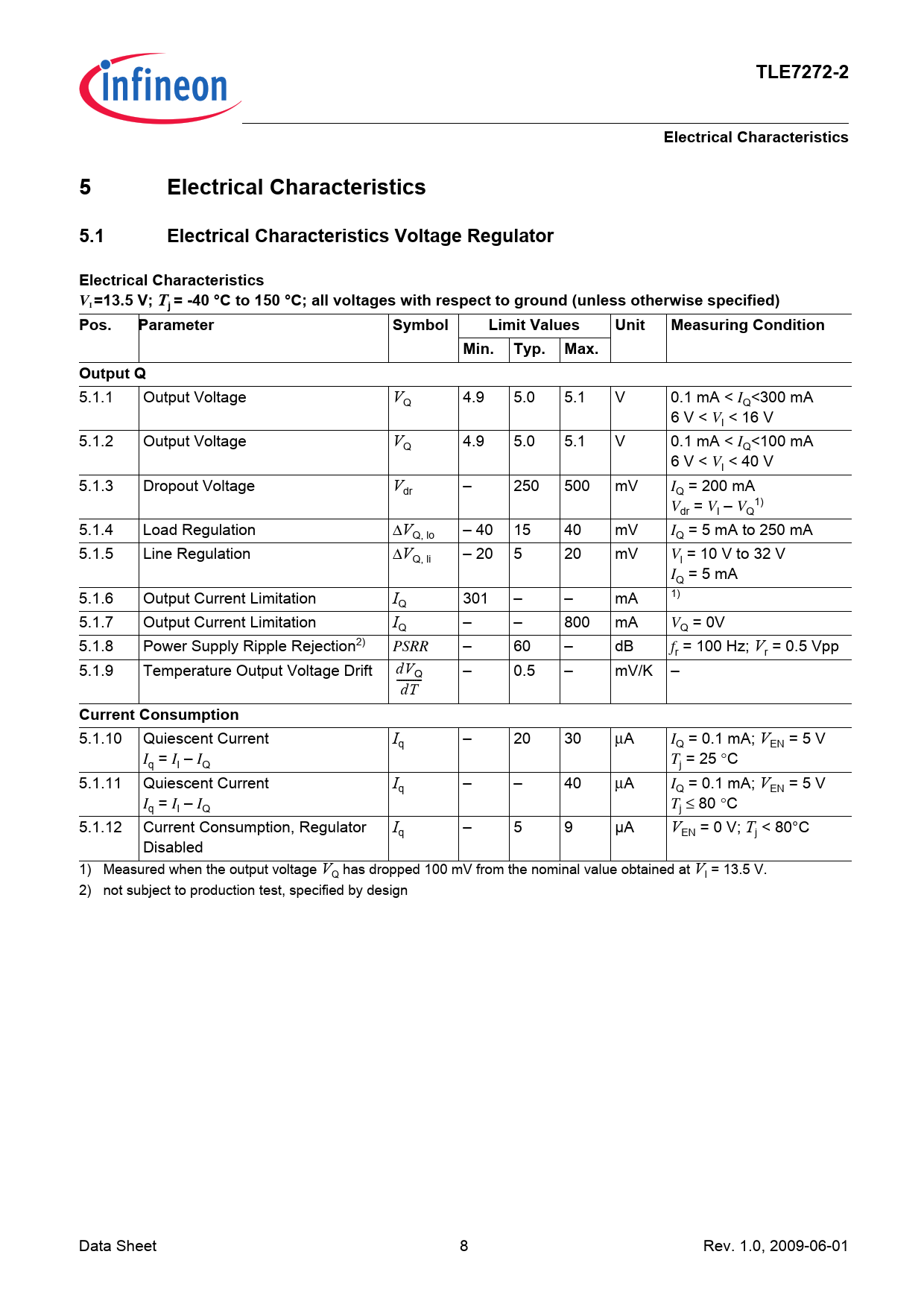

TLE7272-2 Electrical Characteristics 5 Electrical Characteristics 5.1 Electrical Characteristics Voltage Regulator Electrical Characteristics V =13.5 V; T I j = -40 °C to 150 °C; all voltages with respect to ground (unless otherwise specified) Pos. Parameter Symbol Limit Values Unit Measuring Condition Min. Typ. Max. Output Q
5.1.1 Output Voltage VQ 4.9 5.0 5.1 V 0.1 mA < IQ<300 mA 6 V < VI < 16 V 5.1.2 Output Voltage VQ 4.9 5.0 5.1 V 0.1 mA < IQ<100 mA 6 V < VI < 40 V 5.1.3 Dropout Voltage Vdr – 250 500 mV IQ = 200 mA V 1) dr = VI – VQ 5.1.4 Load Regulation ∆VQ, lo – 40 15 40 mV IQ = 5 mA to 250 mA 5.1.5 Line Regulation ∆VQ, li – 20 5 20 mV Vl = 10 V to 32 V IQ = 5 mA 5.1.6 Output Current Limitation IQ 301 – – mA 1) 5.1.7 Output Current Limitation IQ – – 800 mA V PSRR – dV Q = 0V 5.1.8 Power Supply Ripple Rejection2) 60 – dB fr = 100 Hz; Vr = 0.5 Vpp 5.1.9 Temperature Output Voltage Drift Q – 0.5 – mV/K – ------ dT
