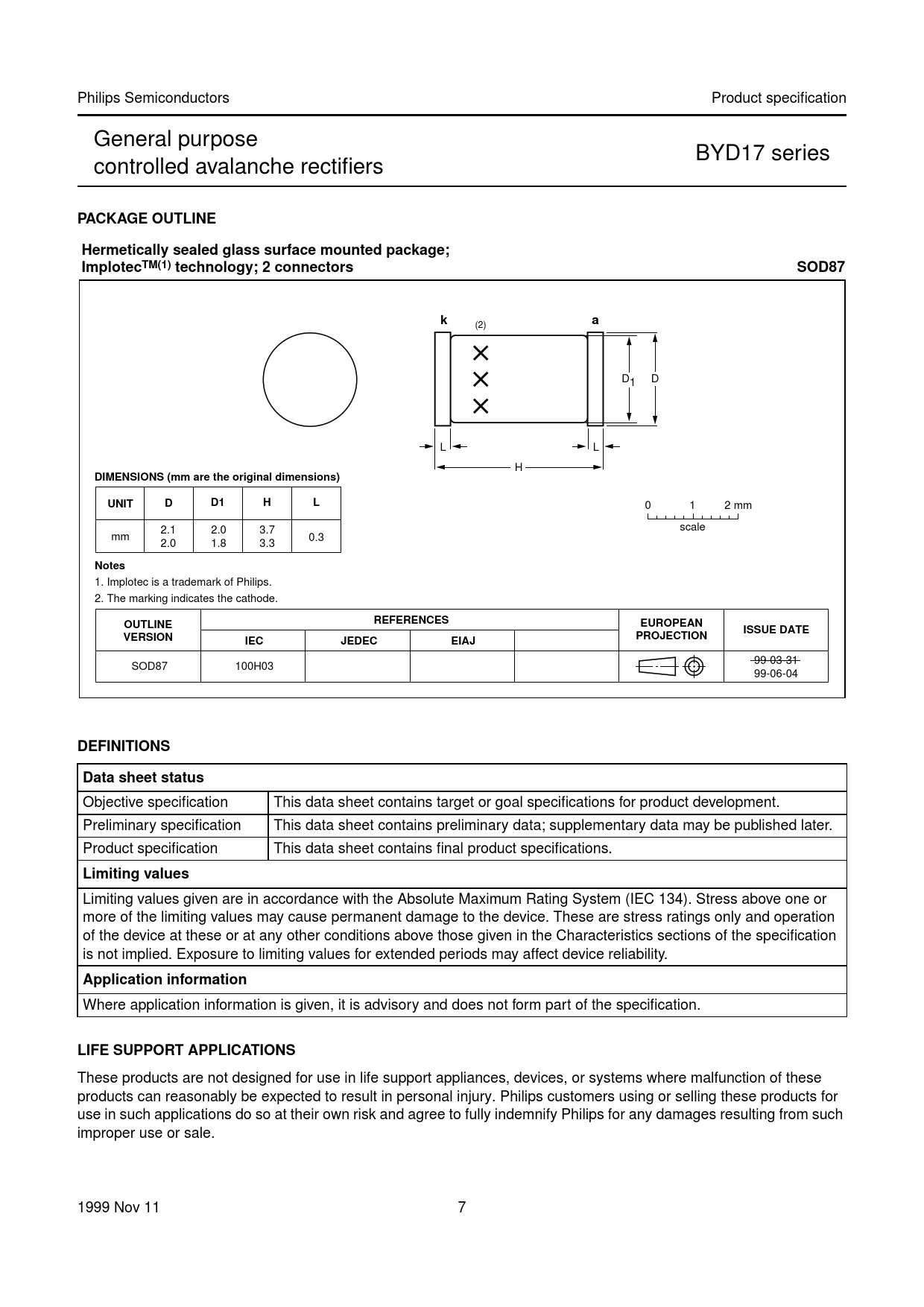

PACKAGE OUTLINE. Hermetically sealed glass surface mounted package; ImplotecTM(1) technology; 2 connectors. SOD87
Model Line for this Datasheet
Text Version of Document
Philips Semiconductors Product specification General purpose BYD17 series controlled avalanche rectifiers
PACKAGE OUTLINE Hermetically sealed glass surface mounted package; ImplotecTM(1) technology; 2 connectors SOD87 k
(2)
a
D D 1 L L H
DIMENSIONS (mm are the original dimensions) UNIT D D1 H L
0 1 2 mm 2.1 2.0 3.7 scale mm 0.3 2.0 1.8 3.3
Notes
1. Implotec is a trademark of Philips. 2. The marking indicates the cathode.
REFERENCES OUTLINE EUROPEAN ISSUE DATE VERSION PROJECTION IEC JEDEC EIAJ
99-03-31 SOD87 100H03 99-06-04
