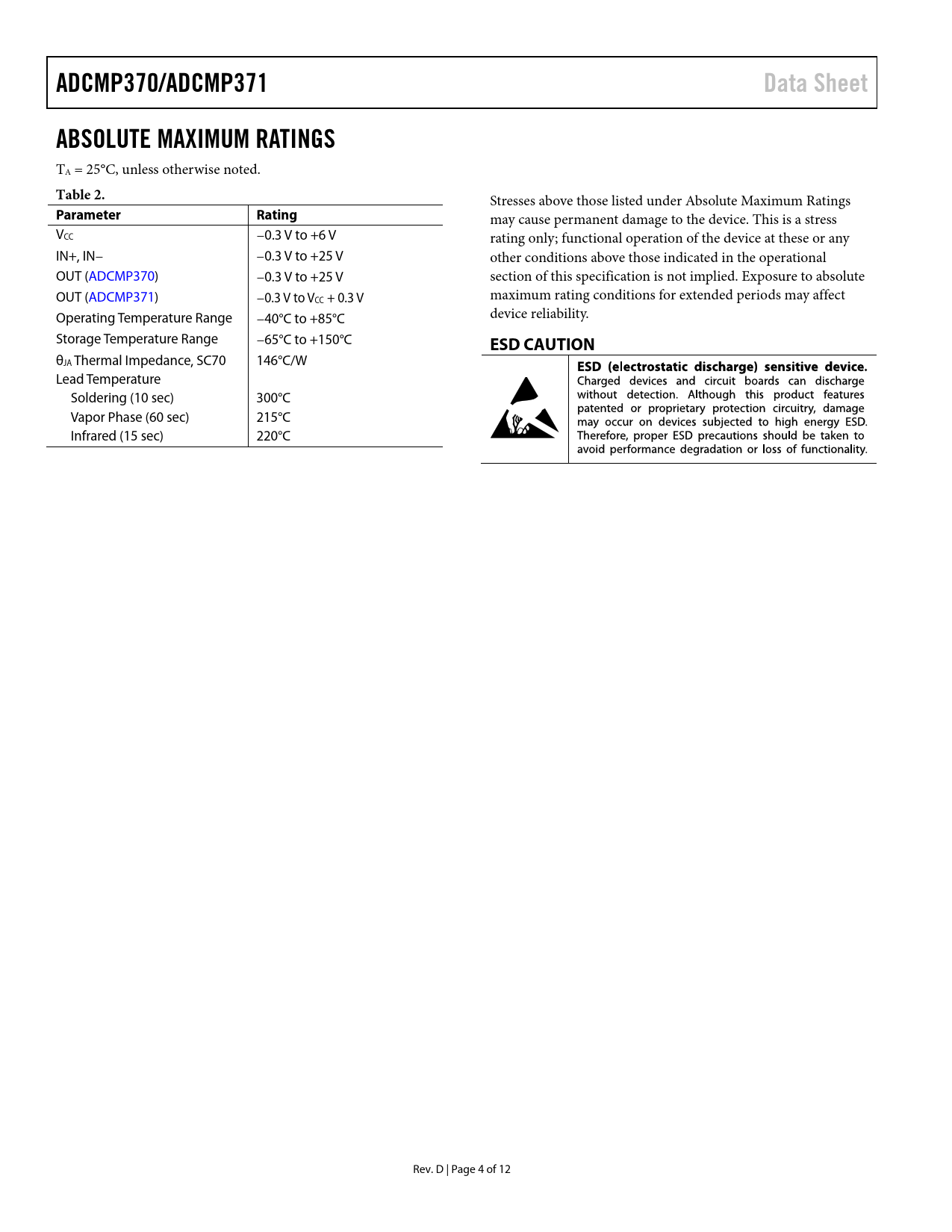

ADCMP370/ADCMP371. Data Sheet. ABSOLUTE MAXIMUM RATINGS. Table 2. Parameter. Rating. ESD CAUTION
Model Line for this Datasheet
Text Version of Document
ADCMP370/ADCMP371 Data Sheet ABSOLUTE MAXIMUM RATINGS
TA = 25°C, unless otherwise noted.
Table 2.
Stresses above those listed under Absolute Maximum Ratings
Parameter Rating
may cause permanent damage to the device. This is a stress VCC −0.3 V to +6 V rating only; functional operation of the device at these or any IN+, IN− −0.3 V to +25 V other conditions above those indicated in the operational OUT (ADCMP370) −0.3 V to +25 V section of this specification is not implied. Exposure to absolute OUT (ADCMP371) −0.3 V to V maximum rating conditions for extended periods may affect CC + 0.3 V Operating Temperature Range −40°C to +85°C device reliability. Storage Temperature Range −65°C to +150°C
ESD CAUTION
θJA Thermal Impedance, SC70 146°C/W Lead Temperature Soldering (10 sec) 300°C Vapor Phase (60 sec) 215°C Infrared (15 sec) 220°C Rev. D | Page 4 of 12 Document Outline Features Applications General Description Functional Block Diagram Table of Contents Revision History Specifications Absolute Maximum Ratings ESD Caution Pin Configurations and Function Description Typical Performance Characteristics Applications Basic Comparator Adding Hysteresis Outline Dimensions Ordering Guide
