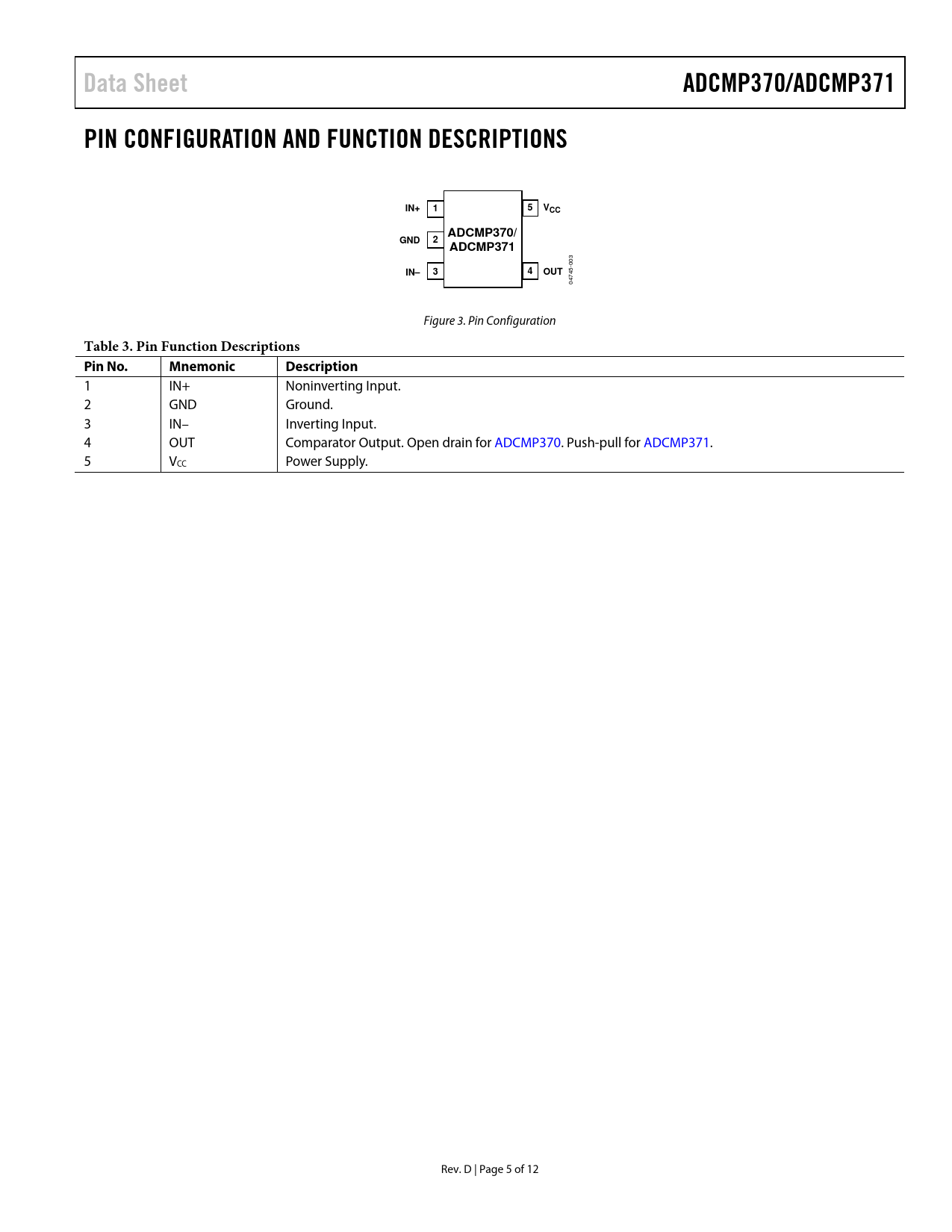

Data SheetADCMP370/ADCMP371PIN CONFIGURATION AND FUNCTION DESCRIPTIONSIN+15VCCADCMP370/GND2ADCMP371IN–34OUT 04745-003 Figure 3. Pin Configuration Table 3. Pin Function Descriptions Pin No.MnemonicDescription 1 IN+ Noninverting Input. 2 GND Ground. 3 IN– Inverting Input. 4 OUT Comparator Output. Open drain for ADCMP370. Push-pull for ADCMP371. 5 VCC Power Supply. Rev. D | Page 5 of 12 Document Outline Features Applications General Description Functional Block Diagram Table of Contents Revision History Specifications Absolute Maximum Ratings ESD Caution Pin Configurations and Function Description Typical Performance Characteristics Applications Basic Comparator Adding Hysteresis Outline Dimensions Ordering Guide
