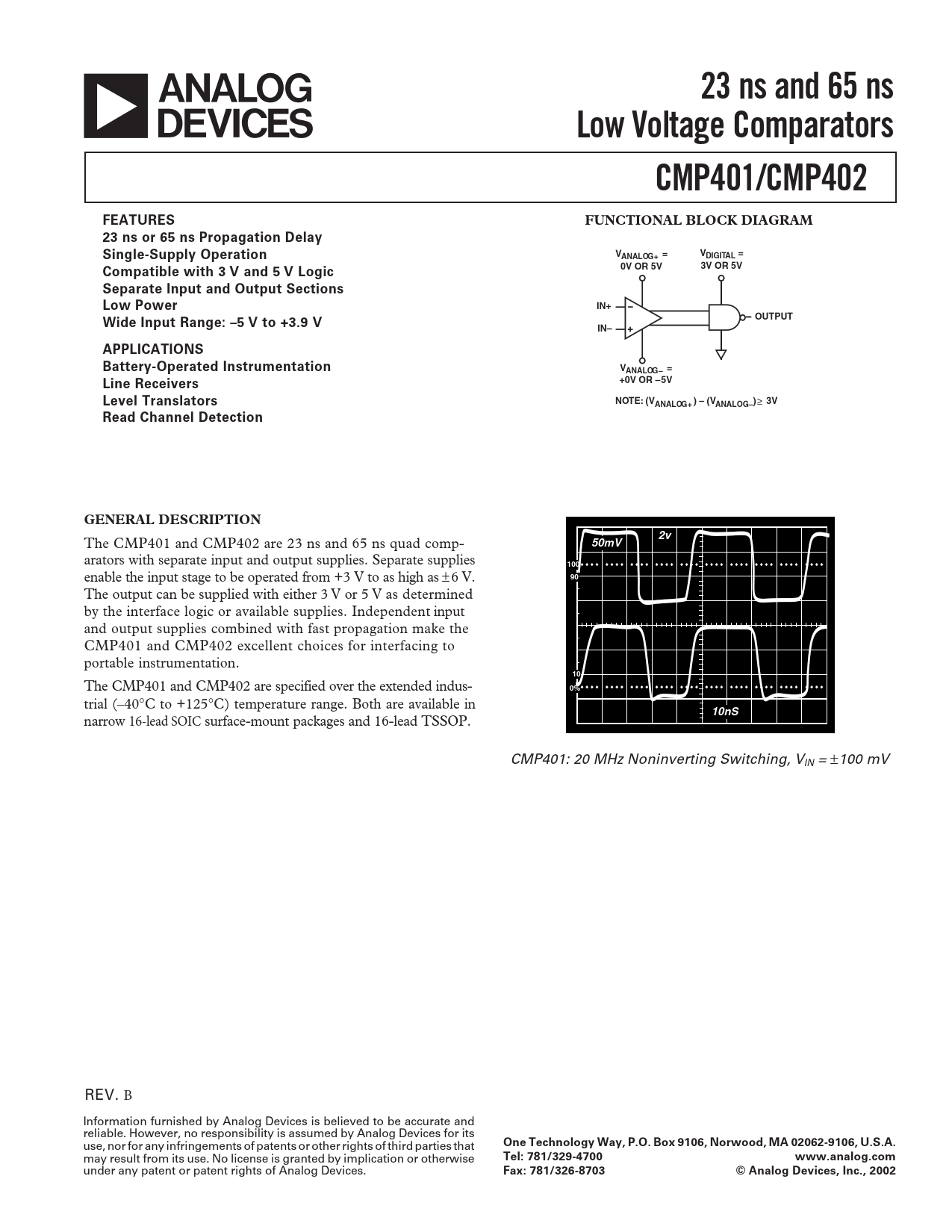

23 ns and 65 ns. Low Voltage Comparators. CMP401/CMP402. FEATURES. FUNCTIONAL BLOCK DIAGRAM
Model Line for this Datasheet
Text Version of Document
a
23 ns and 65 ns Low Voltage Comparators CMP401/CMP402 FEATURES FUNCTIONAL BLOCK DIAGRAM 23 ns or 65 ns Propagation Delay Single-Supply Operation V V ANALOG+ = DIGITAL = 0V OR 5V 3V OR 5V Compatible with 3 V and 5 V Logic Separate Input and Output Sections Low Power IN+ OUTPUT Wide Input Range: –5 V to +3.9 V IN– APPLICATIONS Battery-Operated Instrumentation VANALOG– = +0V OR –5V Line Receivers Level Translators NOTE: (VANALOG+ ) – (VANALOG–) 3V Read Channel Detection GENERAL DESCRIPTION 2v
The CMP401 and CMP402 are 23 ns and 65 ns quad comp-
50mV
arators with separate input and output supplies. Separate supplies
100 90
enable the input stage to be operated from +3 V to as high as ±6 V. The output can be supplied with either 3 V or 5 V as determined by the interface logic or available supplies. Independent input and output supplies combined with fast propagation make the CMP401 and CMP402 excellent choices for interfacing to portable instrumentation.
10
The CMP401 and CMP402 are specified over the extended indus-
0%
trial (–40°C to +125°C) temperature range. Both are available in
10nS
narrow 16-lead SOIC surface-mount packages and 16-lead TSSOP. CMP401: 20 MHz Noninverting Switching, VIN = ±100 mV REV. B Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that
