Datasheet HMC674LC3C, HMC674LP3E (Analog Devices) - 8

ManufacturerAnalog Devices
Description9.3 GHz Latched Comparator with RSPECL Output Stage
Pages / Page14 / 8 — HMC674LC3C/HMC674LP3E. Data Sheet. INTERFACE SCHEMATICS. VTP,. VCCO. VTN. …
RevisionK
File Format / SizePDF / 331 Kb
Document LanguageEnglish

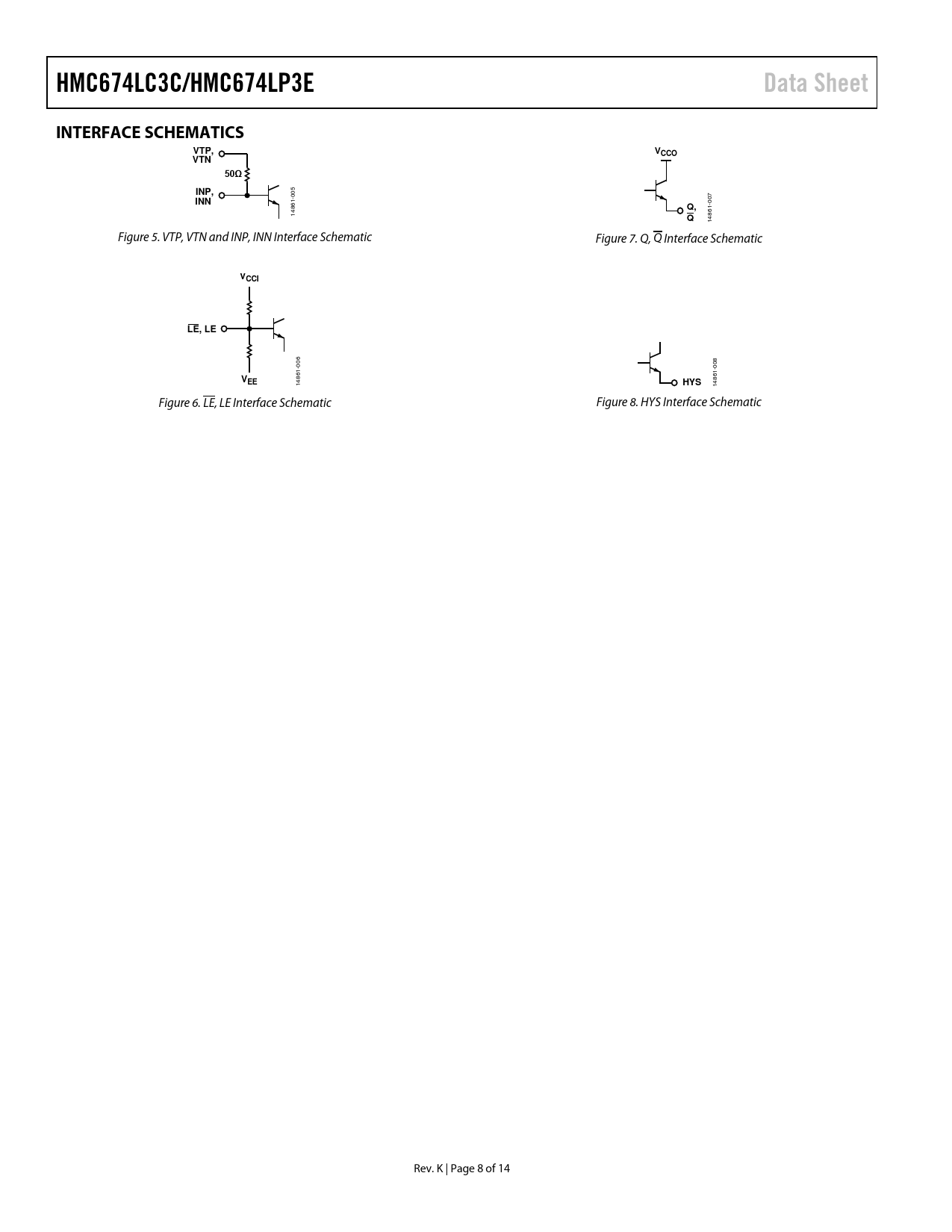

HMC674LC3C/HMC674LP3E. Data Sheet. INTERFACE SCHEMATICS. VTP,. VCCO. VTN. 50Ω. INP,. INN. VCCI. LE, LE. VEE. HYS

HMC674LC3C/HMC674LP3E Data Sheet INTERFACE SCHEMATICS VTP, VCCO VTN 50Ω INP, INN VCCI LE, LE VEE HYS

Model Line for this Datasheet

Text Version of Document

HMC674LC3C/HMC674LP3E Data Sheet INTERFACE SCHEMATICS VTP, VCCO VTN 50Ω INP,
005
INN
007
Q,
14861-
Q
14861- Figure 5. VTP, VTN and INP, INN Interface Schematic Figure 7. Q, Q Interface Schematic
VCCI LE, LE
006 008
VEE
14861-
HYS
14861- Figure 6. LE, LE Interface Schematic Figure 8. HYS Interface Schematic Rev. K | Page 8 of 14 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS LATCH ENABLE (LE/) SPECIFICATIONS DC OUTPUT SPECIFICATIONS AC SPECIFICATIONS POWER SUPPLY SPECIFICATIONS TIMING DESCRIPTIONS Timing Diagram ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS INTERFACE SCHEMATICS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION POWER SEQUENCING APPLICATIONS INFORMATION EVALUATION PRINTED CIRCUIT BOARD (PCB) APPLICATION CIRCUITS OUTLINE DIMENSIONS ORDERING GUIDE
