Datasheet AD8561 (Analog Devices)
| Manufacturer | Analog Devices |
| Description | Ultrafast 7 ns Single Supply Comparator |
| Pages / Page | 12 / 1 — Ultrafast 7 ns. Single Supply Comparator. AD8561. FEATURES. PIN … |
| Revision | D |
| File Format / Size | PDF / 679 Kb |
| Document Language | English |

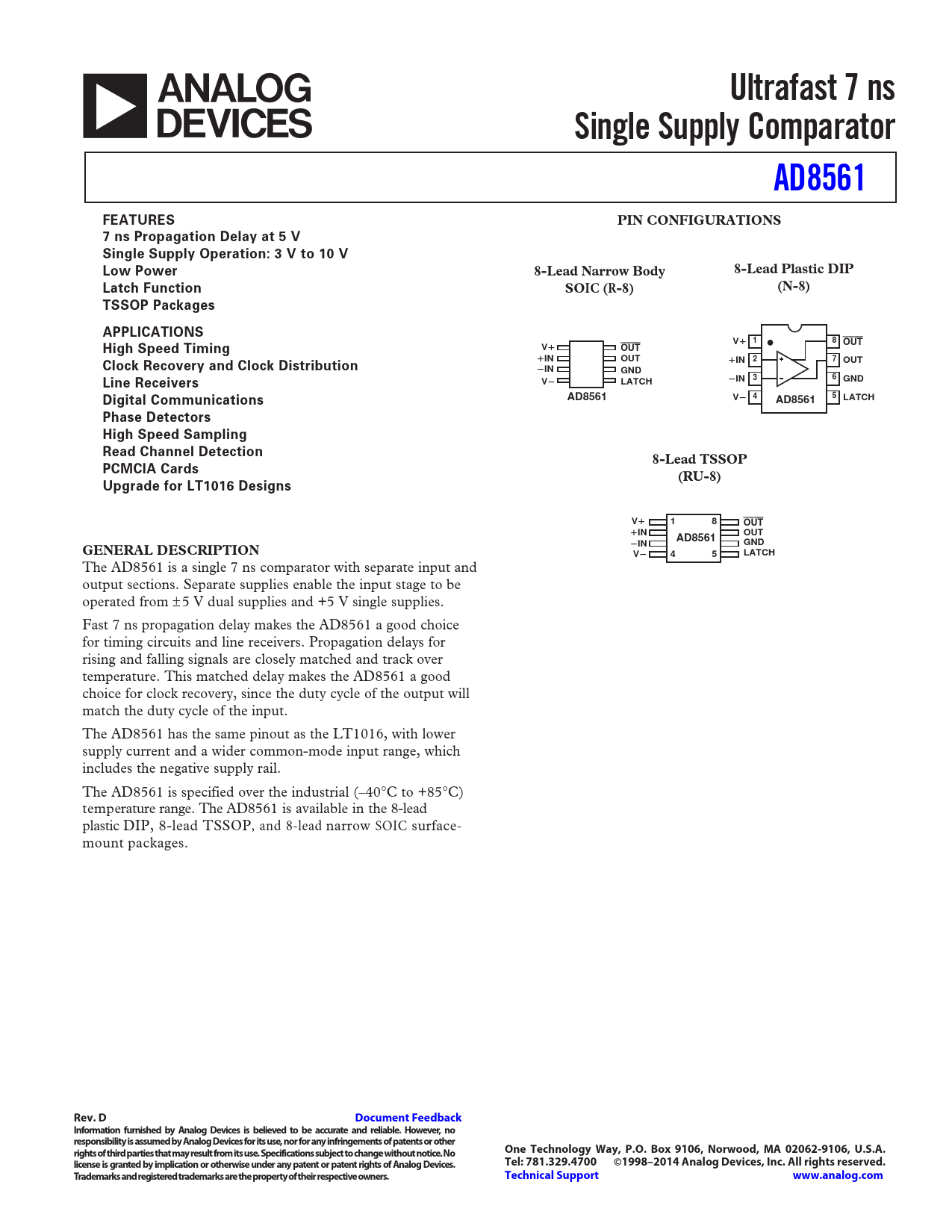

Ultrafast 7 ns. Single Supply Comparator. AD8561. FEATURES. PIN CONFIGURATIONS
Model Line for this Datasheet
Text Version of Document
a
Ultrafast 7 ns Single Supply Comparator AD8561 FEATURES PIN CONFIGURATIONS 7 ns Propagation Delay at 5 V Single Supply Operation: 3 V to 10 V Low Power 8-Lead Narrow Body 8-Lead Plastic DIP Latch Function SOIC (R-8) (N-8) TSSOP Packages APPLICATIONS V 1 8
ⴙ
OUT High Speed Timing V
ⴙ
OUT
ⴙ
IN OUT 2 7
ⴙ
IN OUT Clock Recovery and Clock Distribution
ⴚ
IN GND 3 6 Line Receivers
ⴚ
IN GND V
ⴚ
LATCH Digital Communications AD8561 V 4 5
ⴚ
LATCH AD8561 Phase Detectors High Speed Sampling Read Channel Detection 8-Lead TSSOP PCMCIA Cards (RU-8) Upgrade for LT1016 Designs V
ⴙ
1 8 OUT
ⴙ
IN OUT
ⴚ
AD8561 IN GND GENERAL DESCRIPTION V
ⴚ
4 5 LATCH
The AD8561 is a single 7 ns comparator with separate input and output sections. Separate supplies enable the input stage to be operated from ± 5 V dual supplies and +5 V single supplies. Fast 7 ns propagation delay makes the AD8561 a good choice for timing circuits and line receivers. Propagation delays for rising and falling signals are closely matched and track over temperature. This matched delay makes the AD8561 a good choice for clock recovery, since the duty cycle of the output will match the duty cycle of the input. The AD8561 has the same pinout as the LT1016, with lower supply current and a wider common-mode input range, which includes the negative supply rail. The AD8561 is specified over the industrial (–40°C to +85°C) temperature range. The AD8561 is available in the 8-lead plastic DIP, 8-lead TSSOP, and 8-lead narrow SOIC surface- mount packages.
Rev. D Document Feedback Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to change without notice. No One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Tel: 781.329.4700 ©1998–2014 Analog Devices, Inc. All rights reserved. Trademarks and registered trademarks are the property of their respective owners. Technical Support www.analog.com
Document Outline Features Applications General Description Pin Configurations Specifications Electrical Specifications Absolute Maximum Ratings Typical Performance Characteristics Applications Optimizing High Speed Performance Replacing the LT1016 Increasing Output Swing Output Loading Considerations Setup and Hold Times for Latching the Output Input Stage and Bias Currents Using Hysteresis SPICE Model Outline Dimensions Ordering Guide Revision History
