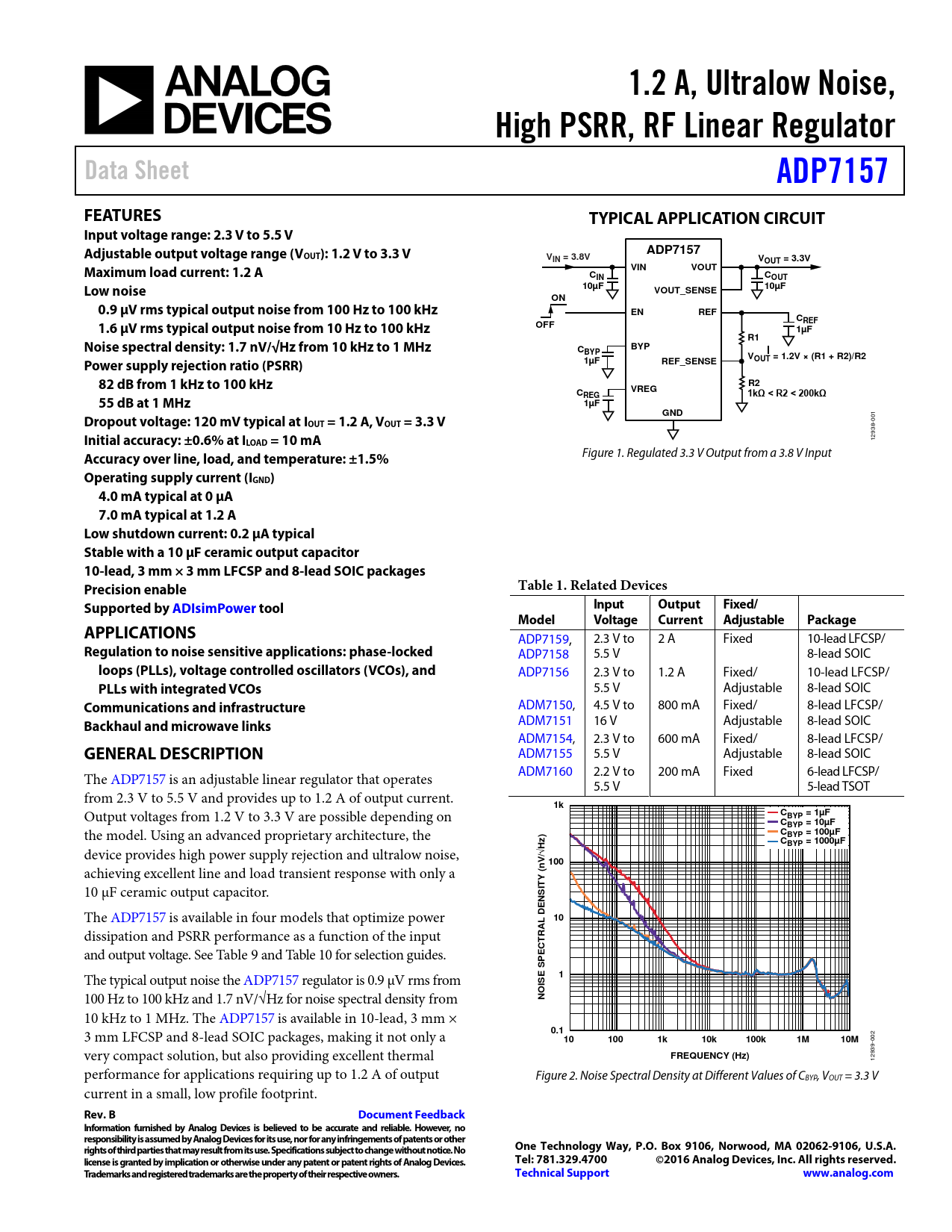

1.2 A, Ultralow Noise, High PSRR, RF Linear Regulator Data Sheet ADP7157 FEATURES TYPICAL APPLICATION CIRCUIT Input voltage range: 2.3 V to 5.5 V Adjustable output voltage range (V ADP7157 OUT): 1.2 V to 3.3 V VIN = 3.8V VOUT = 3.3V Maximum load current: 1.2 A VIN VOUT C C IN OUT Low noise 10µF 10µF VOUT_SENSE ON 0.9 µV rms typical output noise from 100 Hz to 100 kHz EN REF C 1.6 µV rms typical output noise from 10 Hz to 100 kHz REF OFF 1µF R1 Noise spectral density: 1.7 nV/√Hz from 10 kHz to 1 MHz BYP CBYP V Power supply rejection ratio (PSRR) 1µF REF_SENSE OUT = 1.2V × (R1 + R2)/R2 82 dB from 1 kHz to 100 kHz R2 VREG C 1kΩ < R2 < 200kΩ 55 dB at 1 MHz REG 1µF GND Dropout voltage: 120 mV typical at IOUT = 1.2 A, VOUT = 3.3 V
001
Initial accuracy: ±0.6% at I LOAD = 10 mA
12938-
Accuracy over line, load, and temperature: ±1.5%
Figure 1. Regulated 3.3 V Output from a 3.8 V Input
Operating supply current (IGND) 4.0 mA typical at 0 µA 7.0 mA typical at 1.2 A Low shutdown current: 0.2 μA typical Stable with a 10 µF ceramic output capacitor 10-lead, 3 mm × 3 mm LFCSP and 8-lead SOIC packages Precision enable Table 1. Related Devices Supported by ADIsimPower t ool Input Output Fixed/ Model Voltage Current Adjustable Package APPLICATIONS
ADP7159, 2.3 V to 2 A Fixed 10-lead LFCSP/
Regulation to noise sensitive applications: phase-locked
ADP7158 5.5 V 8-lead SOIC
loops (PLLs), voltage controlled oscillators (VCOs), and
ADP7156 2.3 V to 1.2 A Fixed/ 10-lead LFCSP/
PLLs with integrated VCOs
5.5 V Adjustable 8-lead SOIC
Communications and infrastructure
ADM7150, 4.5 V to 800 mA Fixed/ 8-lead LFCSP/
Backhaul and microwave links
ADM7151 16 V Adjustable 8-lead SOIC ADM7154, 2.3 V to 600 mA Fixed/ 8-lead LFCSP/
GENERAL DESCRIPTION
ADM7155 5.5 V Adjustable 8-lead SOIC The ADP7157 is an adjustable linear regulator that operates ADM7160 2.2 V to 200 mA Fixed 6-lead LFCSP/ 5.5 V 5-lead TSOT from 2.3 V to 5.5 V and provides up to 1.2 A of output current.
1k
Output voltages from 1.2 V to 3.3 V are possible depending on
CBYP = 1µF CBYP = 10µF
the model. Using an advanced proprietary architecture, the
) CBYP = 100µF CBYP = 1000µF
device provides high power supply rejection and ultralow noise,
√Hz V/ 100
achieving excellent line and load transient response with only a
(n Y
10 µF ceramic output capacitor.
IT NS
The ADP7157 is available in four models that optimize power
DE 10 L A
dissipation and PSRR performance as a function of the input
R T
and output voltage. See Table 9 and Table 10 for selection guides. The typical output noise the ADP7157 regulator is 0.9 μV rms from
1 ISE SPEC
100 Hz to 100 kHz and 1.7 nV/√Hz for noise spectral density from
O N
10 kHz to 1 MHz. The ADP7157 is available in 10-lead, 3 mm × 3 mm LFCSP and 8-lead SOIC packages, making it not only a
0.110 100 1k 10k 100k 1M 10M
002 very compact solution, but also providing excellent thermal
FREQUENCY (Hz)
12939- performance for applications requiring up to 1.2 A of output Figure 2. Noise Spectral Density at Different Values of CBYP, VOUT = 3.3 V current in a small, low profile footprint.
