Datasheet RH117 (Analog Devices) - 4
| Manufacturer | Analog Devices |
| Description | Positive Adjustable Regulator |
| Pages / Page | 4 / 4 — TYPICAL PERFORMANCE CHARACTERISTICS. Reference Voltage. Regulation. … |
| Revision | D |
| File Format / Size | PDF / 144 Kb |
| Document Language | English |

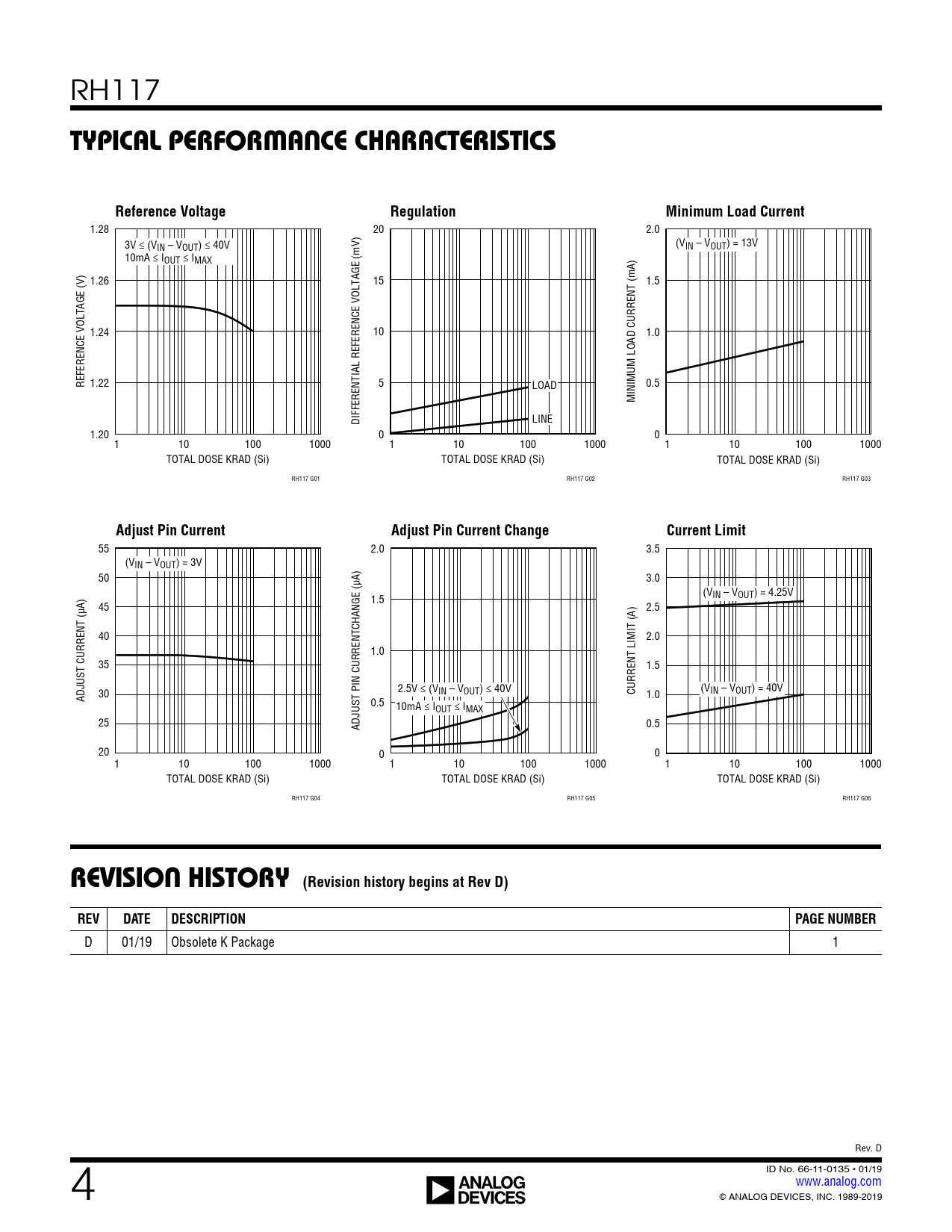

TYPICAL PERFORMANCE CHARACTERISTICS. Reference Voltage. Regulation. Minimum Load Current. Adjust Pin Current
Model Line for this Datasheet
Text Version of Document
RH117
TYPICAL PERFORMANCE CHARACTERISTICS Reference Voltage Regulation Minimum Load Current
1.28 20 2.0 3V ≤ (VIN – VOUT) ≤ 40V (VIN – VOUT) = 13V 10mA ≤ IOUT ≤ IMAX 1.26 15 1.5 1.24 10 1.0 REFERENCE VOLTAGE (V) 1.22 5 LOAD 0.5 MINIMUM LOAD CURRENT (mA) DIFFERENTIAL REFERENCE VOLTAGE (mV) LINE 1.20 0 0 1 10 100 1000 1 10 100 1000 1 10 100 1000 TOTAL DOSE KRAD (Si) TOTAL DOSE KRAD (Si) TOTAL DOSE KRAD (Si) RH117 G01 RH117 G02 RH117 G03
Adjust Pin Current Adjust Pin Current Change Current Limit
55 2.0 3.5 (VIN – VOUT) = 3V 50 3.0 (V 1.5 IN – VOUT) = 4.25V 45 2.5 40 2.0 1.0 35 1.5 2.5V ≤ (VIN – VOUT) ≤ 40V CURRENT LIMIT (A) (VIN – VOUT) = 40V ADJUST CURRENT (µA) 30 1.0 0.5 10mA ≤ IOUT ≤ IMAX 25 ADJUST PIN CURRENTCHANGE (µA) 0.5 20 0 0 1 10 100 1000 1 10 100 1000 1 10 100 1000 TOTAL DOSE KRAD (Si) TOTAL DOSE KRAD (Si) TOTAL DOSE KRAD (Si) RH117 G04 RH117 G05 RH117 G06
REVISION HISTORY (Revision history begins at Rev D) REV DATE DESCRIPTION PAGE NUMBER
D 01/19 Obsolete K Package 1 Rev. D 4 ID No. 66-11-0135 • 01/19 www.analog.com For more information www.analog.com ANALOG DEVICES, INC. 1989-2019 Document Outline Description Burn-In Circuit Absolute Maximum Ratings Package/Order information Table 1: Electrical Characteristics Total Dose Bias Circuit Table 1: Electrical characteristics Typical Performance Characteristics Revision History
