Datasheet AD8429 (Analog Devices) - 7
| Manufacturer | Analog Devices |
| Description | 1 nV/√Hz Low Noise Instrumentation Amplifier |
| Pages / Page | 20 / 7 — Data Sheet. AD8429. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. –IN. … |
| Revision | A |
| File Format / Size | PDF / 668 Kb |
| Document Language | English |

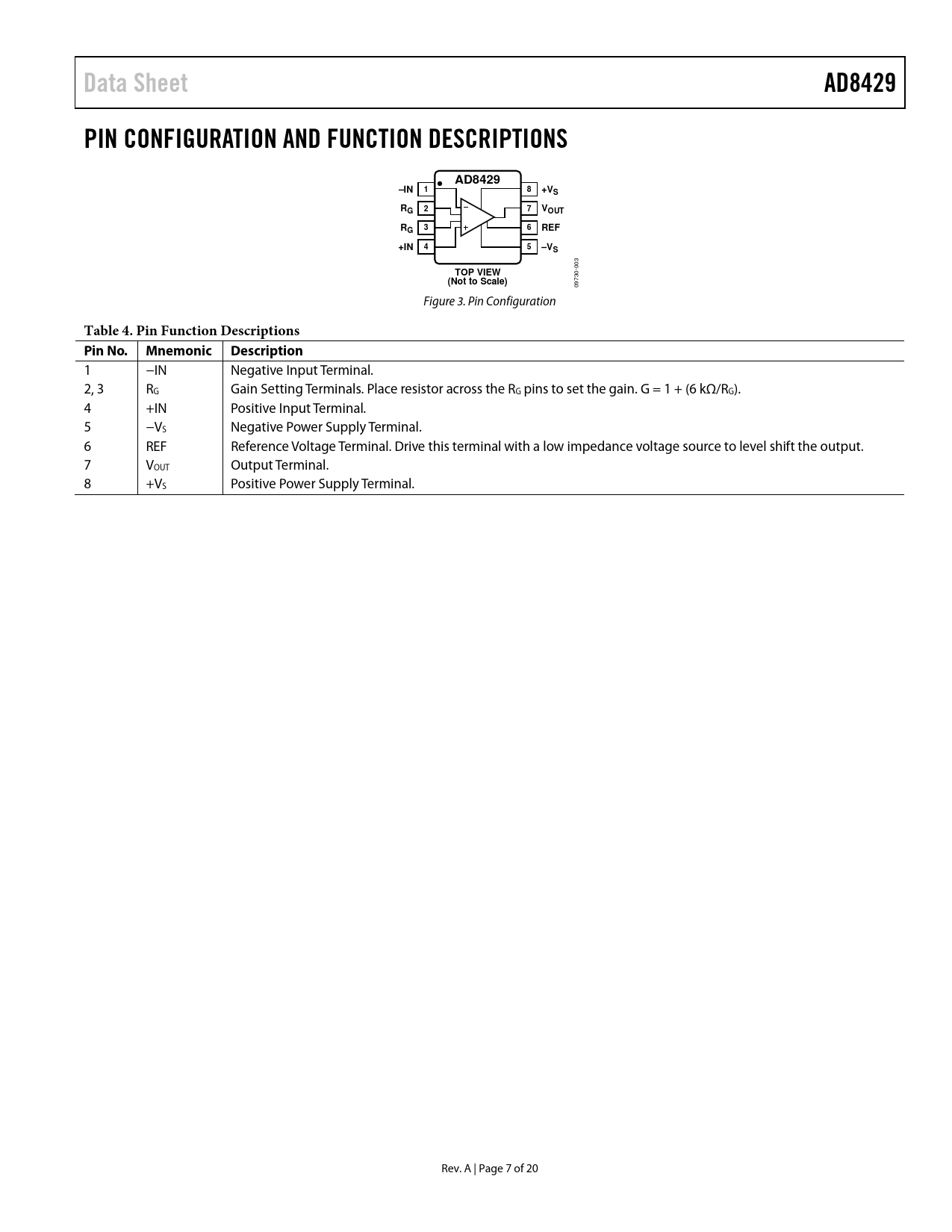

Data Sheet. AD8429. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. –IN. +VS. VOUT. REF. +IN. –VS. TOP VIEW. (Not to Scale)
Model Line for this Datasheet
Text Version of Document
Data Sheet AD8429 PIN CONFIGURATION AND FUNCTION DESCRIPTIONS AD8429 –IN 1 8 +VS RG 2 7 VOUT RG 3 6 REF +IN 4 5 –VS
003
TOP VIEW (Not to Scale)
09730- Figure 3. Pin Configuration
Table 4. Pin Function Descriptions Pin No. Mnemonic Description
1 −IN Negative Input Terminal. 2, 3 RG Gain Setting Terminals. Place resistor across the RG pins to set the gain. G = 1 + (6 kΩ/RG). 4 +IN Positive Input Terminal. 5 −VS Negative Power Supply Terminal. 6 REF Reference Voltage Terminal. Drive this terminal with a low impedance voltage source to level shift the output. 7 VOUT Output Terminal. 8 +VS Positive Power Supply Terminal. Rev. A | Page 7 of 20 Document Outline FEATURES APPLICATIONS PIN CONNECTION DIAGRAM GENERAL DESCRIPTION REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION ARCHITECTURE RG Power Dissipation REFERENCE TERMINAL INPUT VOLTAGE RANGE LAYOUT Common-Mode Rejection Ratio over Frequency Power Supplies and Grounding Reference Pin INPUT BIAS CURRENT RETURN PATH INPUT PROTECTION Input Voltages Beyond the Rails Large Differential Input Voltage at High Gain IMAX RADIO FREQUENCY INTERFERENCE (RFI) CALCULATING THE NOISE OF THE INPUT STAGE Source Resistance Noise Voltage Noise of the Instrumentation Amplifier Current Noise of the Instrumentation Amplifier Total Noise Density Calculation OUTLINE DIMENSIONS ORDERING GUIDE
