Datasheet PS508, PS509 (Diodes) - 4
| Manufacturer | Diodes |
| Description | Precision 8-Channels, Differential 4-Channels, 36V Analog Multiplexers |
| Pages / Page | 15 / 4 — PS508/PS509. Maximum Ratings. Note:. ESD Ratings. Symbol. Parameters. … |
| File Format / Size | PDF / 2.4 Mb |
| Document Language | English |

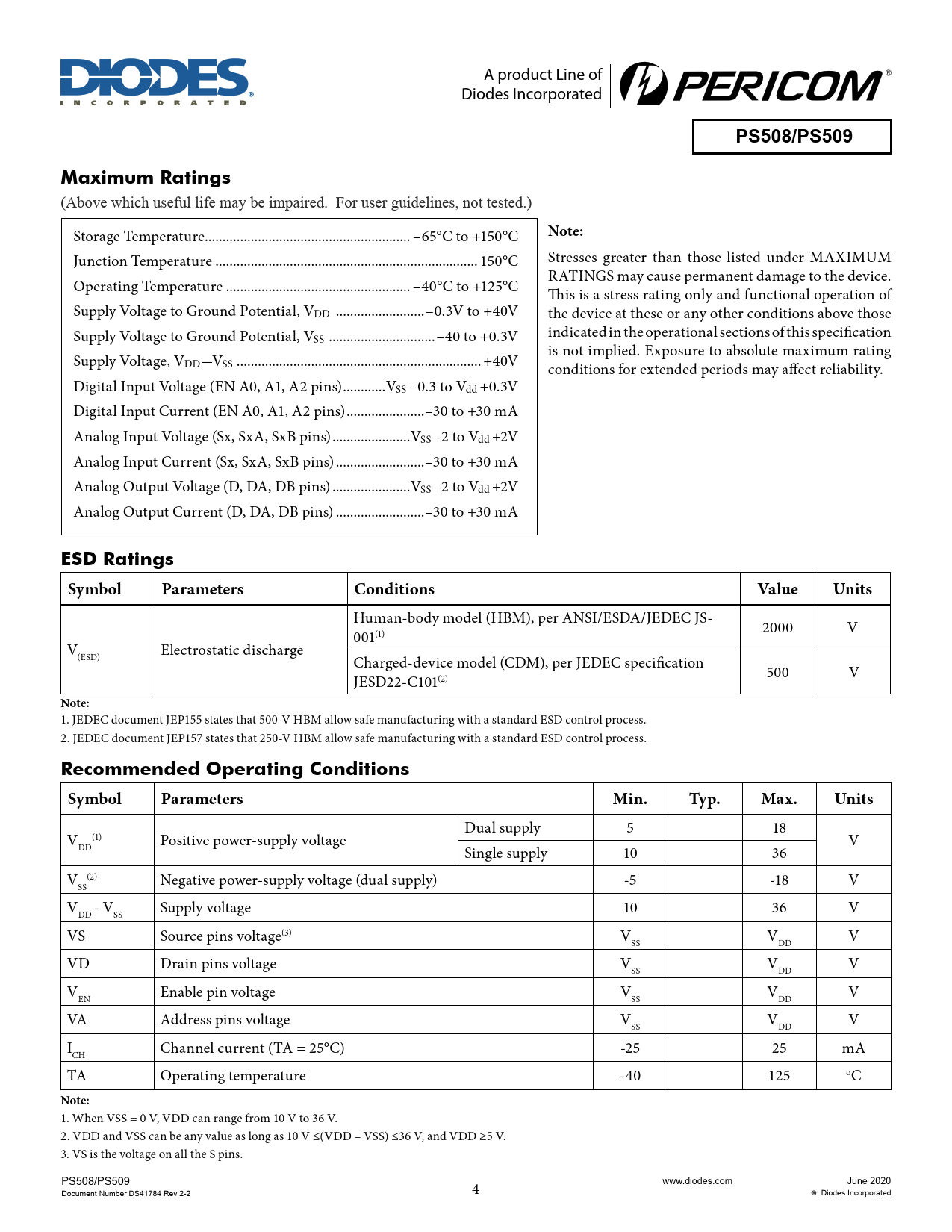

PS508/PS509. Maximum Ratings. Note:. ESD Ratings. Symbol. Parameters. Conditions. Value. Units. Recommended Operating Conditions. Min. Typ. Max
Model Line for this Datasheet
Text Version of Document
A product Line of Diodes Incorporated
PS508/PS509 Maximum Ratings
(Above which useful life may be impaired. For user guidelines, not tested.) Storage Temperature .. –65°C to +150°C
Note:
Junction Temperature .. 150°C Stresses greater than those listed under MAXIMUM RATINGS may cause permanent damage to the device. Operating Temperature .. –40°C to +125°C This is a stress rating only and functional operation of Supply Voltage to Ground Potential, VDD ...–0.3V to +40V the device at these or any other conditions above those Supply Voltage to Ground Potential, V indicated in the operational sections of this specification SS ..–40 to +0.3V is not implied. Exposure to absolute maximum rating Supply Voltage, VDD-VSS ...+40V conditions for extended periods may affect reliability. Digital Input Voltage (EN A0, A1, A2 pins) ..VSS –0.3 to Vdd +0.3V Digital Input Current (EN A0, A1, A2 pins) ..–30 to +30 mA Analog Input Voltage (Sx, SxA, SxB pins) ..VSS –2 to Vdd +2V Analog Input Current (Sx, SxA, SxB pins) ...–30 to +30 mA Analog Output Voltage (D, DA, DB pins) ..VSS –2 to Vdd +2V Analog Output Current (D, DA, DB pins) ...–30 to +30 mA
ESD Ratings Symbol Parameters Conditions Value Units
Human-body model (HBM), per ANSI/ESDA/JEDEC JS- 001 2000 V (1) V Electrostatic discharge (ESD) Charged-device model (CDM), per JEDEC specification JESD22-C101 500 V (2)
Note:
1. JEDEC document JEP155 states that 500-V HBM allow safe manufacturing with a standard ESD control process. 2. JEDEC document JEP157 states that 250-V HBM allow safe manufacturing with a standard ESD control process.
Recommended Operating Conditions Symbol Parameters Min. Typ. Max. Units
Dual supply 5 18 V (1) Positive power-supply voltage V DD Single supply 10 36 V (2) Negative power-supply voltage (dual supply) -5 -18 V SS V - V Supply voltage 10 36 V DD SS VS Source pins voltage(3) V V V SS DD VD Drain pins voltage V V V SS DD V Enable pin voltage V V V EN SS DD VA Address pins voltage V V V SS DD I Channel current (TA = 25°C) -25 25 mA CH TA Operating temperature -40 125 oC
Note:
1. When VSS = 0 V, VDD can range from 10 V to 36 V. 2. VDD and VSS can be any value as long as 10 V ≤(VDD – VSS) ≤36 V, and VDD ≥5 V. 3. VS is the voltage on all the S pins. PS508/PS509 Document Number DS41784 Rev 2-2 4 www.diodes.com June 2020 Diodes Incorporated
