Datasheet AOZ8S212UD4 (Alpha & Omega) - 2
| Manufacturer | Alpha & Omega |
| Description | 4-Channel Ultra-Low Capacitance TVS Diode Array |
| Pages / Page | 6 / 2 — AOZ8S212UD4. Ordering Information. Part Number. Ambient Temperature … |
| File Format / Size | PDF / 532 Kb |
| Document Language | English |
AOZ8S212UD4. Ordering Information. Part Number. Ambient Temperature Range. Package. Environmental. Pin Configuration. CH1. 10 NC. CH2. GND
Model Line for this Datasheet
Text Version of Document

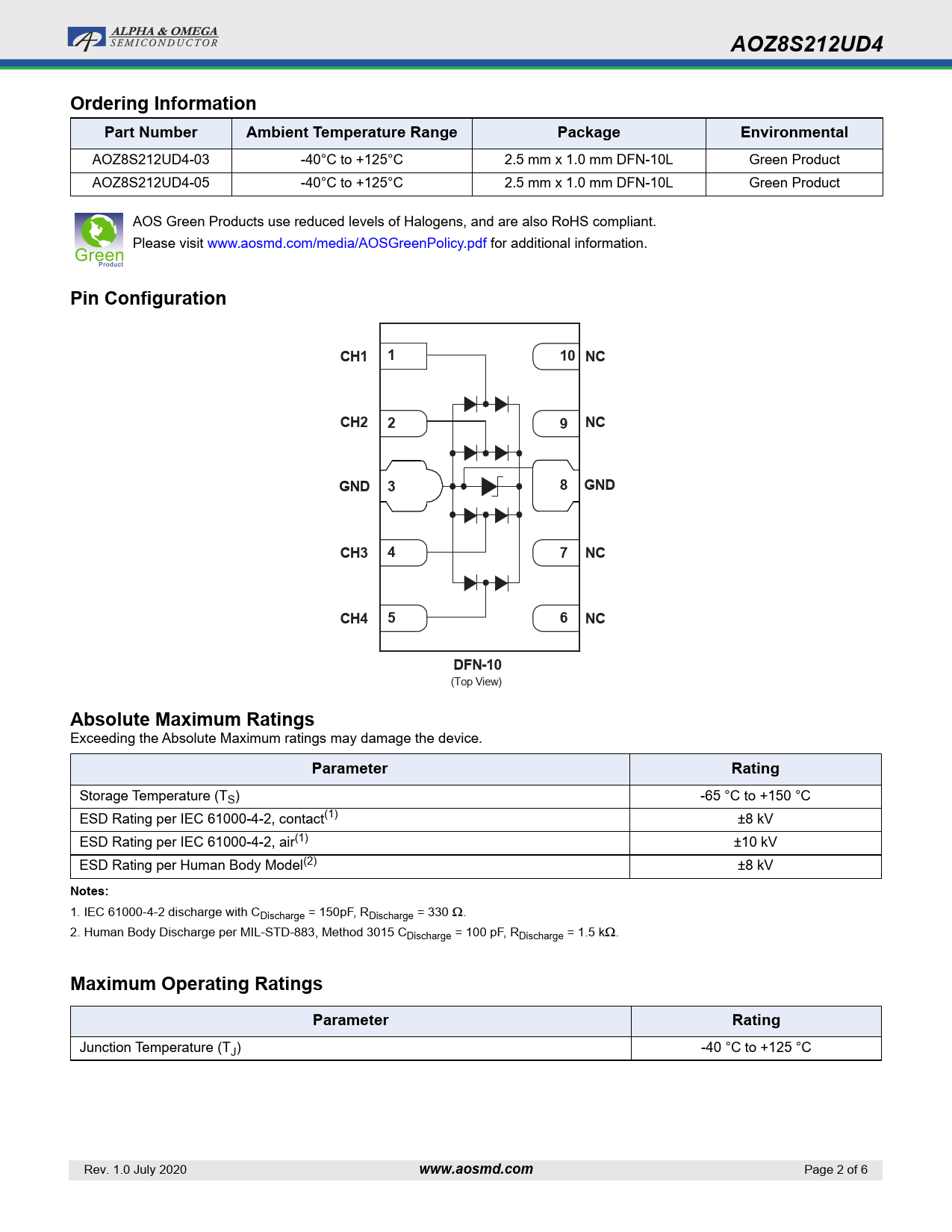

AOZ8S212UD4 Ordering Information Part Number Ambient Temperature Range Package Environmental
AOZ8S212UD4-03 -40°C to +125°C 2.5 mm x 1.0 mm DFN-10L Green Product AOZ8S212UD4-05 -40°C to +125°C 2.5 mm x 1.0 mm DFN-10L Green Product AOS Green Products use reduced levels of Halogens, and are also RoHS compliant. Please visit www.aosmd.com/media/AOSGreenPolicy.pdf for additional information.
Pin Configuration CH1 1 10 NC CH2 2 9 NC GND 3 8 GND CH3 4 7 NC CH4 5 6 NC DFN-10
(Top View)
Absolute Maximum Ratings
Exceeding the Absolute Maximum ratings may damage the device.
Parameter Rating
Storage Temperature (TS) -65 °C to +150 °C ESD Rating per IEC 61000-4-2, contact(1) ±8 kV ESD Rating per IEC 61000-4-2, air(1) ±10 kV ESD Rating per Human Body Model(2) ±8 kV
Notes:
1. IEC 61000-4-2 discharge with CDischarge = 150pF, RDischarge = 330 Ω. 2. Human Body Discharge per MIL-STD-883, Method 3015 CDischarge = 100 pF, RDischarge = 1.5 kΩ.
Maximum Operating Ratings Parameter Rating
Junction Temperature (TJ) -40 °C to +125 °C Rev. 1.0 July 2020
www.aosmd.com
Page 2 of 6
