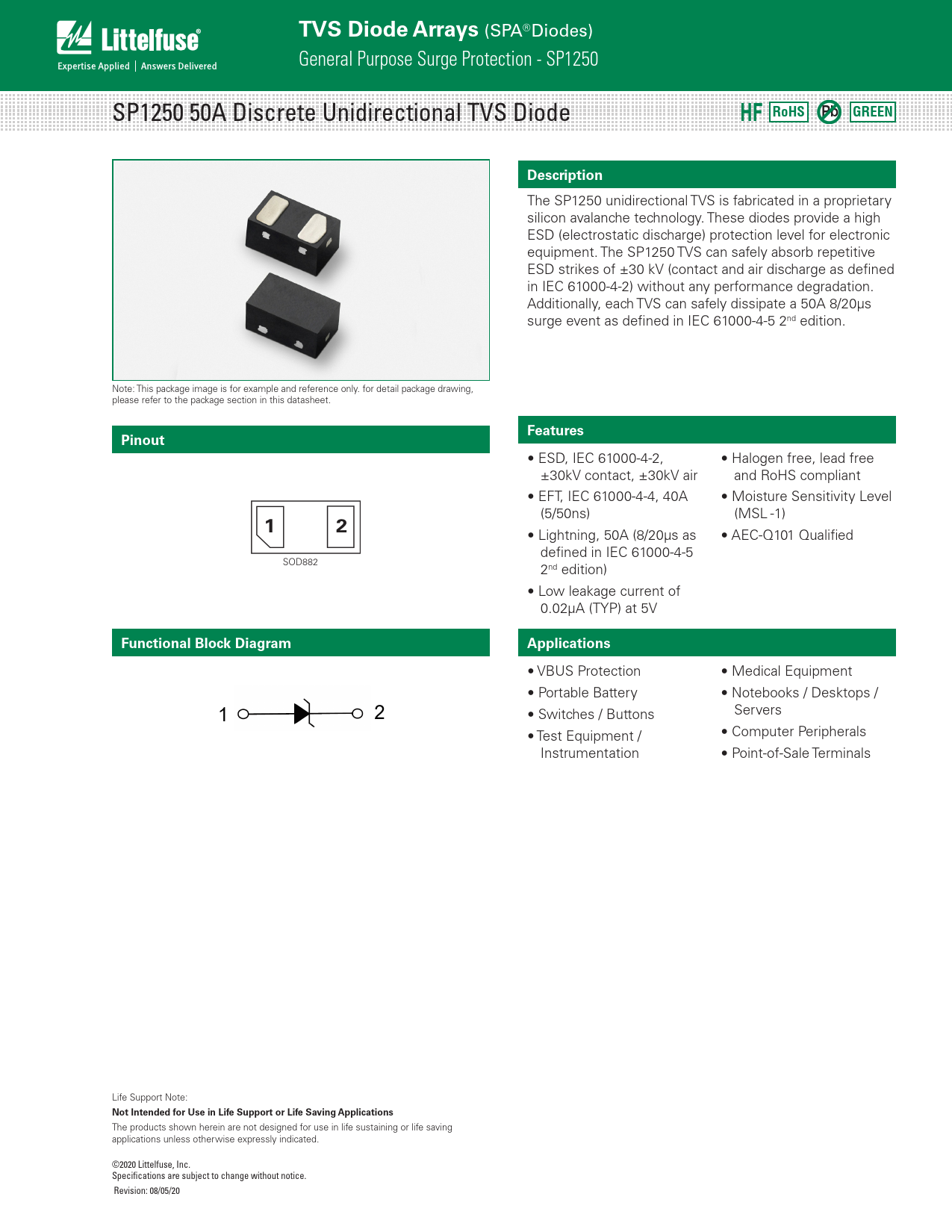

TVS Diode Arrays
(SPA ® Diodes) General Purpose Surge Protection - SP1250
RoHS Pb GREEN
SP1250 50A Discrete Unidirectional TVS Diode
Description
The SP1250 unidirectional TVS is fabricated in a proprietary silicon avalanche technology. These diodes provide a high ESD (electrostatic discharge) protection level for electronic equipment. The SP1250 TVS can safely absorb repetitive ESD strikes of ±30 kV (contact and air discharge as defined in IEC 61000-4-2) without any performance degradation. Additionally, each TVS can safely dissipate a 50A 8/20μs surge event as defined in IEC 61000-4-5 2nd edition. Note: This package image is for example and reference only. for detail package drawing, please refer to the package section in this datasheet.
Features Pinout
• ESD, IEC 61000-4-2, • Halogen free, lead free ±30kV contact, ±30kV air and RoHS compliant • EFT, IEC 61000-4-4, 40A • Moisture Sensitivity Level (5/50ns) (MSL -1)
1 2
• Lightning, 50A (8/20μs as • AEC-Q101 Qualified defined in IEC 61000-4-5 SOD882 2nd edition) • Low leakage current of 0.02μA (TYP) at 5V
Functional Block Diagram Applications
• VBUS Protection • Medical Equipment • Portable Battery • Notebooks / Desktops / 1 2 • Switches / Buttons Servers • Test Equipment / • Computer Peripherals Instrumentation • Point-of-Sale Terminals Life Support Note:
Not Intended for Use in Life Support or Life Saving Applications
The products shown herein are not designed for use in life sustaining or life saving applications unless otherwise expressly indicated. ©2020 Littelfuse, Inc. Specifications are subject to change without notice. Revision: 08/05/20
