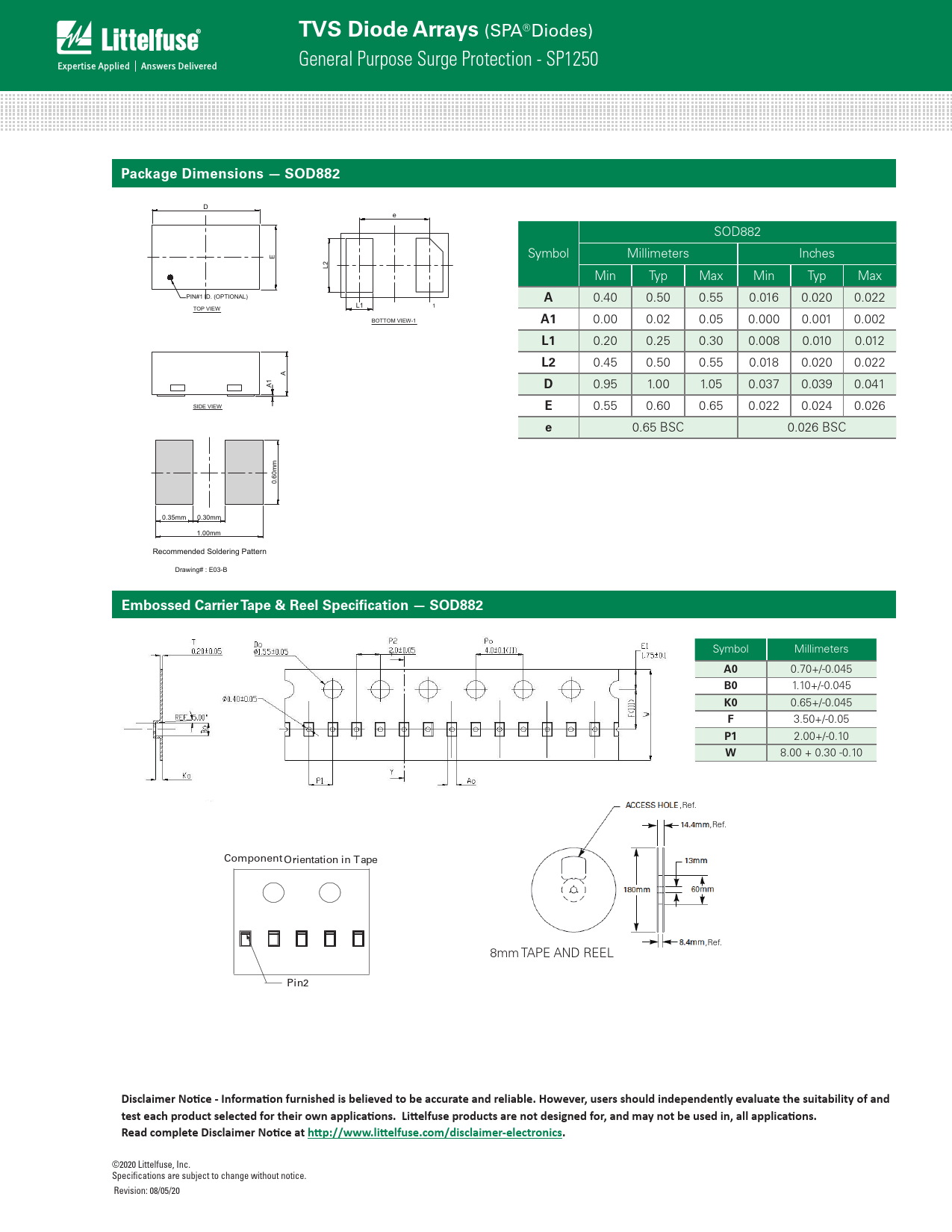

TVS Diode Arrays
(SPA ® Diodes) General Purpose Surge Protection - SP1250
Package Dimensions — SOD882
D e SOD882 E Symbol Millimeters Inches L2 Min Typ Max Min Typ Max PIN#1 ID. (OPTIONAL)
A
0.40 0.50 0.55 0.016 0.020 0.022 L1 TOP VIEW 1 BOTTOM VIEW-1
A1
0.00 0.02 0.05 0.000 0.001 0.002 e
L1
0.20 0.25 0.30 0.008 0.010 0.012
L2
0.45 0.50 0.55 0.018 0.020 0.022 A A1 L2
D
0.95 1.00 1.05 0.037 0.039 0.041 SIDE VIEW
E
0.55 0.60 0.65 0.022 0.024 0.026
e
0.65 BSC 0.026 BSC L1 1 BOTTOM VIEW-2 m 0.60m 0.35mm 0.30mm 1.00mm Recommended Soldering Pattern Drawing# : E03-B
Embossed Carrier Tape & Reel Specification — SOD882
Symbol Millimeters
A0
0.70+/-0.045
B0
1.10+/-0.045
K0
0.65+/-0.045
F
3.50+/-0.05
P1
2.00+/-0.10
W
8.00 + 0.30 -0.10 ,Ref. ,Ref. Component Orientation in Tape ,Ref. 8mm TAPE AND REEL Pin2
