| Description | 150 mA LED driver in DFN2020D-6 |
| Pages / Page | 18 / 2 — Nexperia. NCR420PAS / NCR421PAS. 150 mA LED driver in DFN2020D-6. 2. … |
| Revision | 13052020 |
| File Format / Size | PDF / 438 Kb |
| Document Language | English |
Nexperia. NCR420PAS / NCR421PAS. 150 mA LED driver in DFN2020D-6. 2. Quick reference data. Table 2. Quick reference data. Symbol
Model Line for this Datasheet
Text Version of Document
link to page 2 link to page 2

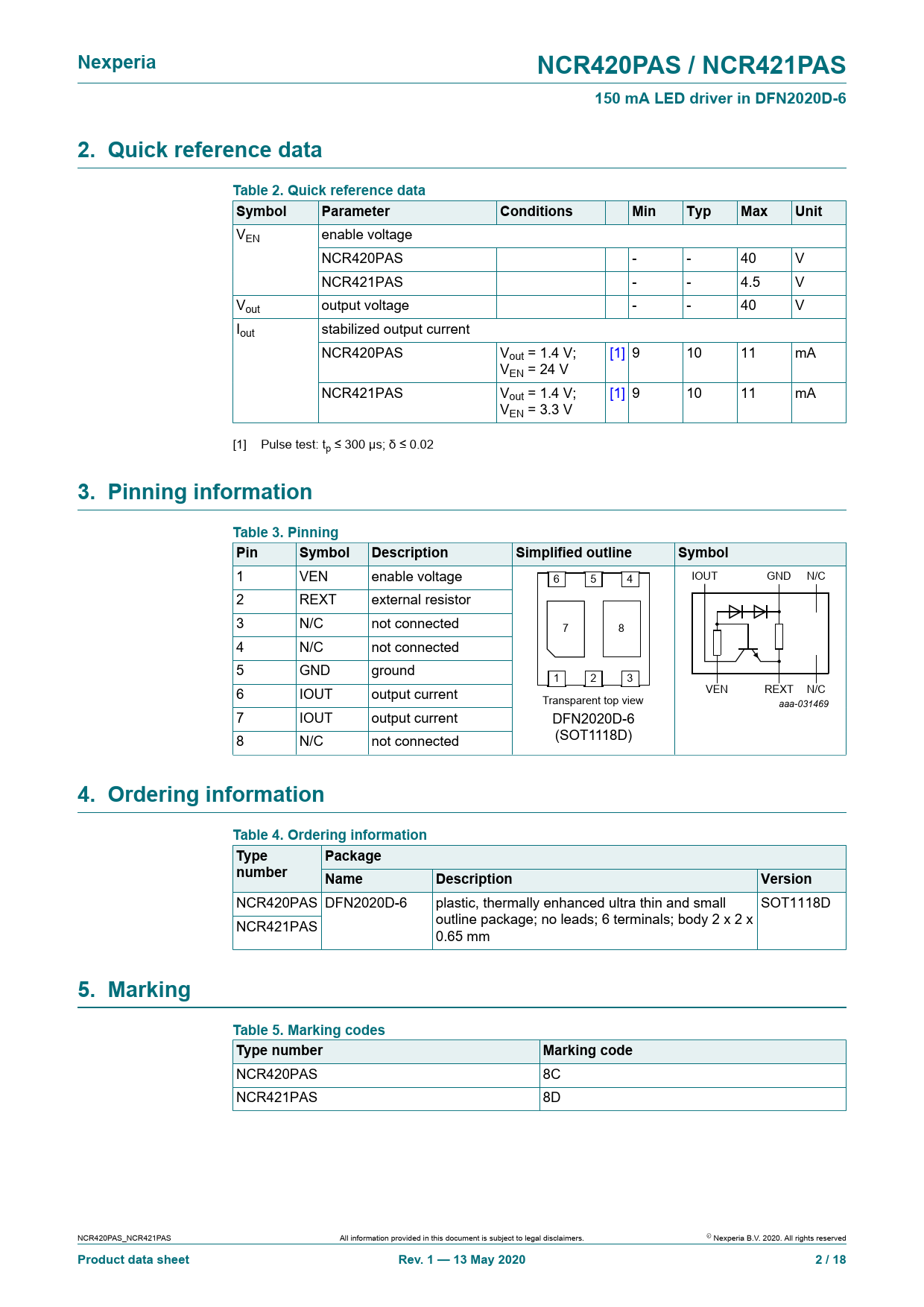

Nexperia NCR420PAS / NCR421PAS 150 mA LED driver in DFN2020D-6 2. Quick reference data Table 2. Quick reference data Symbol Parameter Conditions Min Typ Max Unit
VEN enable voltage NCR420PAS - - 40 V NCR421PAS - - 4.5 V Vout output voltage - - 40 V Iout stabilized output current NCR420PAS Vout = 1.4 V; [1] 9 10 11 mA VEN = 24 V NCR421PAS Vout = 1.4 V; [1] 9 10 11 mA VEN = 3.3 V [1] Pulse test: tp ≤ 300 µs; δ ≤ 0.02
3. Pinning information Table 3. Pinning Pin Symbol Description Simplified outline Symbol
1 VEN enable voltage 6 5 4 IOUT GND N/C 2 REXT external resistor 3 N/C not connected 7 8 4 N/C not connected 5 GND ground 1 2 3 6 IOUT output current VEN REXT N/C Transparent top view aaa-031469 7 IOUT output current DFN2020D-6 8 N/C not connected (SOT1118D)
4. Ordering information Table 4. Ordering information Type Package number Name Description Version
NCR420PAS DFN2020D-6 plastic, thermally enhanced ultra thin and small SOT1118D NCR421PAS outline package; no leads; 6 terminals; body 2 x 2 x 0.65 mm
5. Marking Table 5. Marking codes Type number Marking code
NCR420PAS 8C NCR421PAS 8D NCR420PAS_NCR421PAS All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2020. Al rights reserved
Product data sheet Rev. 1 — 13 May 2020 2 / 18
