Datasheet NCR420PAS, NCR421PAS (Nexperia) - 8
| Manufacturer | Nexperia |
| Description | 150 mA LED driver in DFN2020D-6 |
| Pages / Page | 18 / 8 — Nexperia. NCR420PAS / NCR421PAS. 150 mA LED driver in DFN2020D-6. Fig. … |
| Revision | 13052020 |
| File Format / Size | PDF / 438 Kb |
| Document Language | English |
Nexperia. NCR420PAS / NCR421PAS. 150 mA LED driver in DFN2020D-6. Fig. 10. NCR420PAS: Output current as a function of
Model Line for this Datasheet
Text Version of Document
Nexperia NCR420PAS / NCR421PAS 150 mA LED driver in DFN2020D-6
aaa-029343 0.20 aaa-029344 0.015 Iout (A) Iout (A) 0.15 (3) (3) (2) (1) 0.010 (2) (1) 0.10 0.005 0.05 0 0 0 4 8 12 0 10 20 30 Vout (V) VEN (V) VEN = 40 V; Rext = 6 Ω Vout = 2 V; Rext = open (1) Tamb = 85 °C (1) Tamb = 85 °C (2) Tamb = 25 °C (2) Tamb = 25 °C (3) Tamb = -40 °C (3) Tamb = -40 °C

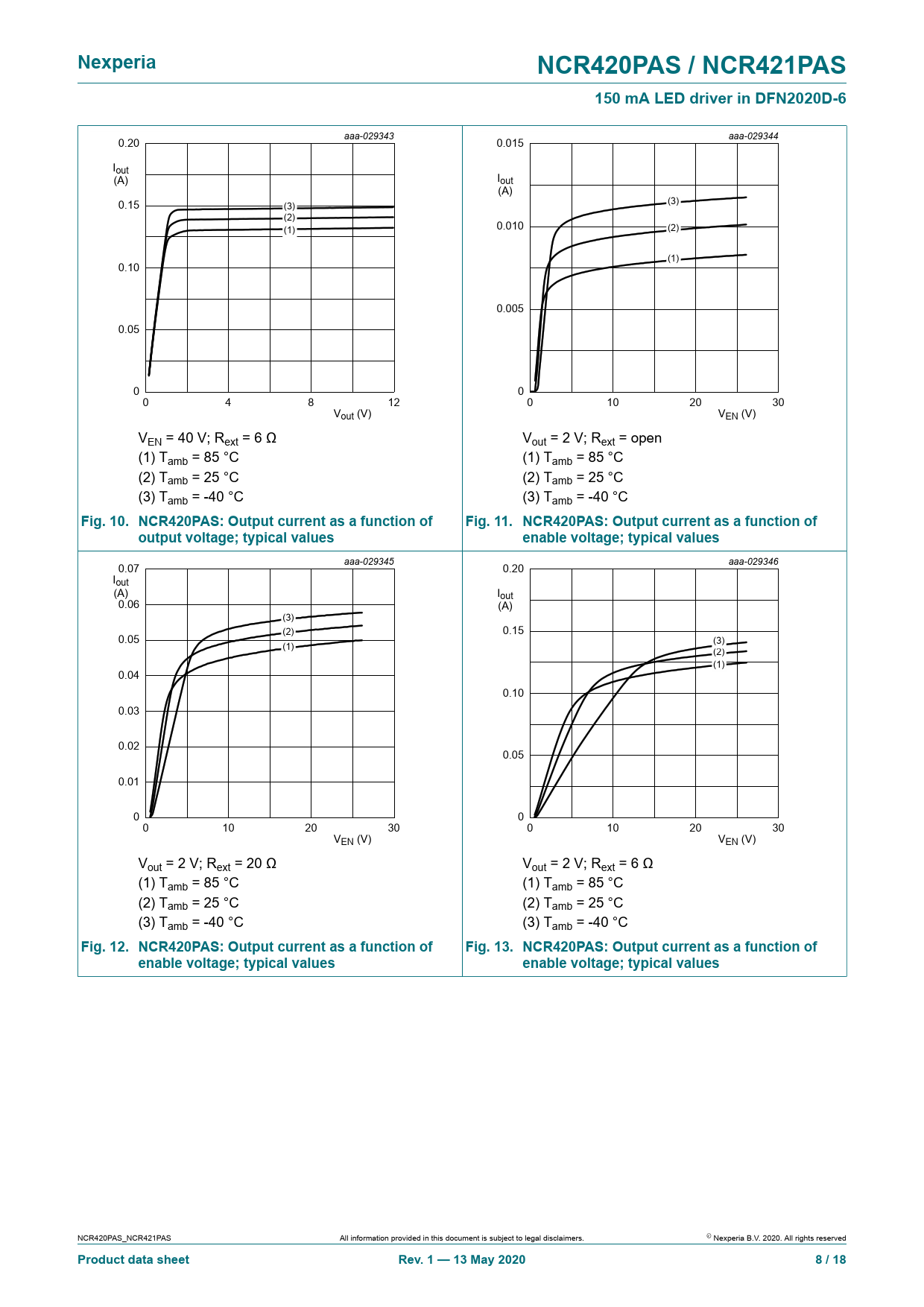

Fig. 10. NCR420PAS: Output current as a function of Fig. 11. NCR420PAS: Output current as a function of output voltage; typical values enable voltage; typical values
aaa-029345 0.07 aaa-029346 0.20 Iout (A) Iout 0.06 (A) (3) (2) 0.15 0.05 (1) (3) (2) (1) 0.04 0.10 0.03 0.02 0.05 0.01 0 0 0 10 20 30 0 10 20 30 VEN (V) VEN (V) Vout = 2 V; Rext = 20 Ω Vout = 2 V; Rext = 6 Ω (1) Tamb = 85 °C (1) Tamb = 85 °C (2) Tamb = 25 °C (2) Tamb = 25 °C (3) Tamb = -40 °C (3) Tamb = -40 °C
Fig. 12. NCR420PAS: Output current as a function of Fig. 13. NCR420PAS: Output current as a function of enable voltage; typical values enable voltage; typical values
