Datasheet CBRDFA4-100 (Central Semiconductor) - 5
| Manufacturer | Central Semiconductor |
| Description | Surface Mount Silicon 4 Amp Bridge Rectifier |
| Pages / Page | 6 / 5 — CBRDFA4-100. SURFACE MOUNT SILICON. 4 AMP BRIDGE RECTIFIER. TYPICAL … |
| File Format / Size | PDF / 765 Kb |
| Document Language | English |

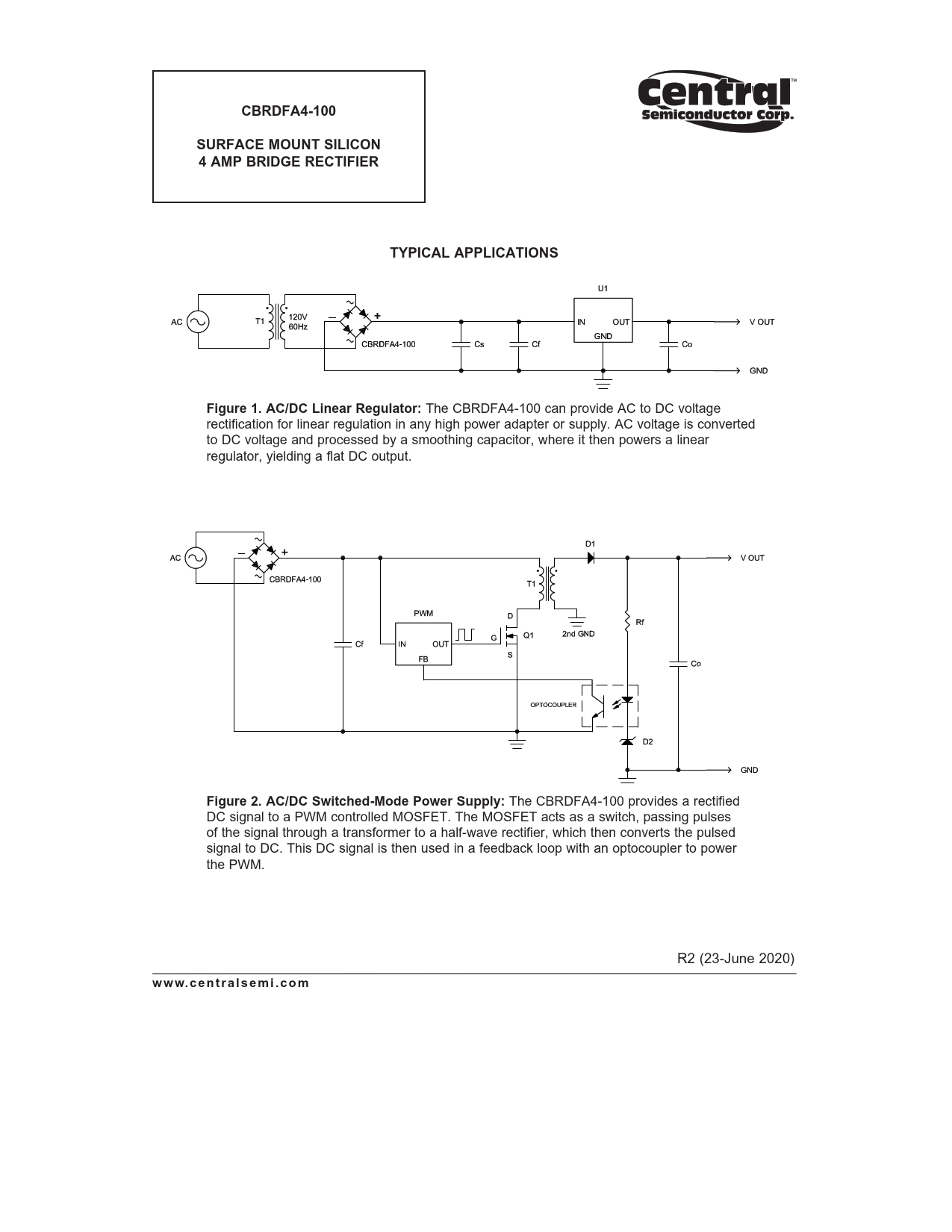

CBRDFA4-100. SURFACE MOUNT SILICON. 4 AMP BRIDGE RECTIFIER. TYPICAL APPLICATIONS. Figure 1. AC/DC Linear Regulator:
Model Line for this Datasheet
Text Version of Document
CBRDFA4-100 SURFACE MOUNT SILICON 4 AMP BRIDGE RECTIFIER TYPICAL APPLICATIONS Figure 1. AC/DC Linear Regulator:
The CBRDFA4-100 can provide AC to DC voltage rectification for linear regulation in any high power adapter or supply. AC voltage is converted to DC voltage and processed by a smoothing capacitor, where it then powers a linear regulator, yielding a flat DC output.
Figure 2. AC/DC Switched-Mode Power Supply:
The CBRDFA4-100 provides a rectified DC signal to a PWM controlled MOSFET. The MOSFET acts as a switch, passing pulses of the signal through a transformer to a half-wave rectifier, which then converts the pulsed signal to DC. This DC signal is then used in a feedback loop with an optocoupler to power the PWM. R2 (23-June 2020)
w w w. c e n t r a l s e m i . c o m
The CBRDFA4-100 can provide AC to DC voltage rectification for linear regulation in any high power adapter or supply. AC voltage is converted to DC voltage and processed by a smoothing capacitor, where it then powers a linear regulator, yielding a flat DC output.
Figure 2. AC/DC Switched-Mode Power Supply:
The CBRDFA4-100 provides a rectified DC signal to a PWM controlled MOSFET. The MOSFET acts as a switch, passing pulses of the signal through a transformer to a half-wave rectifier, which then converts the pulsed signal to DC. This DC signal is then used in a feedback loop with an optocoupler to power the PWM. R2 (23-June 2020)
