BLF989E; BLF989ES UHF power LDMOS transistor Table 9. List of components
…continued See Figure 1 for component layout.
Component Description Value Remarks
R24 chip resistor 18 SMD 1206 R27 chip resistor 2x510 SMD 1206 R28 chip resistor 2x180 SMD 1206 [1] American Technical Ceramics type 800B or capacitor of same quality.

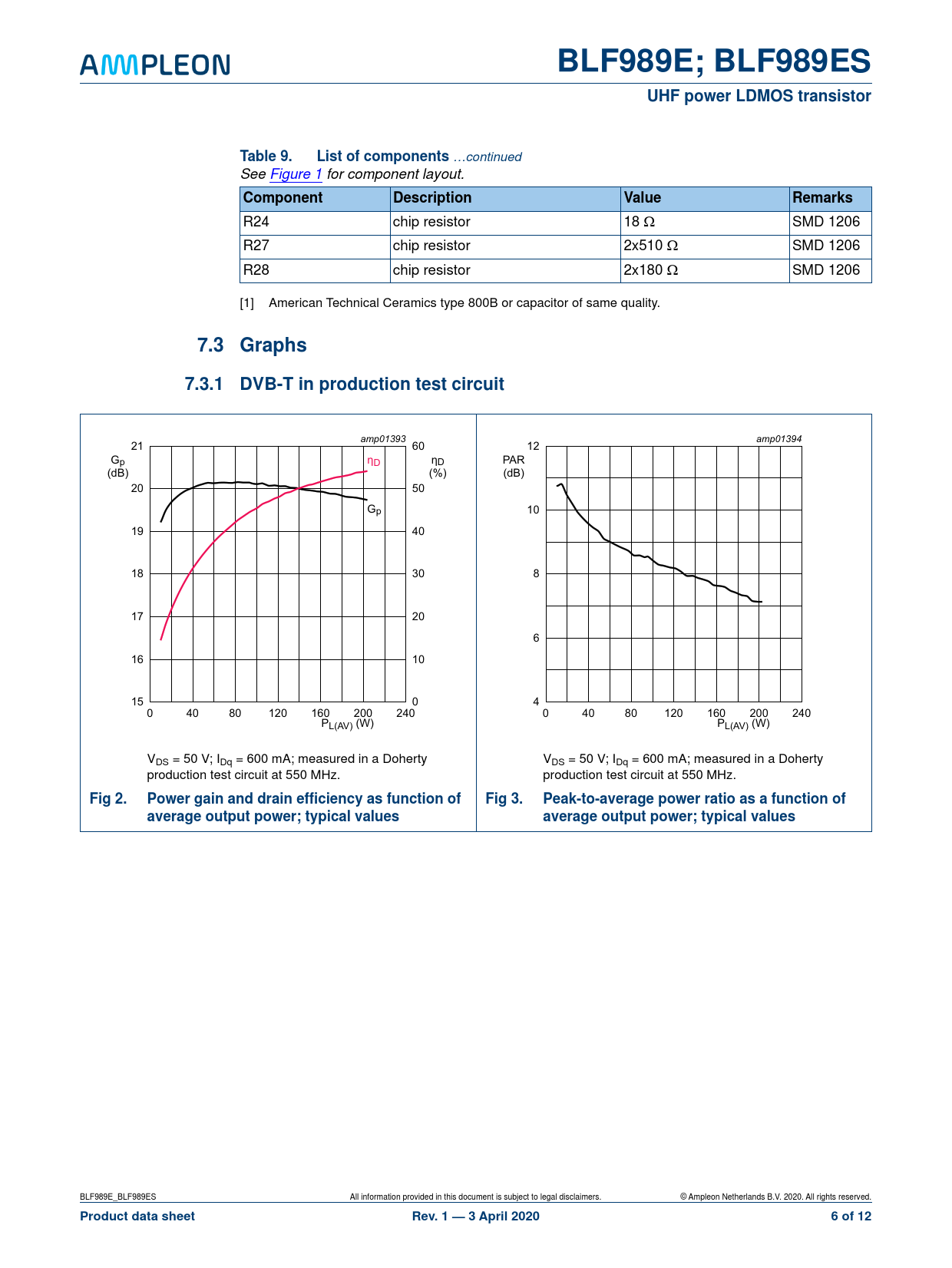

7.3 Graphs 7.3.1 DVB-T in production test circuit
amp01393 amp01394 21 60 12 Gp G η η D D PA P R A PA (dB) (dB) (dB) (%) (%) (%) (dB) (dB) (dB) 20 50 Gp G 10 19 40 18 30 8 17 20 6 16 10 15 0 4 0 40 80 120 160 200 240 0 40 80 120 160 200 240 PL(AV) (W) PL(AV) (W) VDS = 50 V; IDq = 600 mA; measured in a Doherty VDS = 50 V; IDq = 600 mA; measured in a Doherty production test circuit at 550 MHz. production test circuit at 550 MHz.
Fig 2. Power gain and drain efficiency as function of Fig 3. Peak-to-average power ratio as a function of average output power; typical values average output power; typical values
