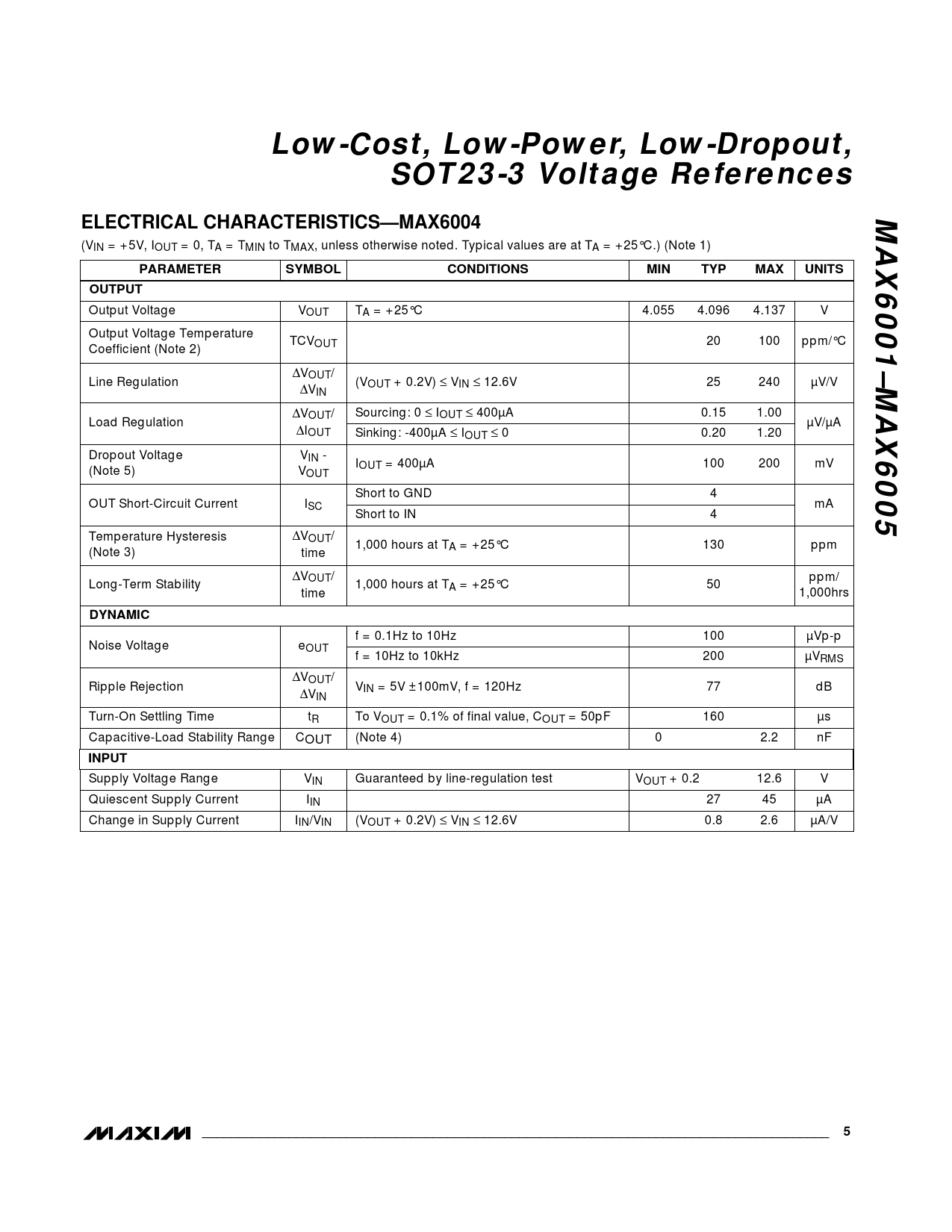

Low-Cost, Low-Power, Low-Dropout,. SOT23-3 Voltage References. MAX6001–MAX6005. ELECTRICAL CHARACTERISTICS—MAX6004. PARAMETER
Model Line for this Datasheet
Text Version of Document
Low-Cost, Low-Power, Low-Dropout, SOT23-3 Voltage References MAX6001–MAX6005 ELECTRICAL CHARACTERISTICS—MAX6004
(VIN = +5V, IOUT = 0, TA = TMIN to TMAX, unless otherwise noted. Typical values are at TA = +25°C.) (Note 1)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS
OUTPUT
OUTPUT
Output Voltage VOUT TA = +25°C 4.055 4.096 4.137 V Output Voltage Temperature TCVOUT 20 100 ppm/°C Coefficient (Note 2) ∆VOUT/ Line Regulation (VOUT + 0.2V) ≤ VIN ≤ 12.6V 25 240 µV/V ∆VIN ∆V Sourcing: 0 OUT/ ≤ IOUT ≤ 400µA 0.15 1.00 Load Regulation µV/µA ∆IOUT Sinking: -400µA ≤ IOUT ≤ 0 0.20 1.20 Dropout Voltage VIN - IOUT = 400µA 100 200 mV (Note 5) VOUT Short to GND 4 OUT Short-Circuit Current ISC mA Short to IN 4 Temperature Hysteresis ∆VOUT/ 1,000 hours at TA = +25°C 130 ppm (Note 3) time ∆VOUT/ ppm/ Long-Term Stability 1,000 hours at TA = +25°C 50 time 1,000hrs
DYNAMIC
f = 0.1Hz to 10Hz 100 µVp-p Noise Voltage eOUT f = 10Hz to 10kHz 200 µVRMS ∆VOUT/ Ripple Rejection VIN = 5V ±100mV, f = 120Hz 77 dB ∆VIN Turn-On Settling Time tR To VOUT = 0.1% of final value, COUT = 50pF 160 µs Capacitive-Load Stability Range COUT (Note 4) 0 2.2 nF INPUT Supply Voltage Range VIN Guaranteed by line-regulation test VOUT + 0.2 12.6 V Quiescent Supply Current IIN 27 45 µA Change in Supply Current IIN/VIN (VOUT + 0.2V) ≤ VIN ≤ 12.6V 0.8 2.6 µA/V
_______________________________________________________________________________________ 5
(VIN = +5V, IOUT = 0, TA = TMIN to TMAX, unless otherwise noted. Typical values are at TA = +25°C.) (Note 1)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS
OUTPUT
OUTPUT
Output Voltage VOUT TA = +25°C 4.055 4.096 4.137 V Output Voltage Temperature TCVOUT 20 100 ppm/°C Coefficient (Note 2) ∆VOUT/ Line Regulation (VOUT + 0.2V) ≤ VIN ≤ 12.6V 25 240 µV/V ∆VIN ∆V Sourcing: 0 OUT/ ≤ IOUT ≤ 400µA 0.15 1.00 Load Regulation µV/µA ∆IOUT Sinking: -400µA ≤ IOUT ≤ 0 0.20 1.20 Dropout Voltage VIN - IOUT = 400µA 100 200 mV (Note 5) VOUT Short to GND 4 OUT Short-Circuit Current ISC mA Short to IN 4 Temperature Hysteresis ∆VOUT/ 1,000 hours at TA = +25°C 130 ppm (Note 3) time ∆VOUT/ ppm/ Long-Term Stability 1,000 hours at TA = +25°C 50 time 1,000hrs
DYNAMIC
f = 0.1Hz to 10Hz 100 µVp-p Noise Voltage eOUT f = 10Hz to 10kHz 200 µVRMS ∆VOUT/ Ripple Rejection VIN = 5V ±100mV, f = 120Hz 77 dB ∆VIN Turn-On Settling Time tR To VOUT = 0.1% of final value, COUT = 50pF 160 µs Capacitive-Load Stability Range COUT (Note 4) 0 2.2 nF INPUT Supply Voltage Range VIN Guaranteed by line-regulation test VOUT + 0.2 12.6 V Quiescent Supply Current IIN 27 45 µA Change in Supply Current IIN/VIN (VOUT + 0.2V) ≤ VIN ≤ 12.6V 0.8 2.6 µA/V
_______________________________________________________________________________________ 5
